Parameters Tab

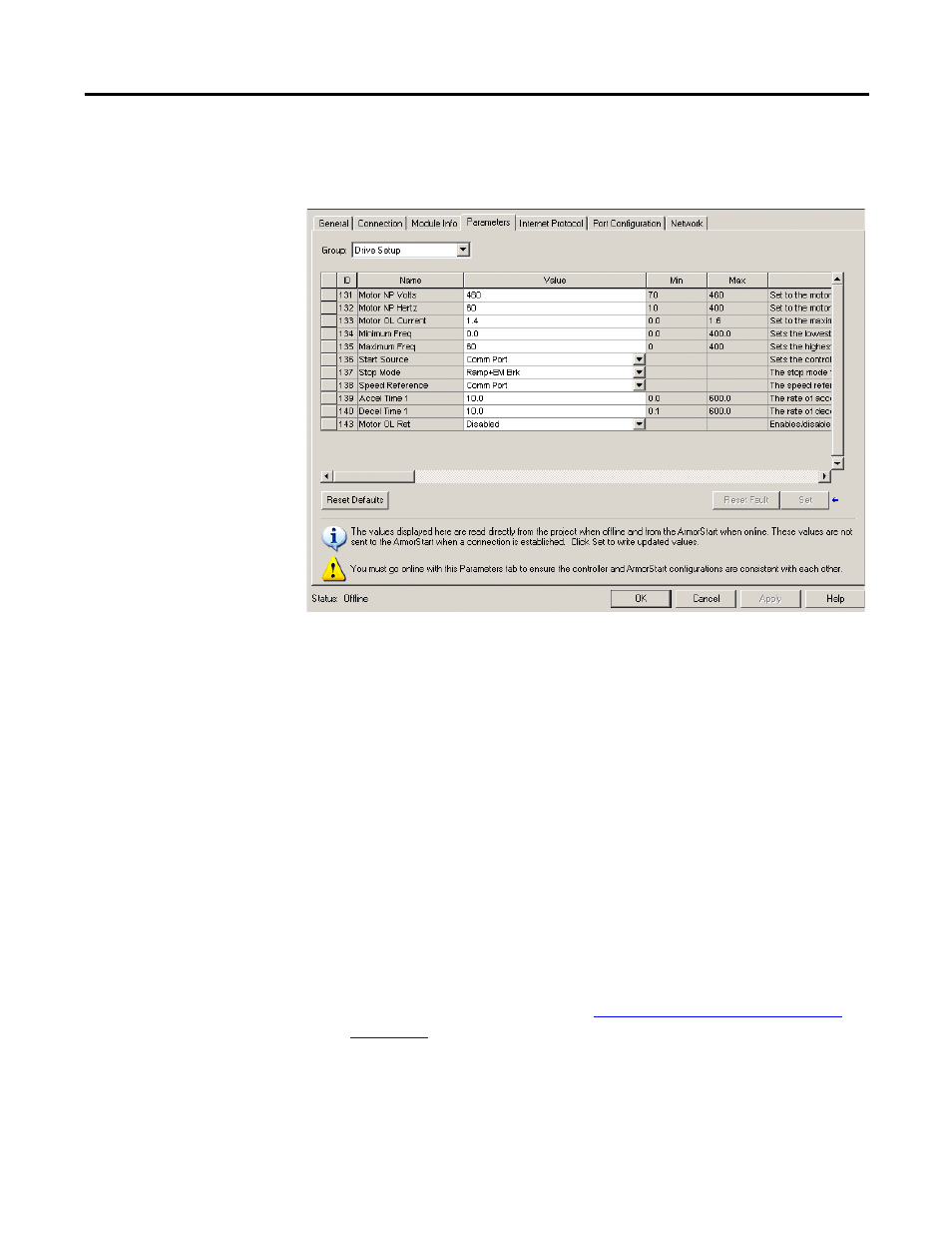

Click on the Parameters tab to display the following:

The parameters are divided into groups based on the type of ArmorStart. By
clicking in the Group drop down menu you can choose which parameter group is
displayed. When the Parameters tab is selected, the tab defaults to the Drive
Setup

(Bulletin 284E) or Starter Setup (Bulletin 280E) groups depending on

the ArmorStart. These Setup groups are the minimum required parameters to get
the ArmorStart running.

After this parameter group has been set, the next time that the Parameters tab is
opened, all of the parameters will be shown and the tab will no longer default to
the setup groups.

Online Connection

Now that the offline connection settings have been set, connect to the
ArmorStart and review the last five AOP tabs.

Note:

If you are using a Cat. No. 1756-ENBT EtherNet module to communicate with

the PLC, verify that you have updated the module’s firmware to Revision 6.001 or
later. The latest firmware can be found at

http://support.rockwellautomation.com/

controlflash/

.
