Rockwell Automation 284E ArmorStart EtherNet IP Communications and Control Programming Manual User Manual
Page 51
Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
51
ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual Chapter 5

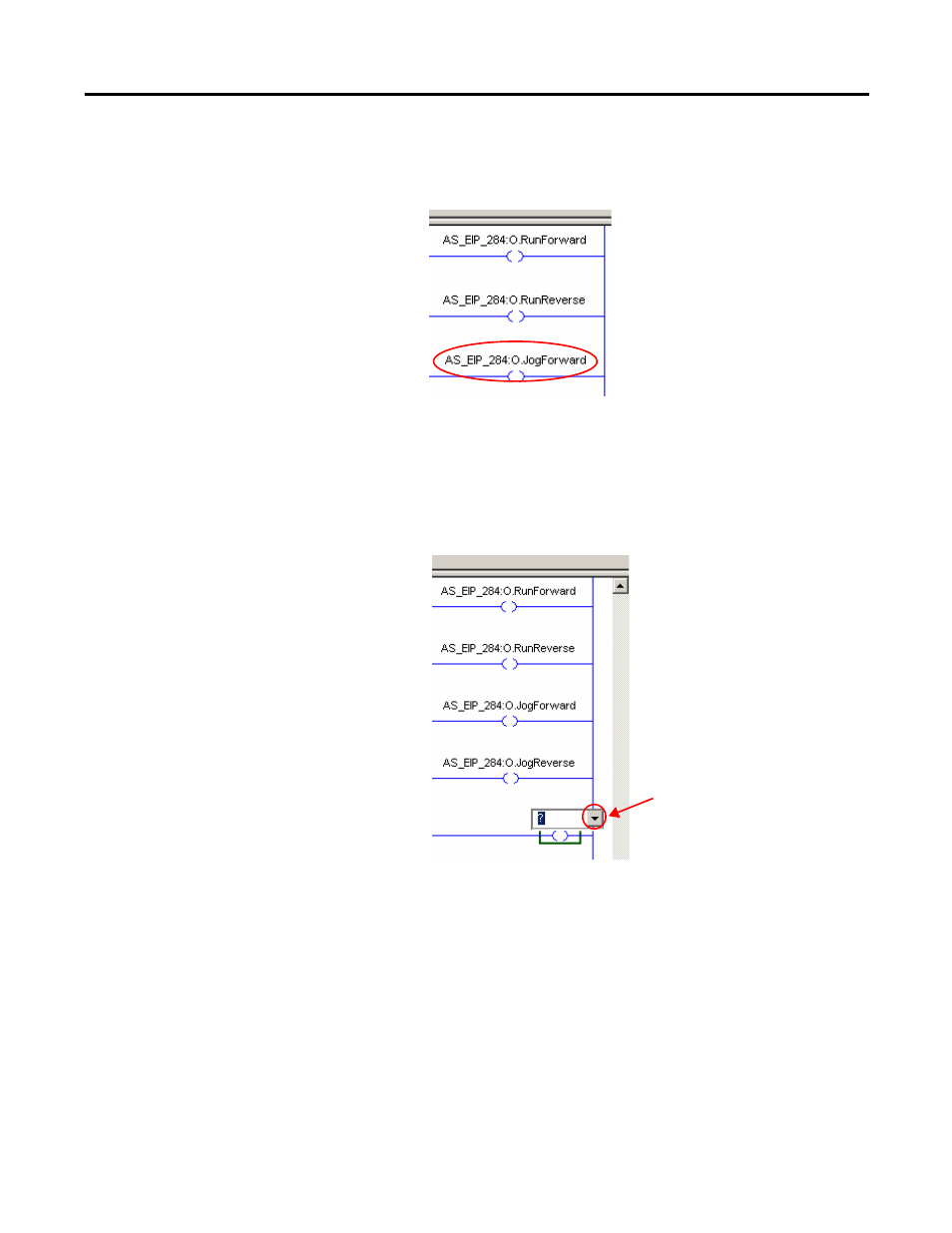

iii. The output of Rung 2 is now set to be the JogForward command
that causes the load to jog in the forward direction. The ladder logic
element should look like the figure below.
d. Select the signal light as the output ladder element for Rung 4. Since the
signal light is connected to Output A of the ArmorStart unit, you are
actually selecting the OutA tag.
i. Double click on the question mark over the output ladder element
on Rung 4 and click on the drop-down arrow to show the available
tag options for this element.
