Rockwell Automation 284E ArmorStart EtherNet IP Communications and Control Programming Manual User Manual
Page 52
52
Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Chapter 5 ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual

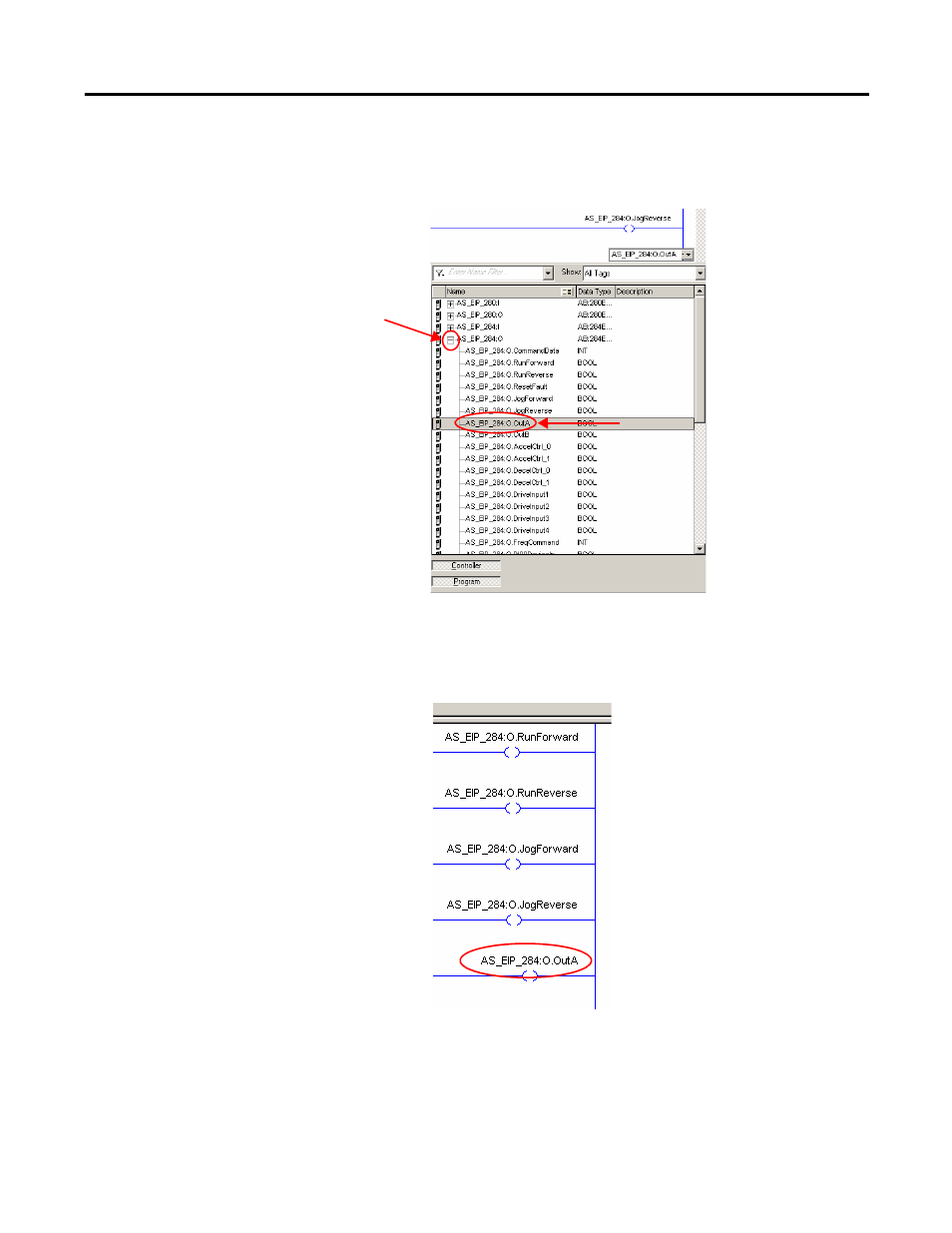

ii. Expand the options for the AS_EIP_284:O by clicking on the plus
next to AS_EIP_284:O. Select AS_EIP_284:O.OutA tag name and
hit Enter.
iii. The output of Rung 4 is now set to be Output A that turns on the
signal light. The ladder logic element should look like the figure
below.
