Page 34
34
Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Chapter 4 ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual

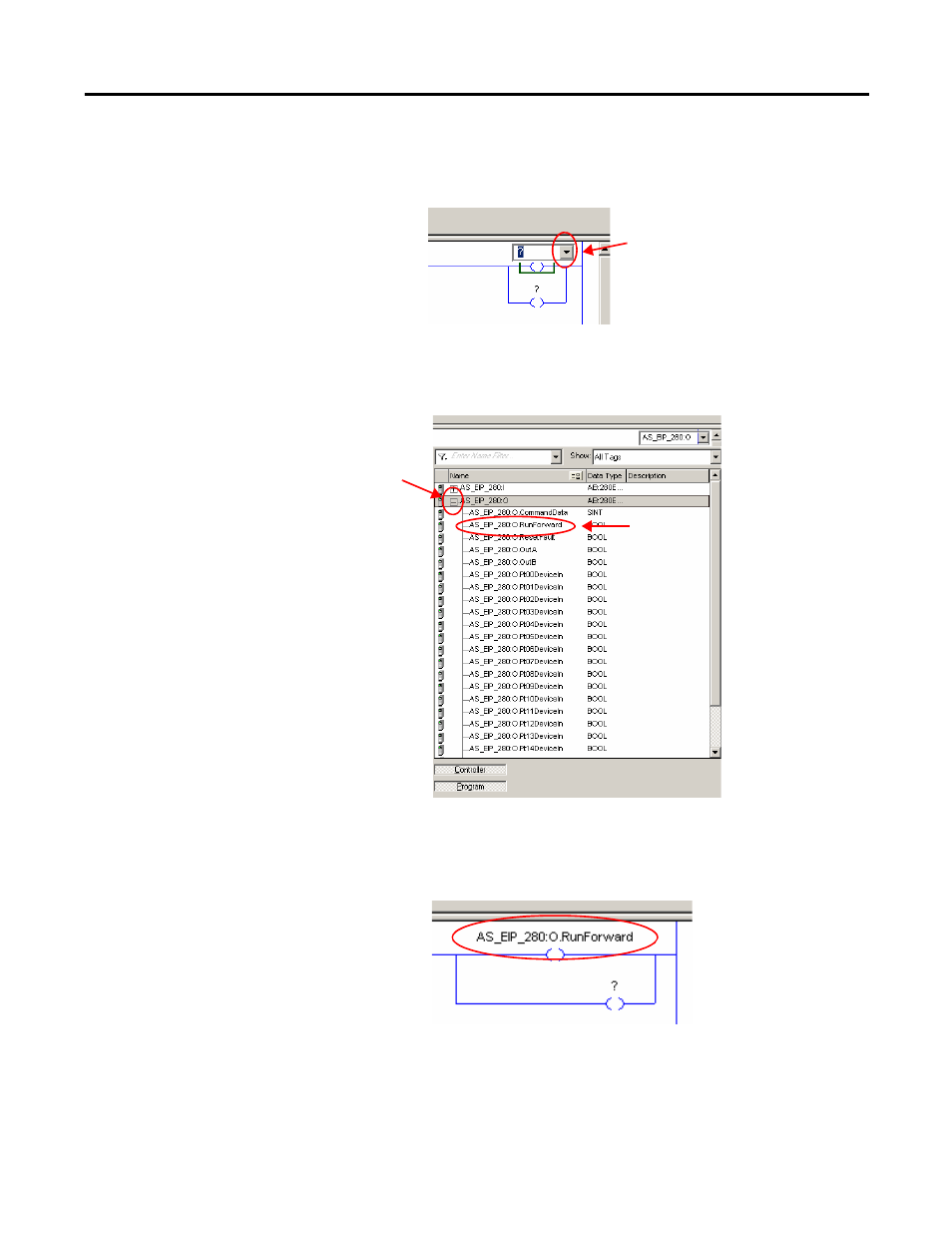

i. Double click on the question mark over one of the output ladder
elements and click on the drop-down arrow to show the available tag
options for this element.
ii. Expand the options for the AS_EIP_280:O by clicking on the plus
next to AS_EIP_280:O. Select AS_EIP_280:O.RunForward tag
name and hit Enter.
iii. You have now set one of the outputs to be the Run Forward
command that energizes the output of the ArmorStart Bulletin
280E. The ladder logic element should look like the figure below.
