c. Select the signal light as the other output ladder element that turns on
when you wave your hand in front of the photo sensor. Since the signal
light is connected to Output A of the ArmorStart unit, you are actually
selecting the OutA tag.

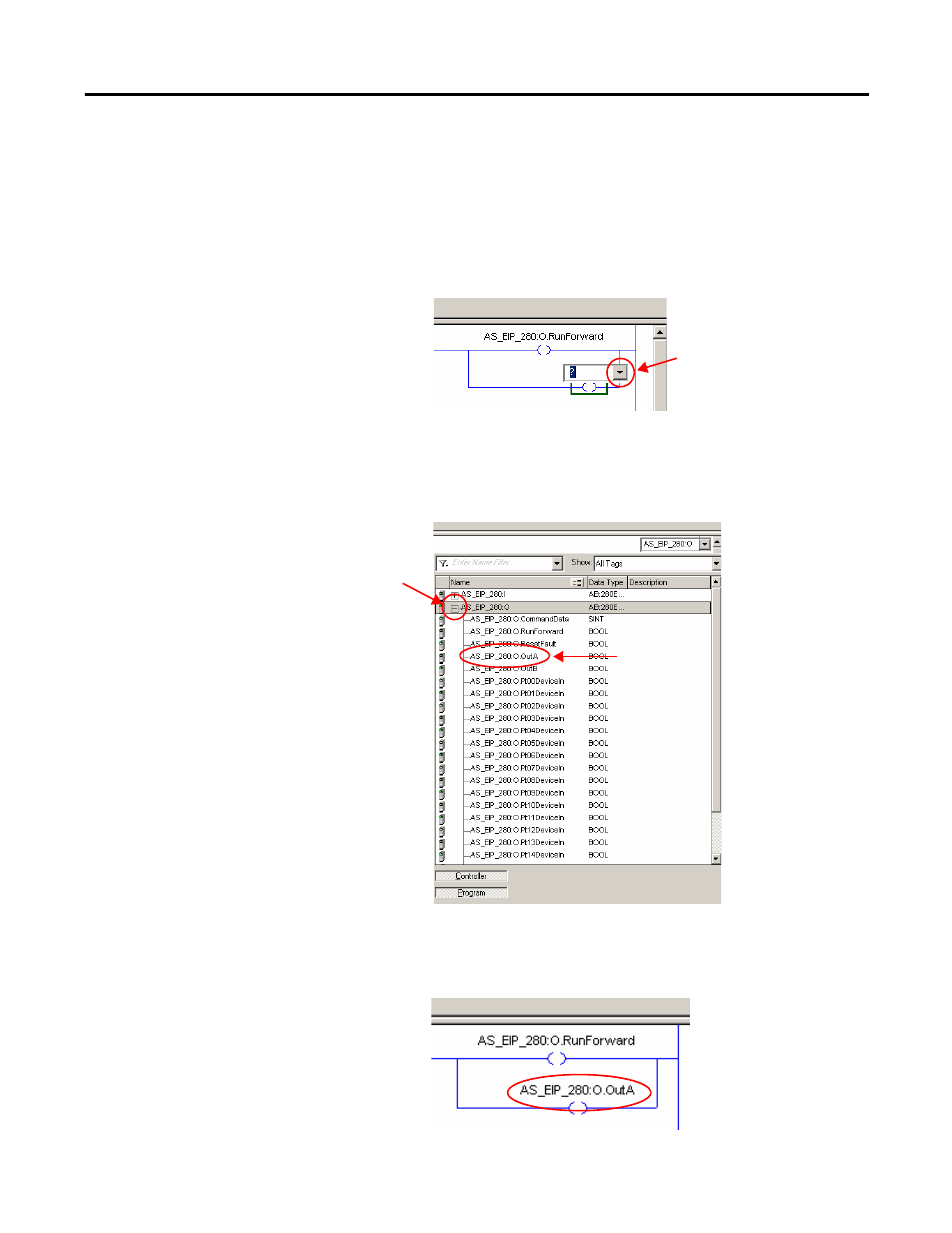

i. Double click on the question mark over the second of the output
ladder elements and click on the drop-down arrow to show the
available tag options for this element.
ii. Expand the options for the AS_EIP_280:O by clicking on the plus
next to AS_EIP_280:O. Select AS_EIP_280:O.OutA tag name
and hit Enter.
iii. You have now set the second of the outputs to be Output A that
turns on the signal light. The ladder logic element should now look
like the figure below.
