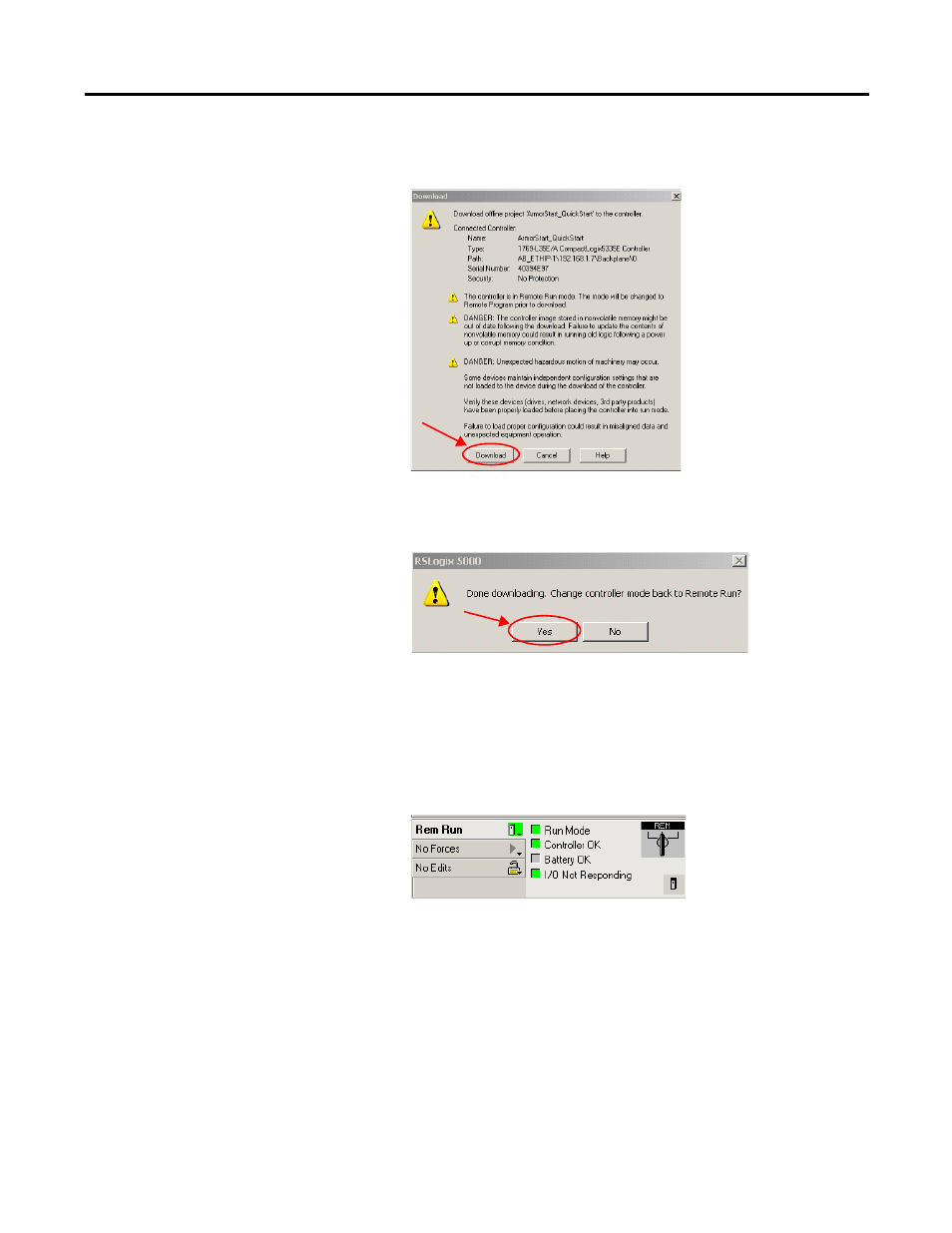

c. Another screen will pop up confirming that you want to download the
program to the controller. Click on Download once again.
d. A final screen may appear asking if you want to change the controller
back to Remote Run. Click Yes.
e. The upper left hand corner of your screen should now match the figure
below. The controller is in remote run mode. The I/O Not
Responding
indicator should be blinking green since the
RSLogix 5000 program was written to accommodate both the Bulletin
280E and the Bulletin 284E, but you are only connected to one of these
ArmorStart bulletin numbers.
8. You have just added a few different tag names from different elements of
the system, downloaded the ladder logic program to the controller, and
now have the ArmorStart Bulletin 280E unit up and running. Wave your
hand in front of the photo sensor, you should see the signal light turn on
and also hear the output contactor close. Move your hand away from the
sensor, the light should turn back off and you should hear the output
contactor de-energize.
