40 Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Chapter 4 ArmorStart ® EtherNet/IP ™ Communications & Control Programming Manual
b. Parameters 30 and 31 set the Off-to-On and On-to-Off delay times.
The unit for these two parameters is milliseconds (ms). The Off-to-On
delay is the amount of time an input must be present before being
reported as On. Similarly, the On-to-Off delay is the amount of time an
input must be absent before being reported as Off. These two
parameters are used to help smooth bouncing Input signals. Set both
parameters 30 and 31 to 2000 ms.
c. Parameter 106 sets the Full Load Amperage (FLA) level for the unit.
The FLA setting is used in various algorithms to trigger overcurrent
faults. Set parameter 106 to 1.15.
d. Parameter 107 allows the user to select the Overload Class amperage
rating (10, 15, or 20 Amps). Using the drop-down box, set parameter
107 to 15.

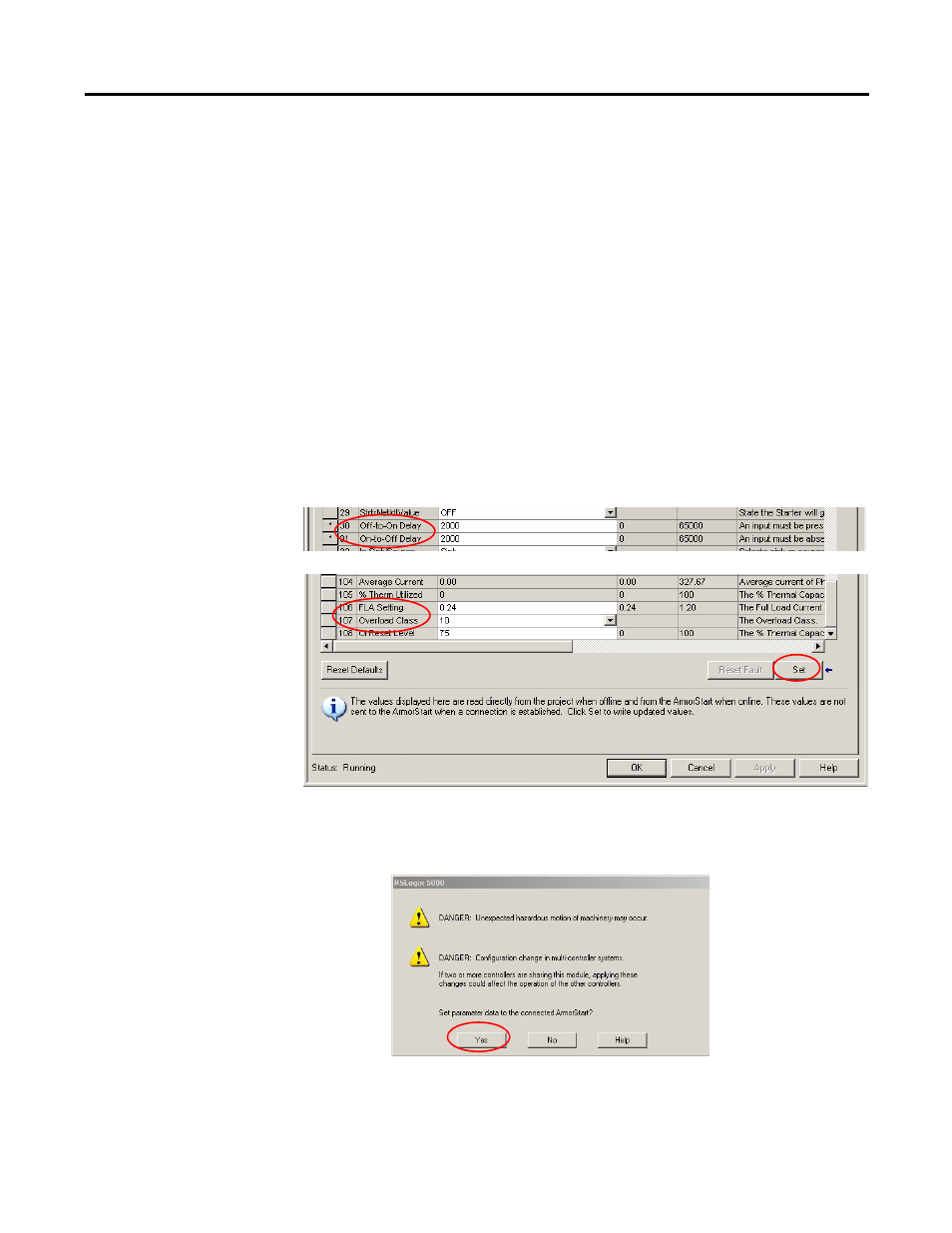

8. Click the Set button to apply the parameters. If the Set button is not
pushed then the parameter values will revert back to the previously set
values when you exit the Properties menu. Refer to the figure below.
9. The following screen should appear, click Yes to confirm updating the
parameters in the ArmorStart unit.
