4. To control the ArmorStart Bulletin 284E using RSLogix 5000, you must
first fill in the correct tag names for the various rung elements for Rungs 0,
2, and 4. Rungs 1, 3, and 5 will be left as is.
a. Select the photo sensor tag for the input rung element in Rung 0. Since
the photo sensor is connected to Input 0 on the ArmorStart unit, the
tag needed is the AS_EIP_284:I.In0 tag.

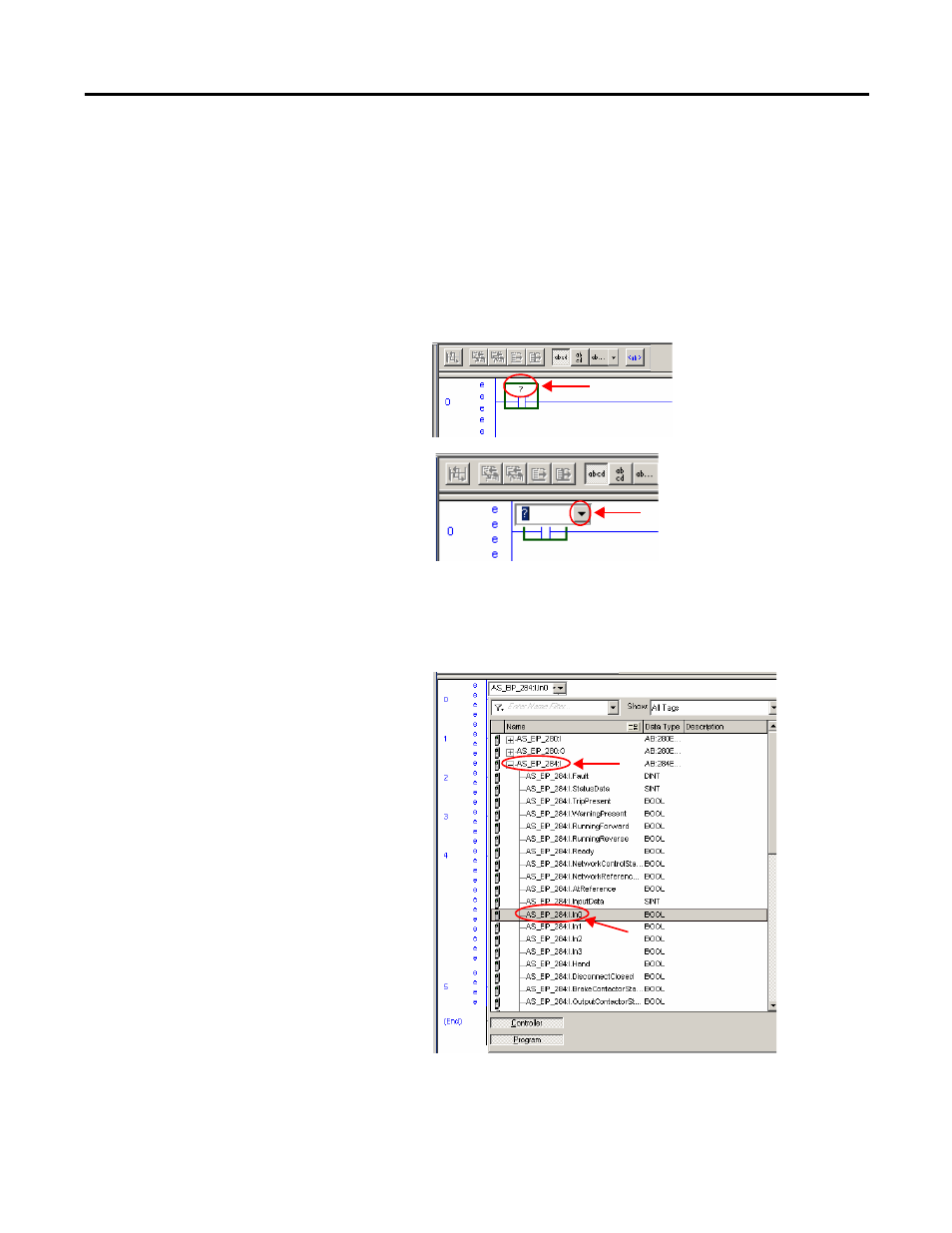

i. Double click on the question mark to bring up the drop-down box.
Then click on the drop-down box arrow to see all the available tag
options.
ii. Expand the AS_EIP_284:I tags by clicking on the plus next to
AS_EIP_284:I and select the AS_EIP_284:I.In0 to select the tag for
Input 0 and hit Enter.
Note: The "AS_EIP_284" prefix found on all of tags shown in the
figure above came from the name that was given to the ArmorStart
