84 Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Appendix C ArmorStart ® EtherNet/IP ™ Communications & Control Programming Manual

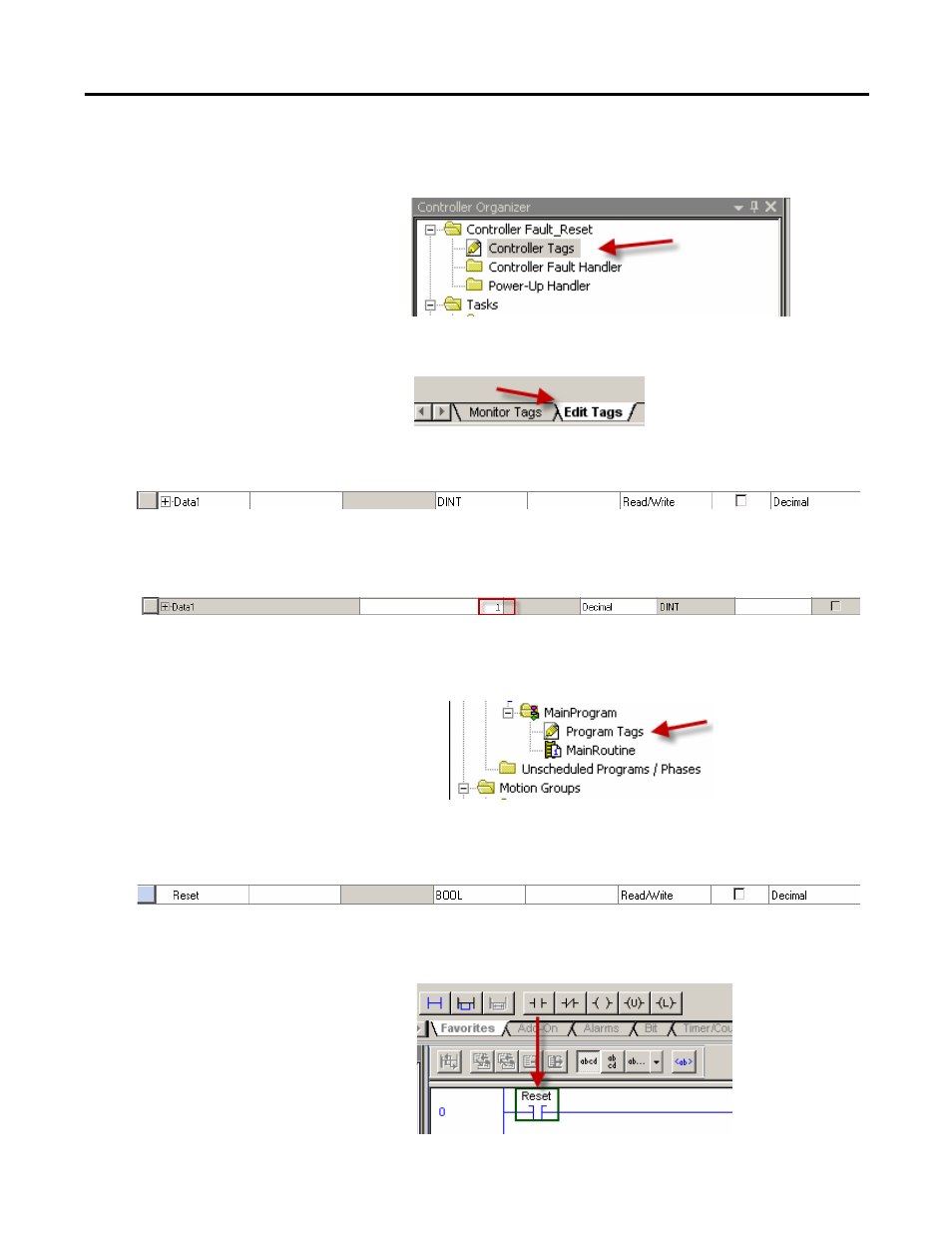

5. Create a new Controller Tag of data type DINT and assign it a value of 1.
a. Double click on Controller Tags in the Controller Organizer.
b. Select the Edit Tags tab at the bottom of the tag list screen.
c. Create another new tag, the example used below is named Data1.
d. Assign Data1 a value of 1 by clicking on the Monitor Tags tab and enter
a 1 in the Value field.
e. Create a tag for reset input.
1. Double click on Program Tags in the Controller Organizer
2. Select the Edit Tags tab at the bottom of the screen and create a
tag named Reset of the type BOOL (Boolean).
6. Create a rung in ladder logic for executing the Type 1 Reset.
a. Add an XIC Input and assign it the BOOL tag Reset.
