6. Advanced
If the AutoImage function does not succeed in finding a file and no file is loaded (load list is empty), which
means that the source is not displayed, then use the copy function: Copy a standard file (.std) which is not
too different of the source to display, then edit this file to get the best image.
6.8.6 Delete
How to delete a file ?
1. Press MENU to activate the Tool bar
2. Press → to select the Image files item
3. Press ↓ to Pull down the Image files menu
4. Use ↑ or ↓ to select delete

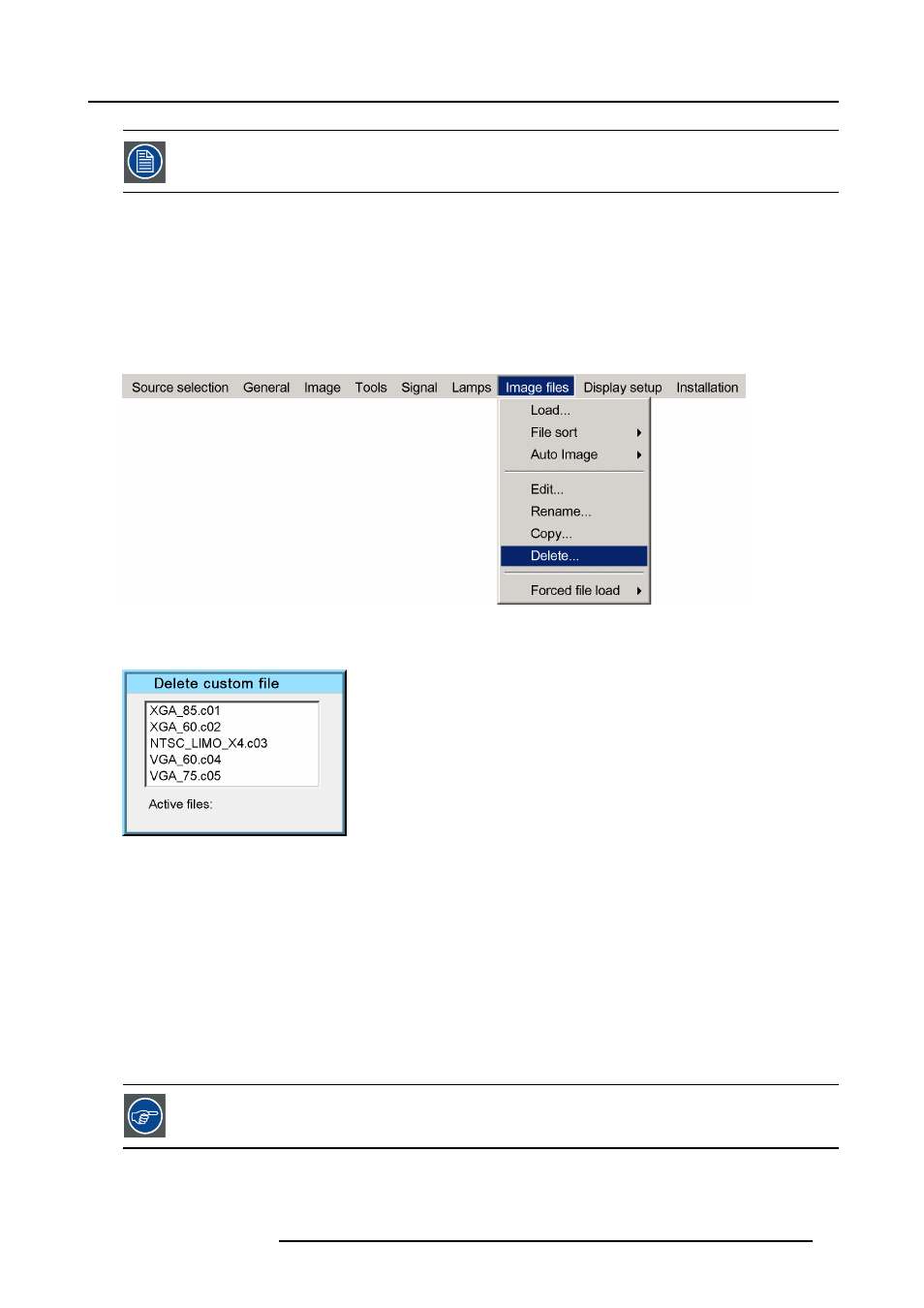

Image 6-103
5. Press ENTER
A dialog box is displayed
Image 6-104
6. Use ↑ or ↓ to select the desired file
7. Press ENTER
The selected file is deleted and is removed from the list
6.8.7 Forced file load
What can be done ?
Forced file load allows to force or lock one particular custom file to be loaded for one particular input. This way one can guarantee
that the same desired file is always used for a particular source.
For each layer (layer 1, layer 2, layer 3) we can enable or disable the forced file load. The specification for the file to be selected for
each input on that layer is done via RS232.
see the RS232 User Guide for more information on the Forced file load command to be sent.
How to set a file to be loaded ?
1. Press MENU to activate the Tool bar
R59770134 ID LR-6 27/05/2011 95
