6. Advanced

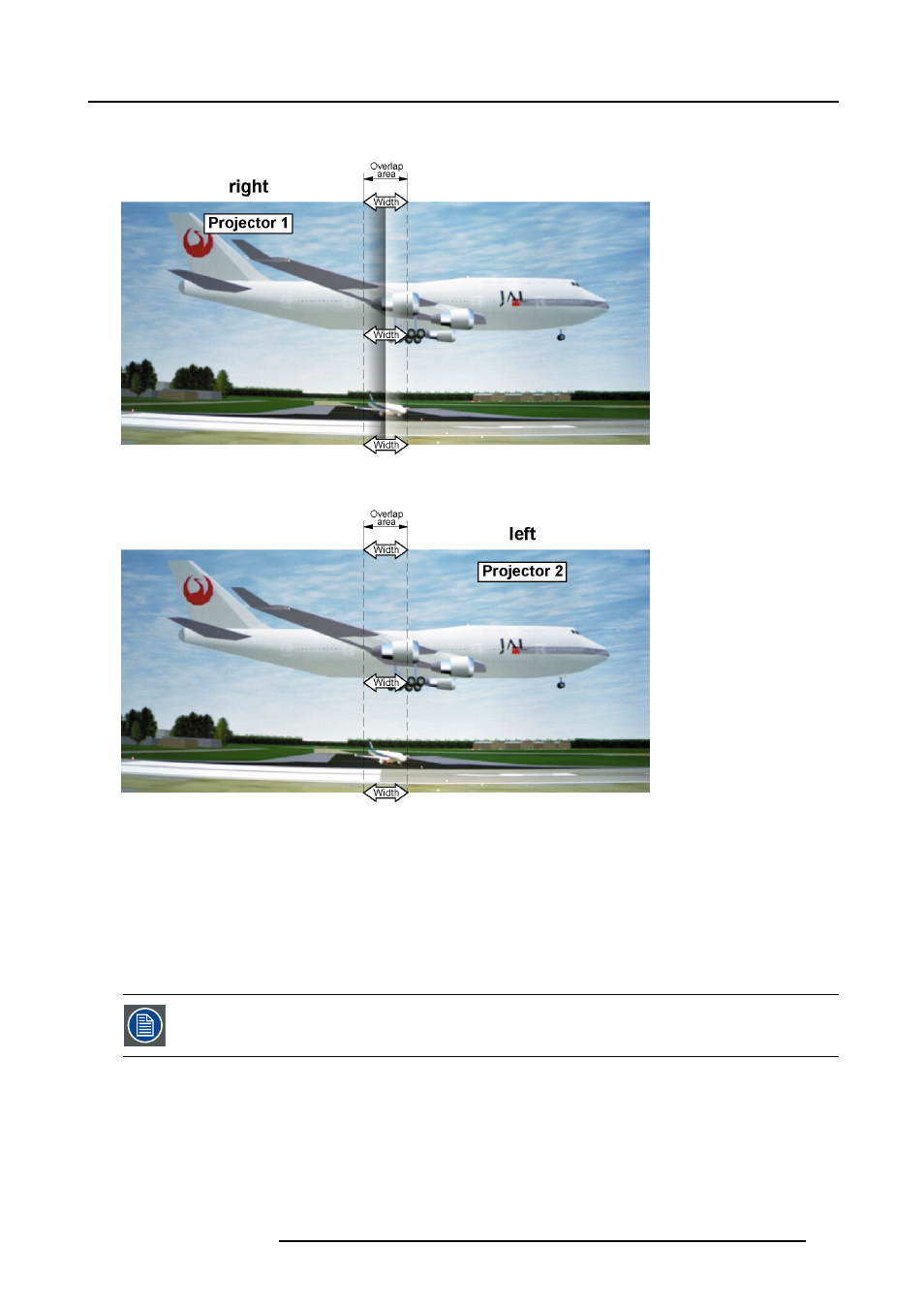

Set first the width of the first projector and repeat for the second one.
Image 6-119
Width set up for projector 1
Image 6-120
Width set up for projector 2
Adjusting by entering the exact values.
1. When on an adjustable item, the input box background will be colored. Press ENTER.
The value will change to a 3 digit value and the first digit is selected.
2. Enter a value with the digit keys on the remote control.
The cursor jumps automatically to the next digit.
3. Press ENTER to activate the new value.
Use reset to return to the default settings.
6.9.10.4 Black level of the images
Why
For dark images, the overlap zone will be brighter than the rest of the images. Therefore we can rise the black level of the remaining
image (excluding the overlap zone)
R59770134 ID LR-6 27/05/2011 105
