6. Advanced

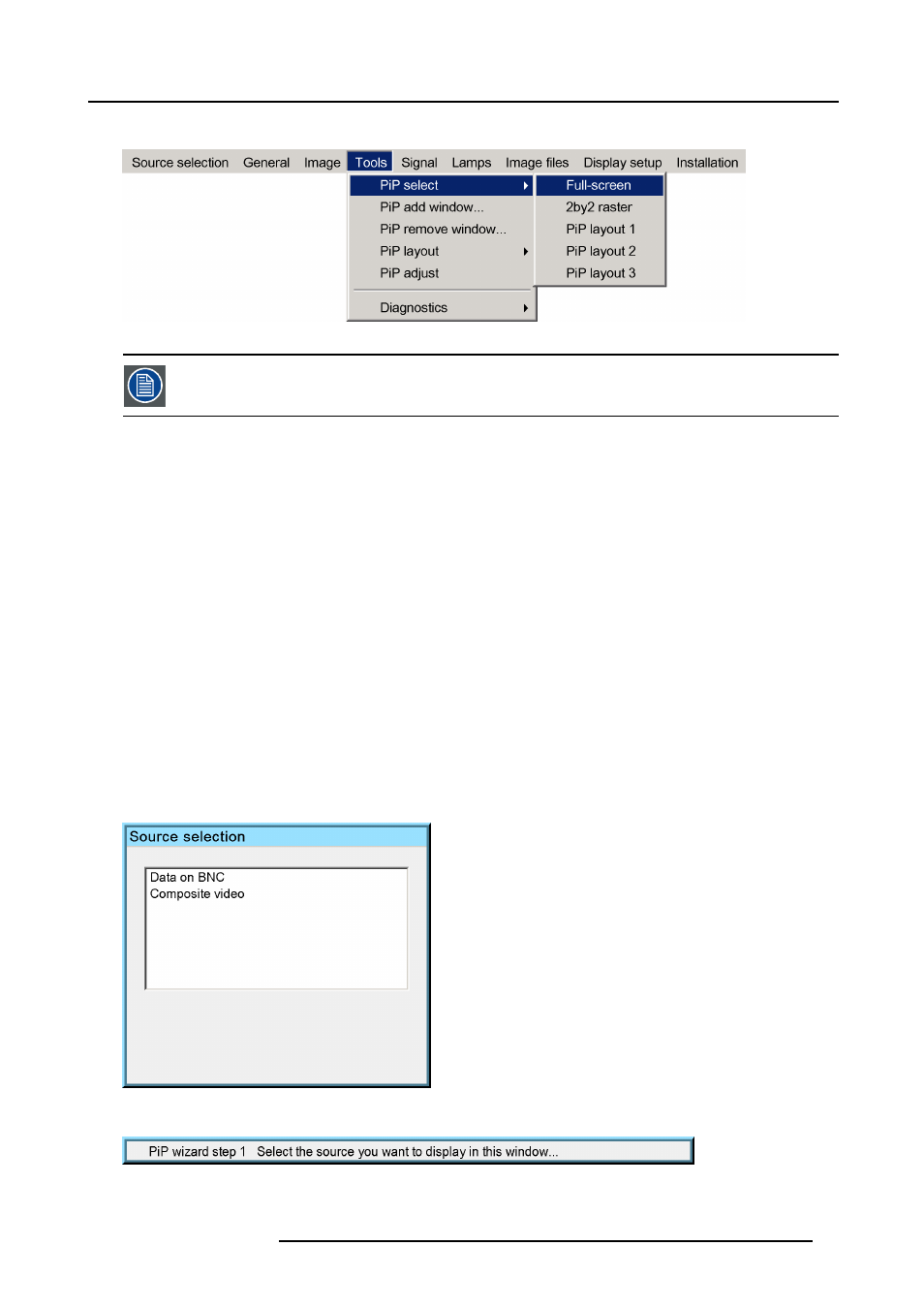

A white bullet shows the active layout
Image 6-63
The PiP configuration can also be selected via the dedicated PiP key on the RCU.
6.5.3 PiP add window
What can be done ?
It is possible to add a window to the existing windows (maximum 4), therefore a source must be selected.
Sources which are already used are non selectable. If, for instance, the PiP layout contains a component video then component
video will be non selectable.
Once added, the window may be altered in several ways to meet particular needs:
• repositioning
• re-sizing
• changing the order
How to add a window ?
1. Press MENU to activate the Tool bar
2. Press → to select the Tools item
3. Press ↓ to Pull down the Tools menu
4. Use ↑ or ↓ to select PiP add window
5. Press ENTER
The source selection menu is displayed
Image 6-64
In the lower part of the screen appears a wizard in 4 steps
Image 6-65
R59770134 ID LR-6 27/05/2011 77
