6. Advanced
2. Press → to select the Display setup item.

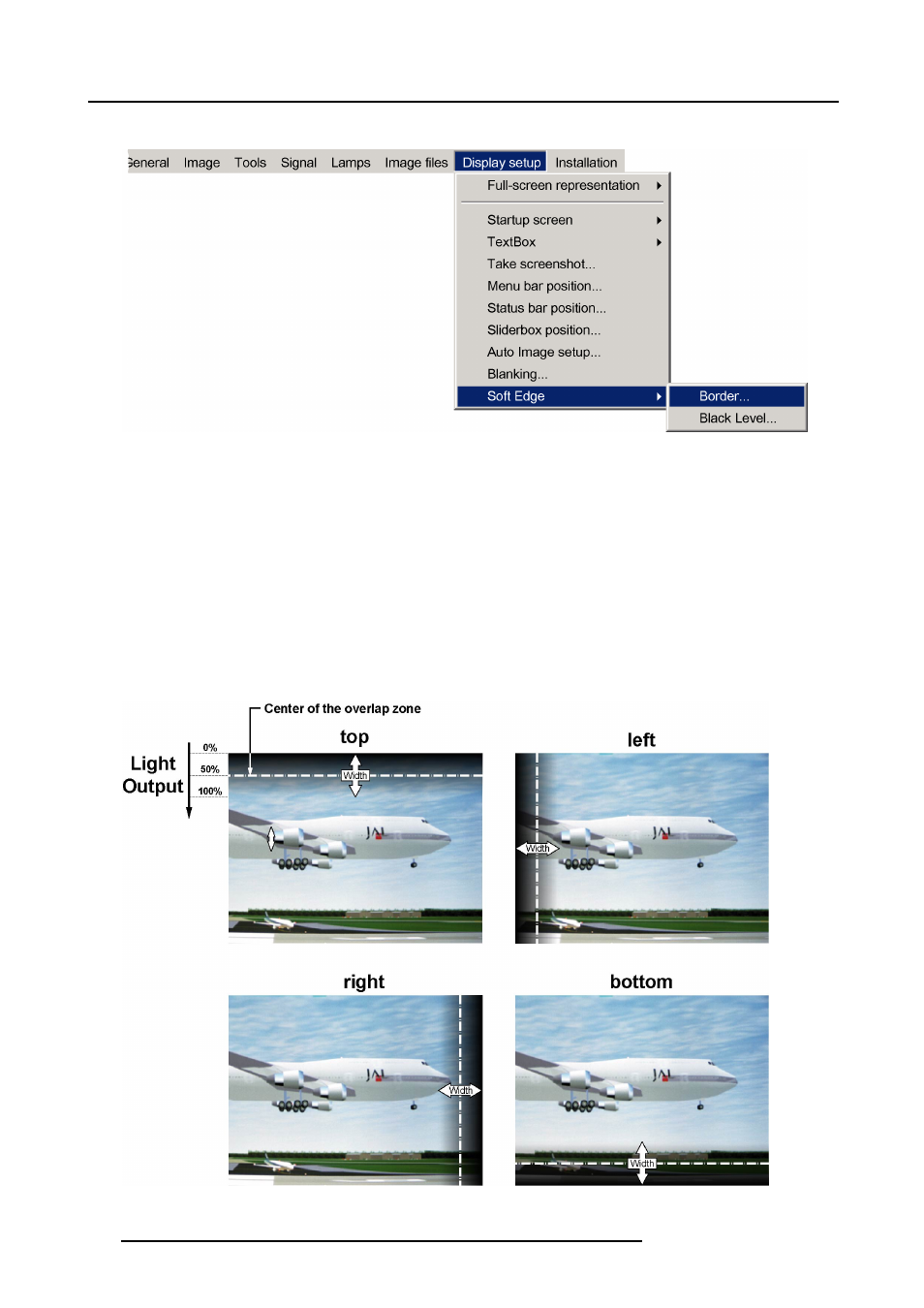

Image 6-117
3. Press ↓ to pull down the Display setup menu.
4. Use ↑ or ↓ to select Soft Edge.
5. Press → to select the Soft Edge item.
6. Use ↑ or ↓ to select Border.
7. Press ENTER to select.
A dialog box will be displayed. The actual Soft Edge border will be displayed.
8. Use ↑ or ↓ to select the desired adjustment.
Adjusting with the arrow keys.
1. When on an adjustment, use the → or ← key to move the border line to the desired position.
The border line will move in the desired direction and the light output in the overlap area will be adapted to.
Image 6-118
Width selections
104 R59770134 ID LR-6 27/05/2011
