8. Troubleshoot
8. TROUBLESHOOT
8.1 Using the OSD
What can be done ?
The projector bus allows the diagnostic of different hardware components divided in two main groups.
• I 2 C diagnostics : a number of internal electronic boards can be diagnosed and a graphical interface shows whether an error is
• Lamps and power supply : lamp temperature and power related failures are logged and can be checked at any time.
How to display the I 2 C diagnostics menu ?
1. Press MENU to activate the Tool bar
2. Press → to select the Tools item
3. Press ↓ to Pull down the Tools menu
4. Use ↑ or ↓ to select Diagnostics
5. Press → to pull down the menu
6. Press ENTER to select I 2 C

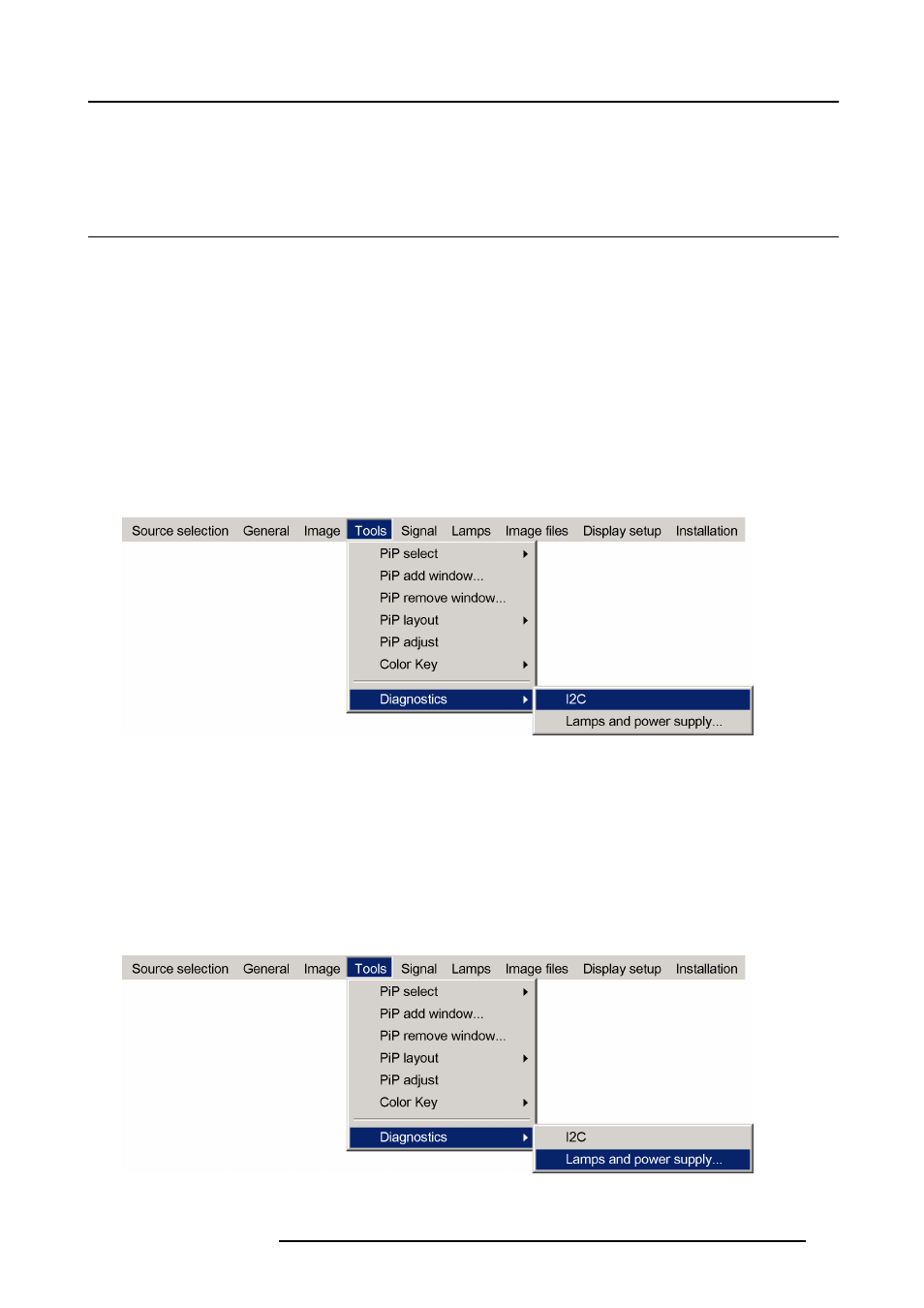

Image 8-1
A text box is displayed
How to display the Lamps and power supply diagnostic menu ?
1. Press MENU to activate the Tool bar
2. Press → to select the Tools item
3. Press ↓ to Pull down the Tools menu
4. Use ↑ or ↓ to select Diagnostics
5. Press → to pull down the menu
6. Press ENTER to select Lamps and power supply
Image 8-2
