6. Advanced

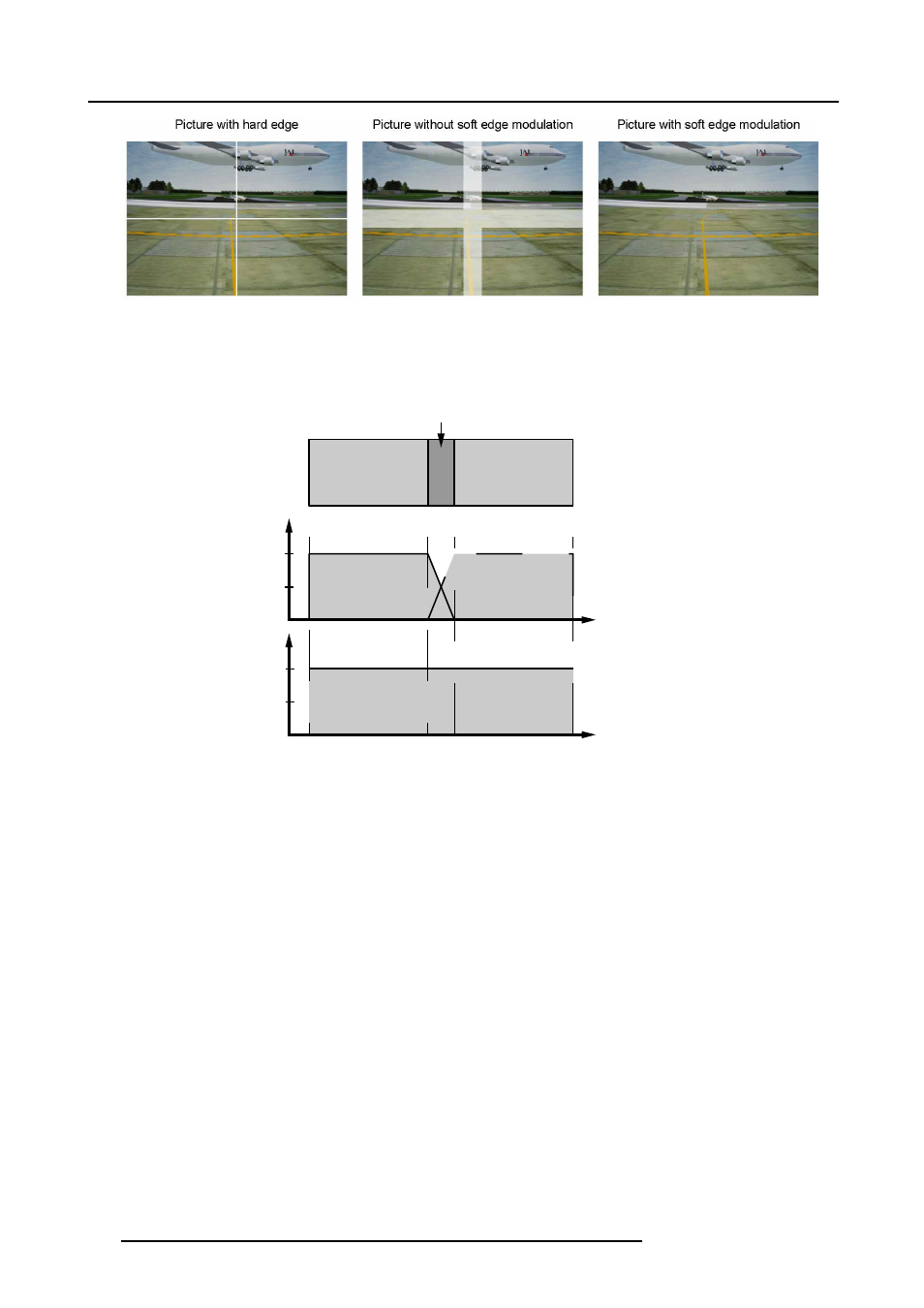

Image 6-114
Why Soft Edge?
What is the Basic Principal of Soft Edge?
The principle of edge blending is achieved by linear modulation of the light output in the overlap zone so that the light output in that
zone equals the light output of the rest of the image.
Adjustable overlapping area
50%
100%
50%
100%
image 2
image 1
image 2
image 1
Light output per image
Total composite light output
Image 6-115
Light modulation in Soft Edge
102
R59770134 ID LR-6 27/05/2011
