Barco ID LR-6 R9010342 User Manual
Page 19
3. Installation
P
PD
F
a
b
c
S
S
B
SH
SW
SH
SW
F
CD=B-A
A
front plate

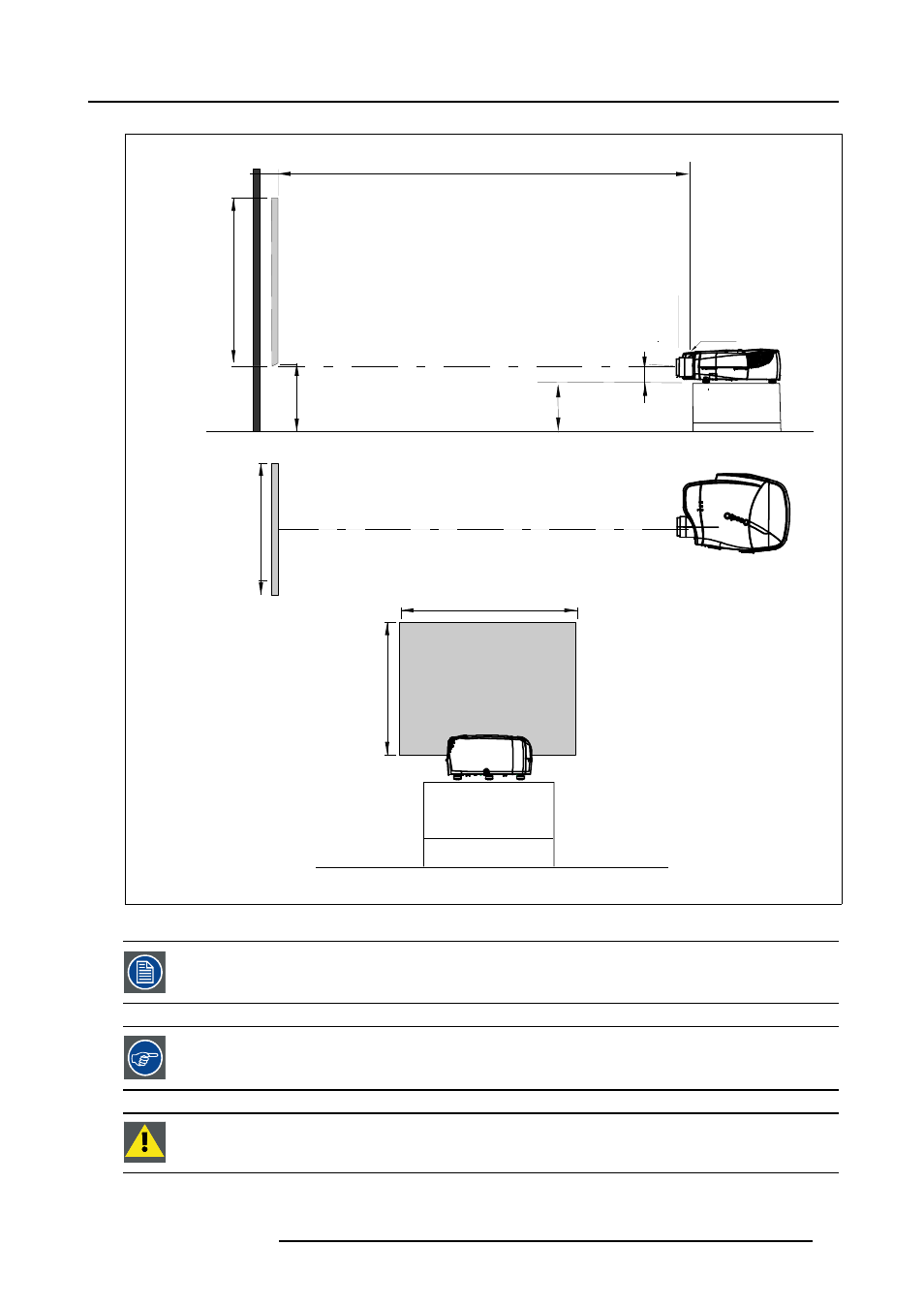

Image 3-8
A 100% Off-Axis position means that the position of the centre of the lens is shifted by half the screen height.
Never use a short throw lens in an Off-Axis installation. Shifting the lens will not guarantee optimal image
quality.
C
AUTION
:
Only for projectors containing a Server (Single Board Computer) : The hard disk in the server is
formatted in horizontal position but can operate in all axes (6 directions). The projector should not be tilted
more then +/- 5 degrees from these positions, otherwise error rates will increase.
R59770134 ID LR-6 27/05/2011
15
