3. Installation
Input specifications
SDI input : BNC
SDI output : BNC (=loop through)
typical : 0.8 Vpp
75Ω terminated
output impedance: 75Ω

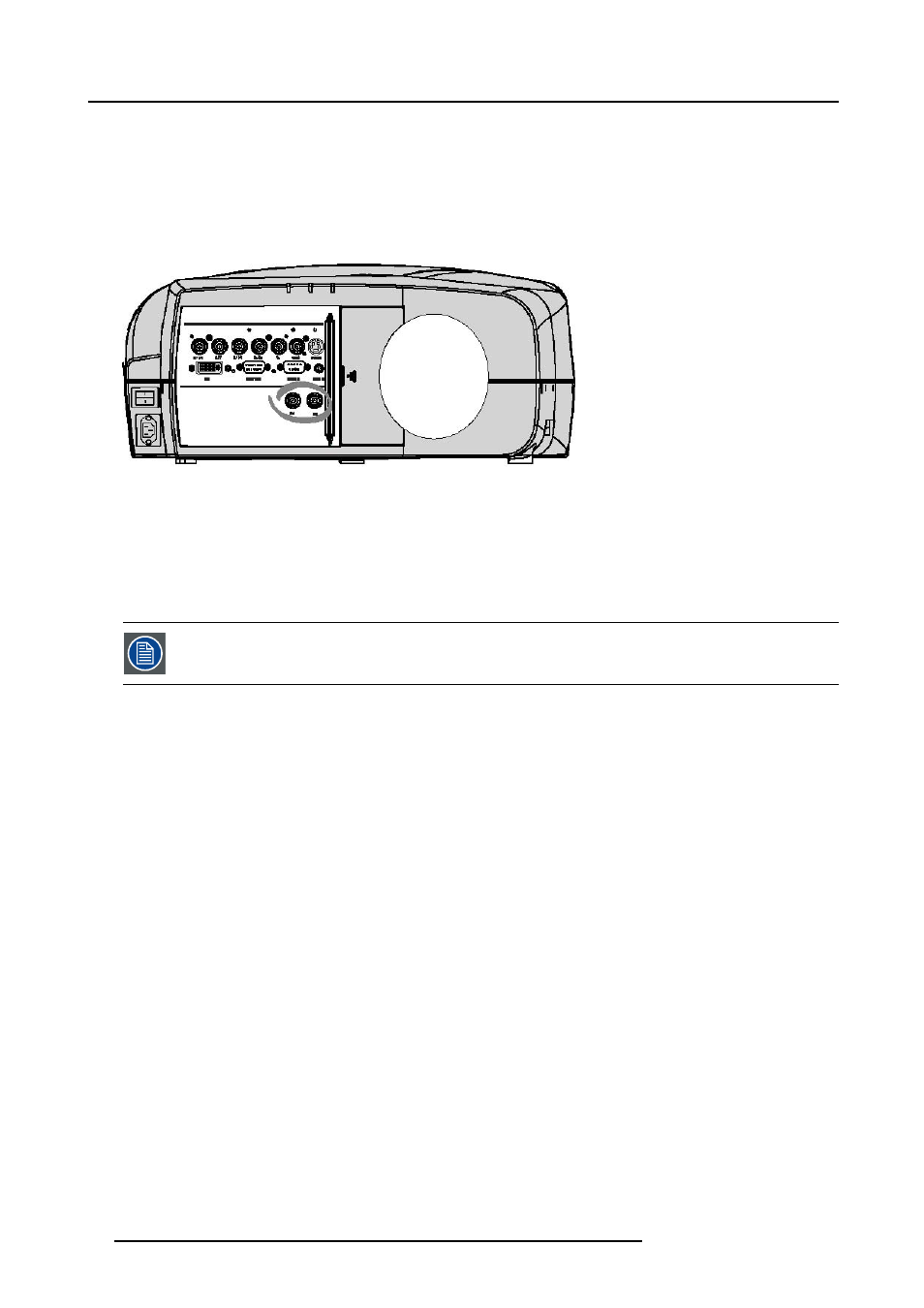

Image 3-17
How to select the SDI input
1. Press 7 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu.
The SDI is located on Layer3 which is an optional Layer.
3.5.2.9 Audio input/Output (Optional)
Input specification
Typical = 200 mV
Max = 4V
pp
Mono/Stereo
Output specification
V
in
+20dB / -∞ dB
Max = 4 V
pp
Mono/Stereo (selectable in menu)
How to select the audio input ?
1. Use the Audio menu (General menu) to link the desired audio input to the desired signal.
22 R59770134 ID LR-6 27/05/2011
