Page 122: 2 cleaning how to clean the dustfilters
9. Maintenance

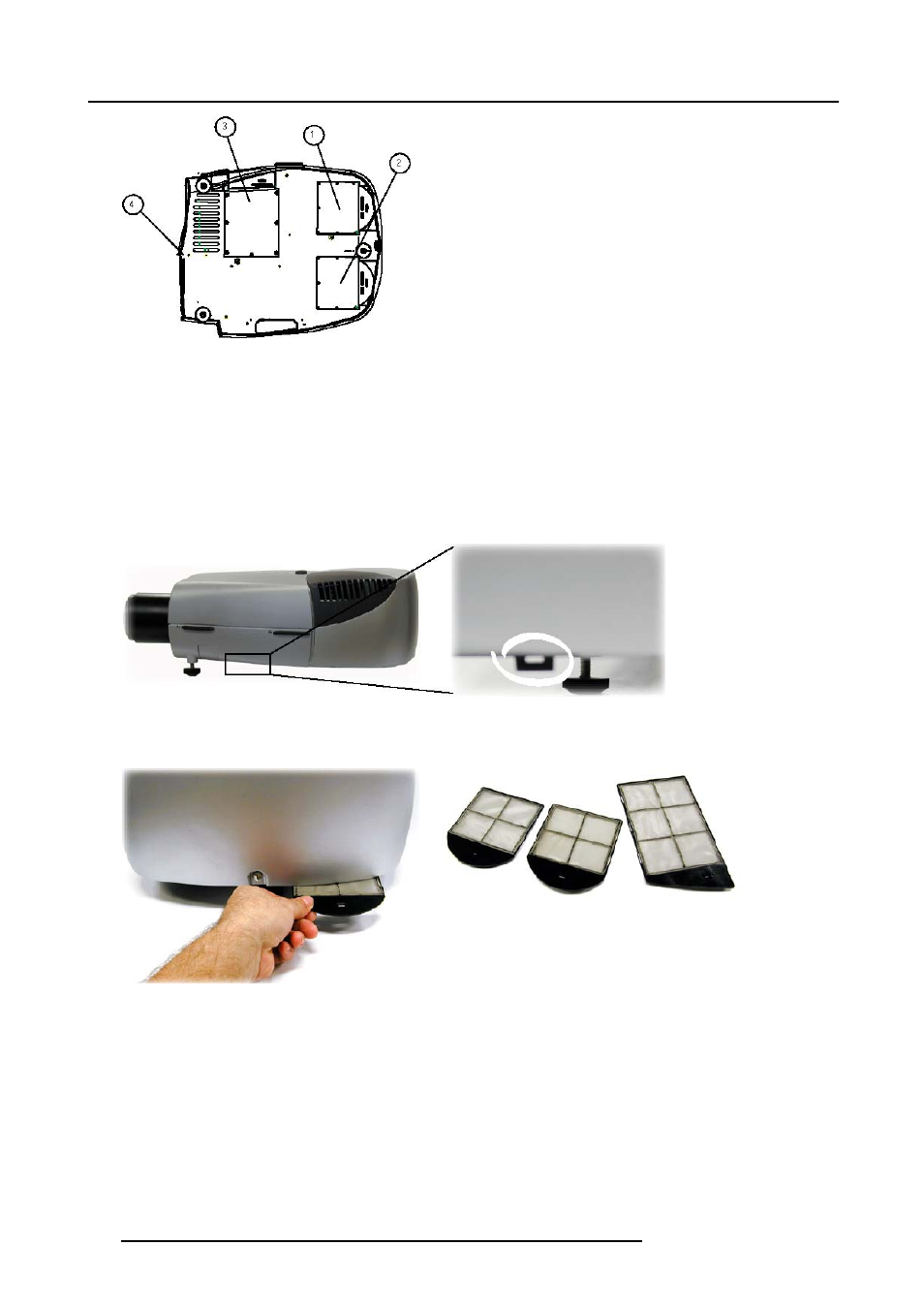

Image 9-1
location of the filters
1
lamp filter 1
2
lamp filter 2
3
x-cube filter
4
input filter
9.2.2
Cleaning
How to clean the dustfilters ?
1. Place the projector so as to access easily the filter to be cleaned
2. Push the handle downwards to unlock the filter.
Image 9-2
Location of the x-cube filter and its handle
3. Slide out the filter
Image 9-3
Lamp filter removal
Image 9-4
lamp & X-Cube filters removed
118
R59770134 ID LR-6 27/05/2011
