6. Advanced
3. Press ↓ to Pull down the General menu
4. Use ↑ or ↓ to select Audio setup

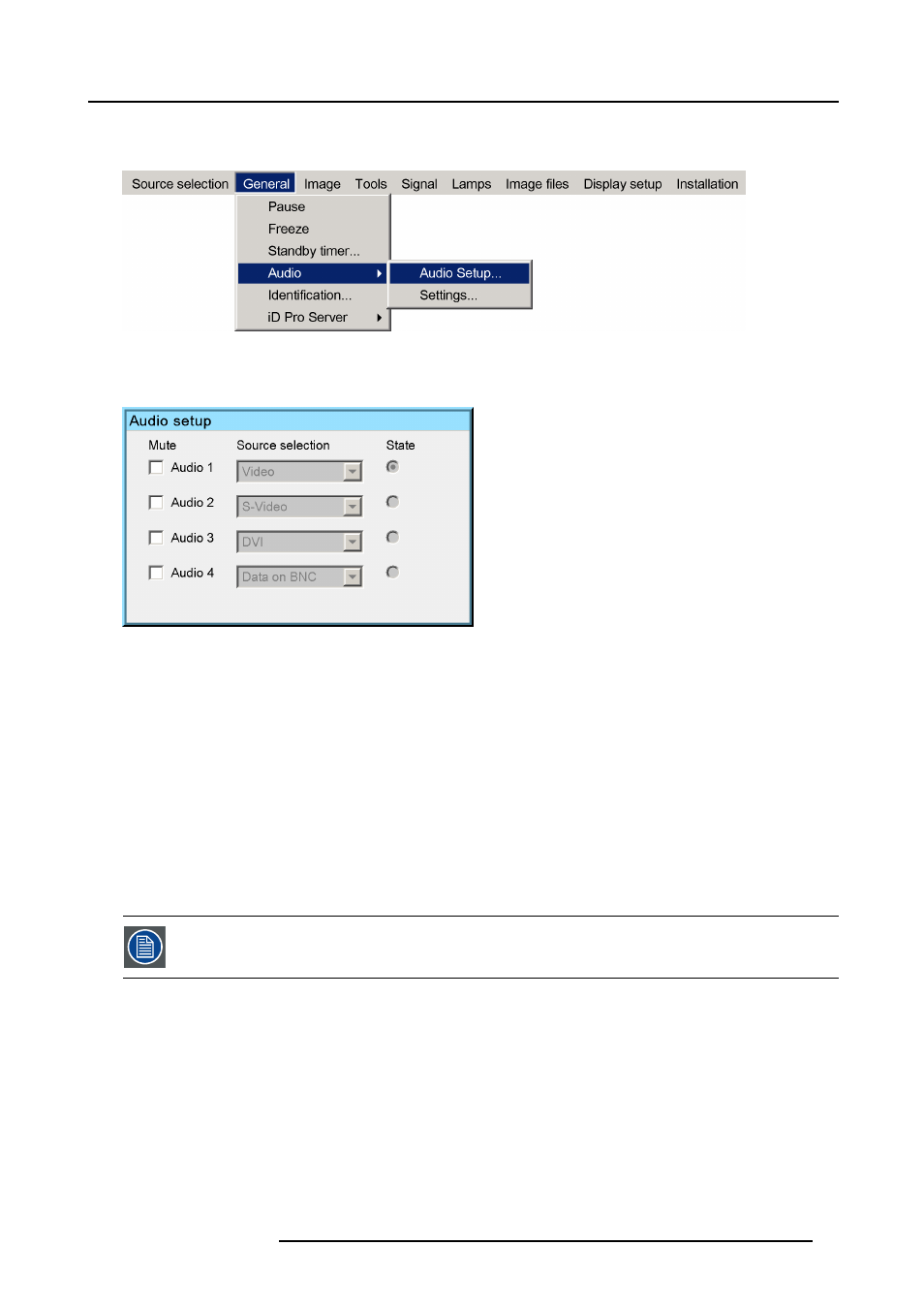

Image 6-11
5. Press ENTER
A dialog box is displayed
Image 6-12
- LED is red : audio input is mute
- LED is green : input is active (linked image source is selected)
- LED is orange : image source is not selected
How to mute an Audio channel ?
1. use the arrow keys to select the desired mute box
2. Press ENTER
How to link an audio input to a source ?
1. use the arrows to select the desired scroll box
2. Press ENTER to open the scroll box
3. use ↑ or ↓ to select the source
4. Press ENTER
When the source switching mode is the fade in/out mode, the audio switching will also be done using a fade
in/out effect.
6.3.4.2 Audio Settings
Audio Settings
1. Press MENU to activate the Tool bar
2. Press → to select General
3. Press ↓ to Pull down the General menu
4. Use ↑ or ↓ to select Audio setup
R59770134 ID LR-6 27/05/2011 47
