6. Advanced
What can be done ?
The aim here is to always show the resolution of the source independently of the resolution of the LCD panels. This way better
image reproduction is obtained since no up or down scaling is done on the source.
Note that native resolution refers here to the source and does thus only have sense when handling data sources (greyed out for
video sources).
Depending on the type of projector the “show native resolution” function will handle the sources as follows:
Source Projected image
Name Ratio Resolution Ratio Resolution Display
xga 4:3 1024x768 4:3 1024x768 image centered +side blanked
sxga 5:4 1280x1024 5:4 1280x1024 image centered +side blanked
sxga+ 4:3 1400x1050 4:3 1400x1050 image centered
uxga 4:3 1600x1200 4:3 1600x1200 scroll image
Table 6-1
Show native resolution = ON
The Full screen representation function on the other hand forces to use the complete native resolution of the
LCD panels.
How to enable the “Show native resolution” function?
1. Press MENU to activate the Tool bar
2. Press → to select the Image item
3. Press ↓ to Pull down the Image menu
4. Use ↑ or ↓ to select Show native resolution

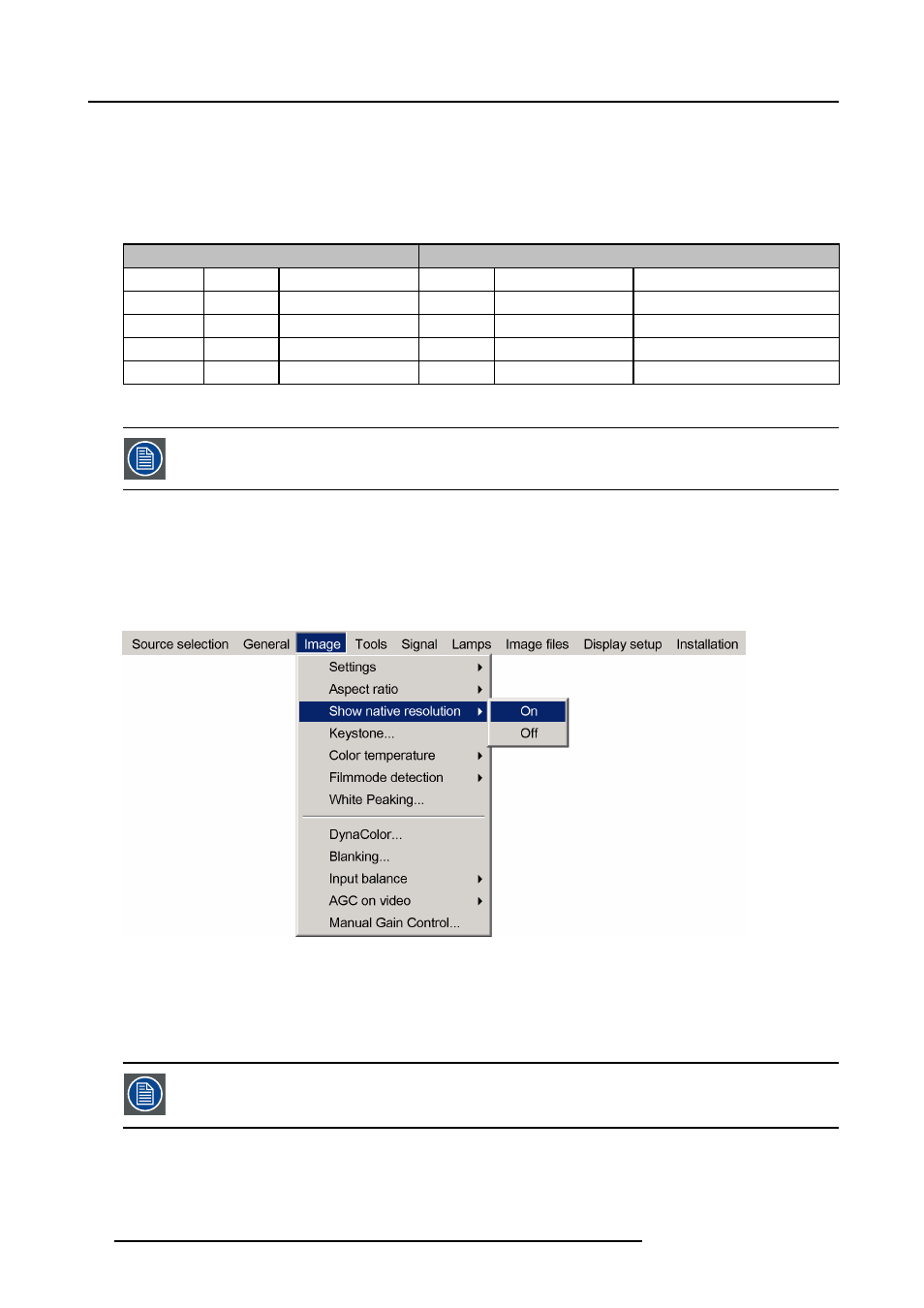

Image 6-28
5. Press → to pull down the menu
6. Use ↓ or ↑ to select On
7. Press ENTER
A white bullet shows the selection
The default mode is used if the Show native resolution and the Full screen representation are off.
The default mode shows always the native ratio and forces the native resolution of the panels (part of the
image blanked where needed)
