6. Advanced

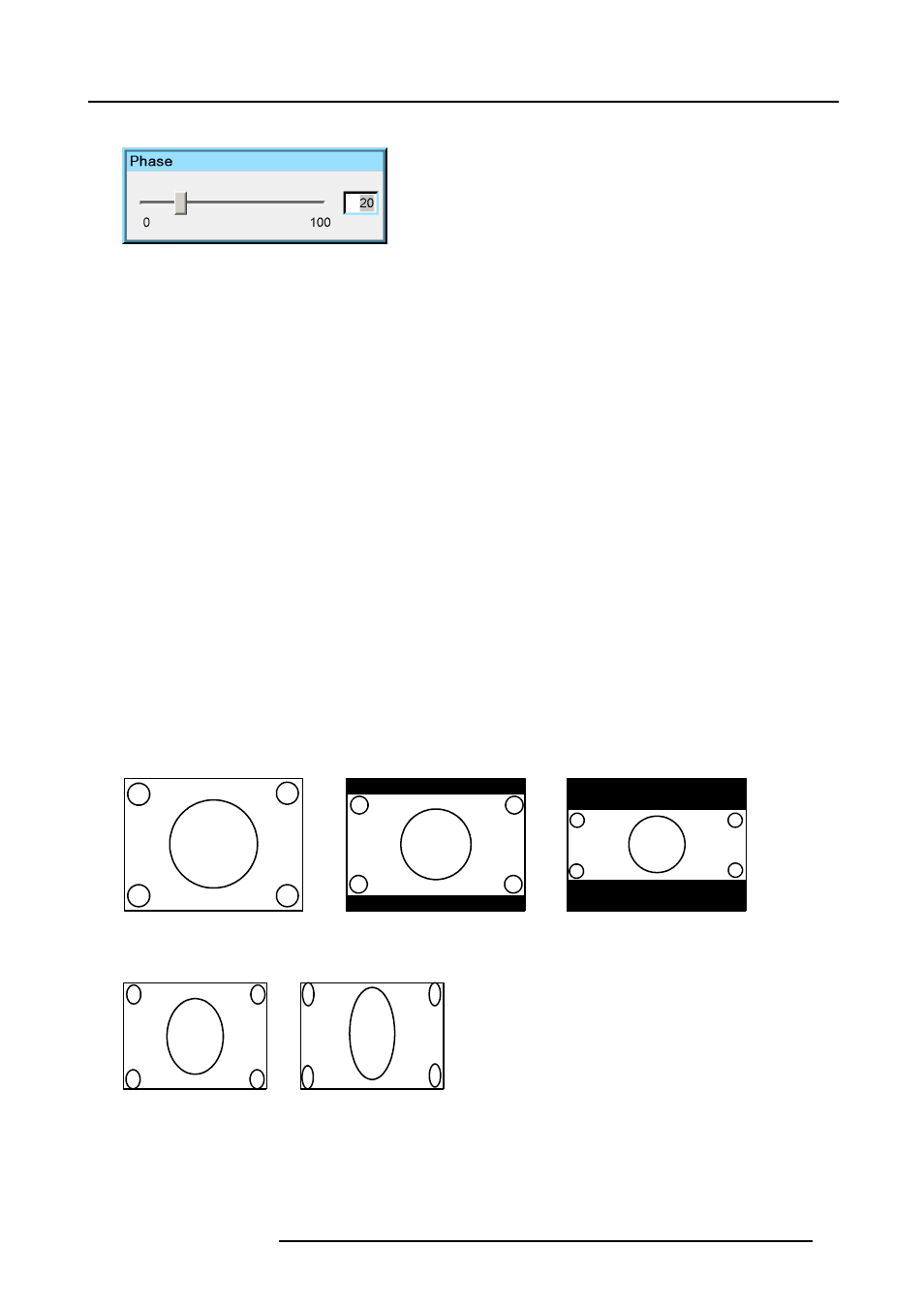

On the screen appears now a sliderbox
Image 6-22
8. Use ←or → , the numeric keys on the remote, or the keypad to change the Phase
6.4.1.8 Noise reduction
How to change the Noise reduction ?
1. Press MENU to activate the Toolbar
2. Press → to select the Image item
3. Press ↓ to Pull down the Image menu
4. Use ↑ or ↓ to select settings
5. Press → to pull down the menu
6. Use ↓ or ↑ to select Noise reduction
7. Press ENTER
On the screen appears now a sliderbox
8. Use ←or → , the numeric keys on the remote, or the keypad to change the Noise reduction setting.
6.4.2 Aspect ratio
Aspect ratios
The standard aspect ratio used in broadcast television is the 4:3 ratio. However, most of the DVD sources use nowadays the
widescreen 16:9 or even the cinemascope 2.35:1 aspect ratio.
Some DVD sources may even use the anamorphic 16:9 or anamorphic 2.35:1 to take advantage of the higher vertical resolution
offered by the 4:3 ratio. The “anamorphic” term means that the original widescreen image is squeezed in order to fit the 4:3 aspect
ratio.
4:3 16:9 2.35:1
Image 6-23
Common non- anamorphic aspect ratios in DVD sources
16:9 2.35:1
Image 6-24
Anamorphic aspect ratios in DVD sources
What can be done ?
The aspect ratio setting forces the projector to project an image using a defined aspect ratio :
