3. Installation
3.2
Lens installation
3.2.1
Lens installation

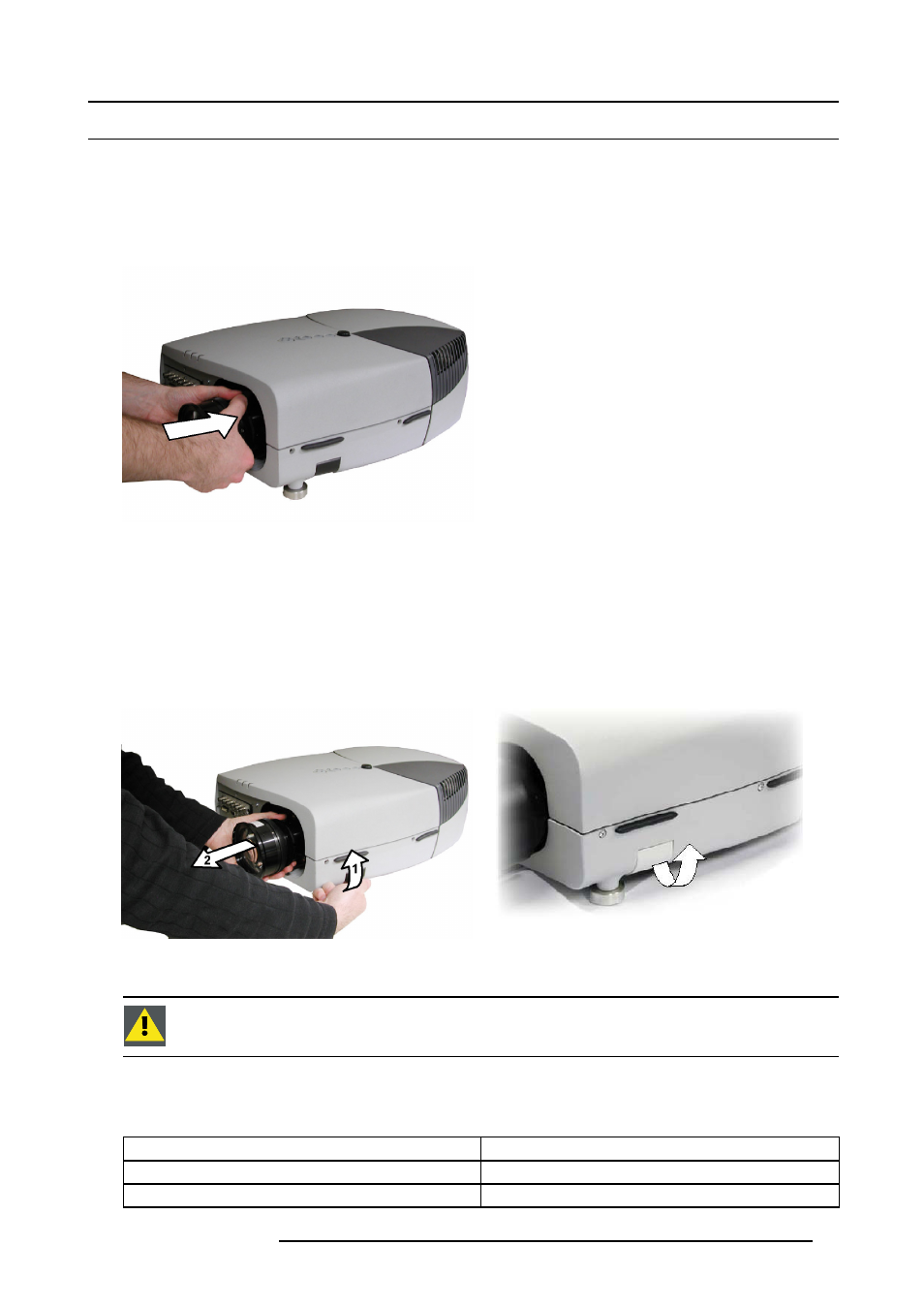

How to install ?
1. Take the lens out of its packing material
2. Fix the lens by placing it in the housing
Image 3-3
Note: In case of a motorized lens the female jack must be in front of the male jack located in the upper-left part of the housing
in the projector
3. Push carefully to lock the lens in the housing
3.2.2
Removing the lens
How to remove the lens ?
1. Unlock the lens by pulling the handle located on the right side of the projector
Image 3-4
Image 3-5
location of the lens handle
2. Remove the lens out of its housing
C
AUTION
:
Never transport the projector with the lens mounted on it !
Always remove the lens before transporting the projector.
3.2.3
Lens range
Overview table
Lens
Partnumber
CLD (1.2-1.6:1)
R9849870
CLD (1.6-2.4:1)
R9849880
R59770134 ID LR-6 27/05/2011
