3. Installation

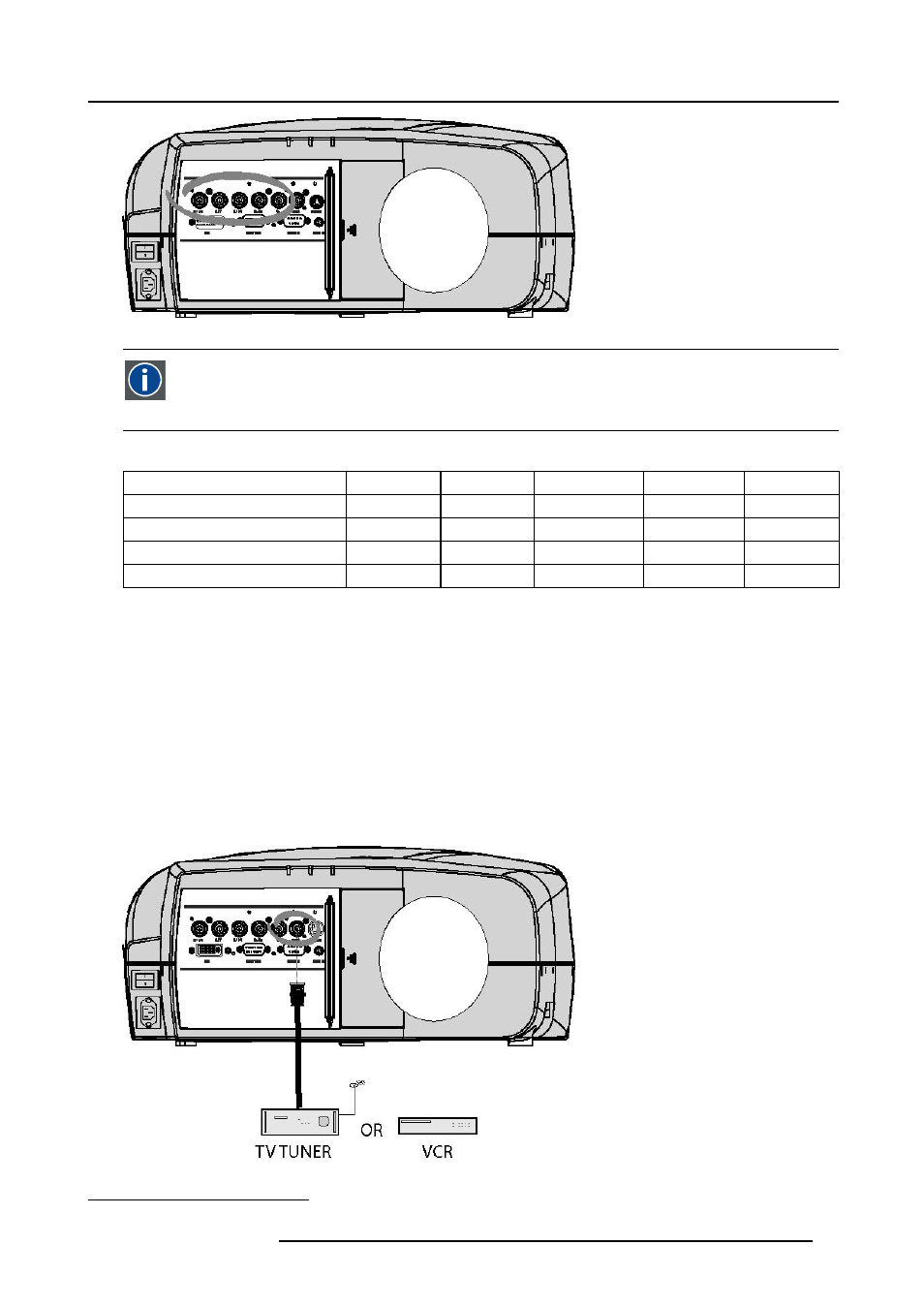

Image 3-12
Component Video
In Component Video the term component describes a number of elements that are needed to make up the video pic-
ture, these components are PR/Y/PB. A composite video signal on the other hand contains all the information needed
for the color picture in a single channel of information
Which signals can be connected ?
Signals/Input BNC R G B H V
RGBHV R G B H V
RG
s
B 1 R G
s
B - -
RGBS 1 R G B S -
Component PR Y PB - -
How to select a source on the 5 cable input ?
1. Press 1 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu
3.5.2.4 Composite Video Input
Input specifications
The Composite video input section is made of 1BNC input terminal.
1.0 Vpp ± 3dB
75 Ω terminated
No loop through
Image 3-13
1. data or video
R59770134 ID LR-6 27/05/2011 19
