6. Advanced

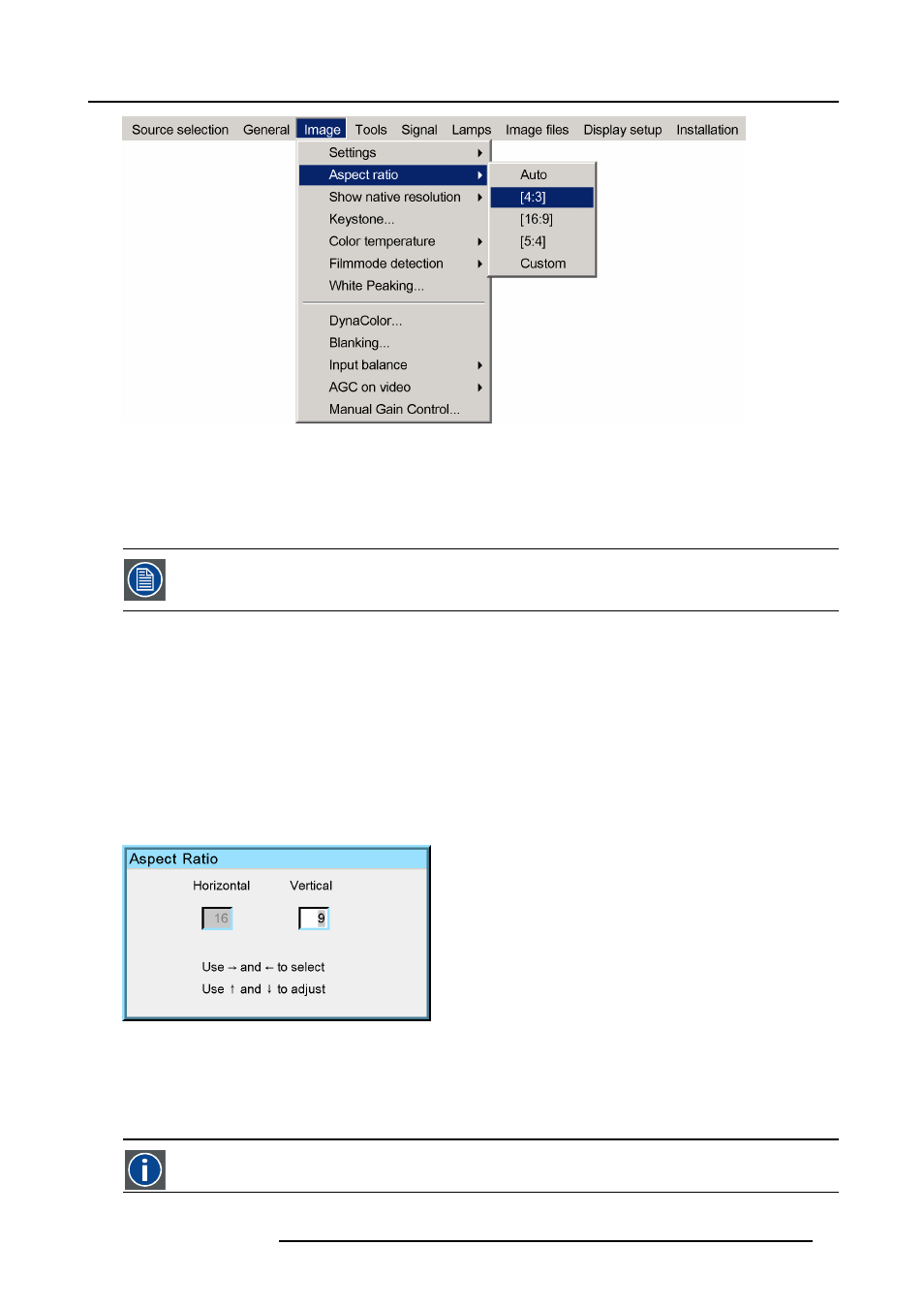

Image 6-26
4. Use ↑ or ↓ to select Aspect ratio
5. Use → open the Aspect ratio menu
6. Use ↑ or ↓ to select the desired ratio
7. Press ENTER to confirm
The aspect ratio settings are greyed out in case the Show native resolution or the Full screen representation
setting is enabled.
How to set a custom Aspect ratio ?
1. Press MENU to activate the Tool bar
2. Press → to select Image
3. Press ↓ to Pull down the Image menu
4. Use ↑ or ↓ to select Aspect ratio
5. Use → open the Aspect ratio menu
6. Use ↑ or ↓ to select Custom
7. Press ENTER to confirm
A dialog box is displayed
Image 6-27
8. Enter the values for width and height of the image
The image aspect ratio is updated.
6.4.3 Show native resolution
Reality(SXGA+)
Native resolution of the LCD panels = 1400 x 1050 pixels (4:3)
R59770134 ID LR-6 27/05/2011 55
