6. Advanced
Select a coordinate that is present in the common gamut e.g. with the desired values for red set to x=633 and y= 328.
650 640
310
320
330
660
Rc
R1
R2

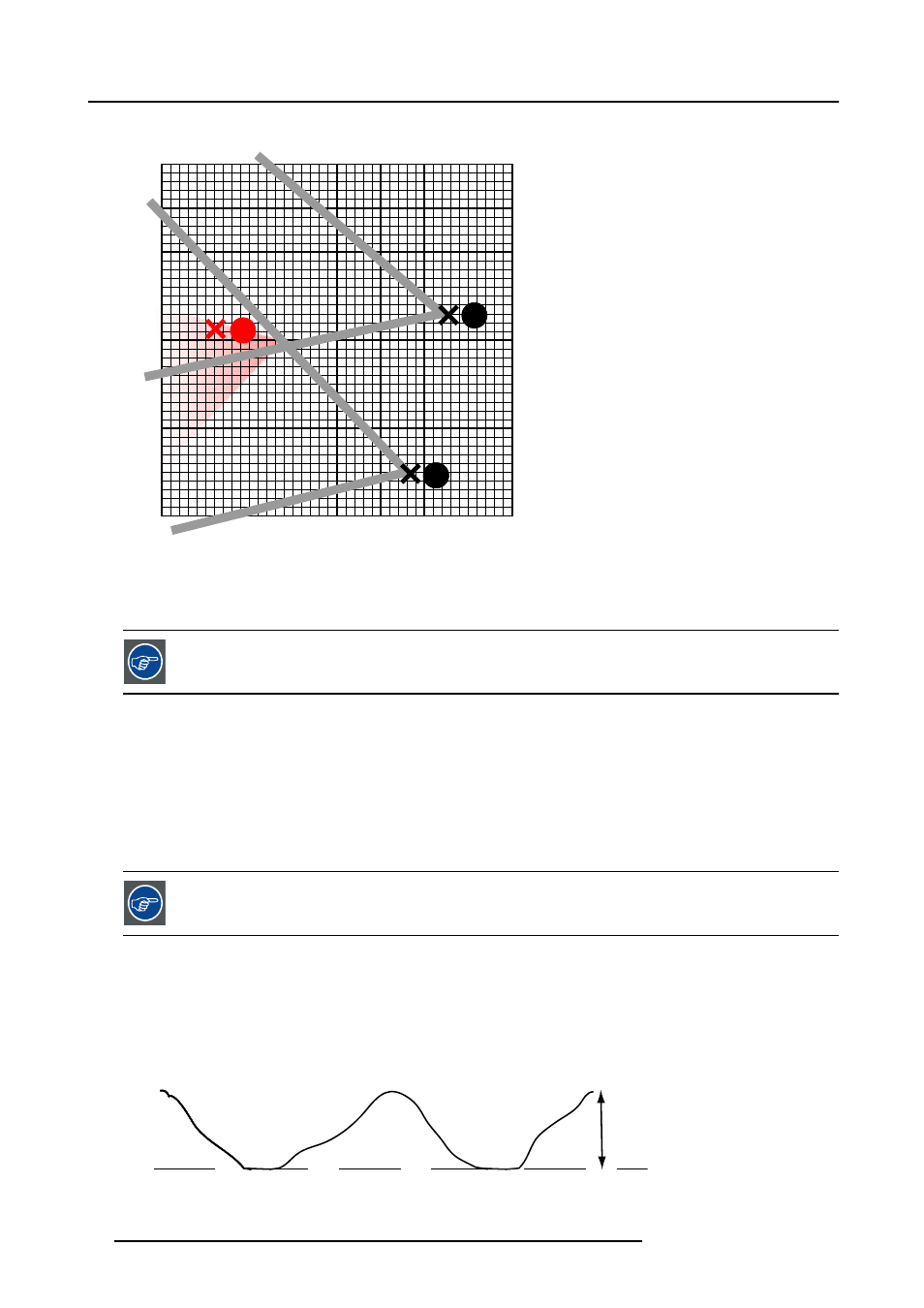

Image 6-51
Select a coordinate that is present in the common gamut
7. Repeat step 5 to 6 for all coordinates on both projectors.
Both projectors will now operate within the same color gamut.
Another way to determine the new coordinates is to use the DynacolorTool (software tool running on a laptop
or PC), contact Barco for more information.
6.4.9 Blanking
Blanking in the Image menu
The blanking in general allows to blank unwanted video information (noise in the top or bottom of the image).
The blanking in the image menu is the same as in the Display settings menu except for the fact that here the blanking settings are
stored in the image files. In other words each custom file or source has its own blanking values.
See the blanking procedure in the Display settings menu.
If the selected source is not entirely displayed always check first the blanking settings in the image menu
since the active custom file may contains blanking.
6.4.10 Input balance
Introduction: Unbalanced color signals
When transporting signals, there is always a risk of deterioration of the information contained in the signals.
The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced,
B
Black level
0.7V
Image 6-52
