Note that here the blanking is only done on the display i.e. the setting is not saved in the image file. in other
words only one type of blanking (setting) can be done independently of the source.
How to blank the image ?
1. Press MENU to activate the Toolbar
2. Press → to select the Display setup item
3. Press ↓ to Pull down the menu
4. Use ↑ or ↓ to select Blanking
5. Press ENTER
A slider box is displayed

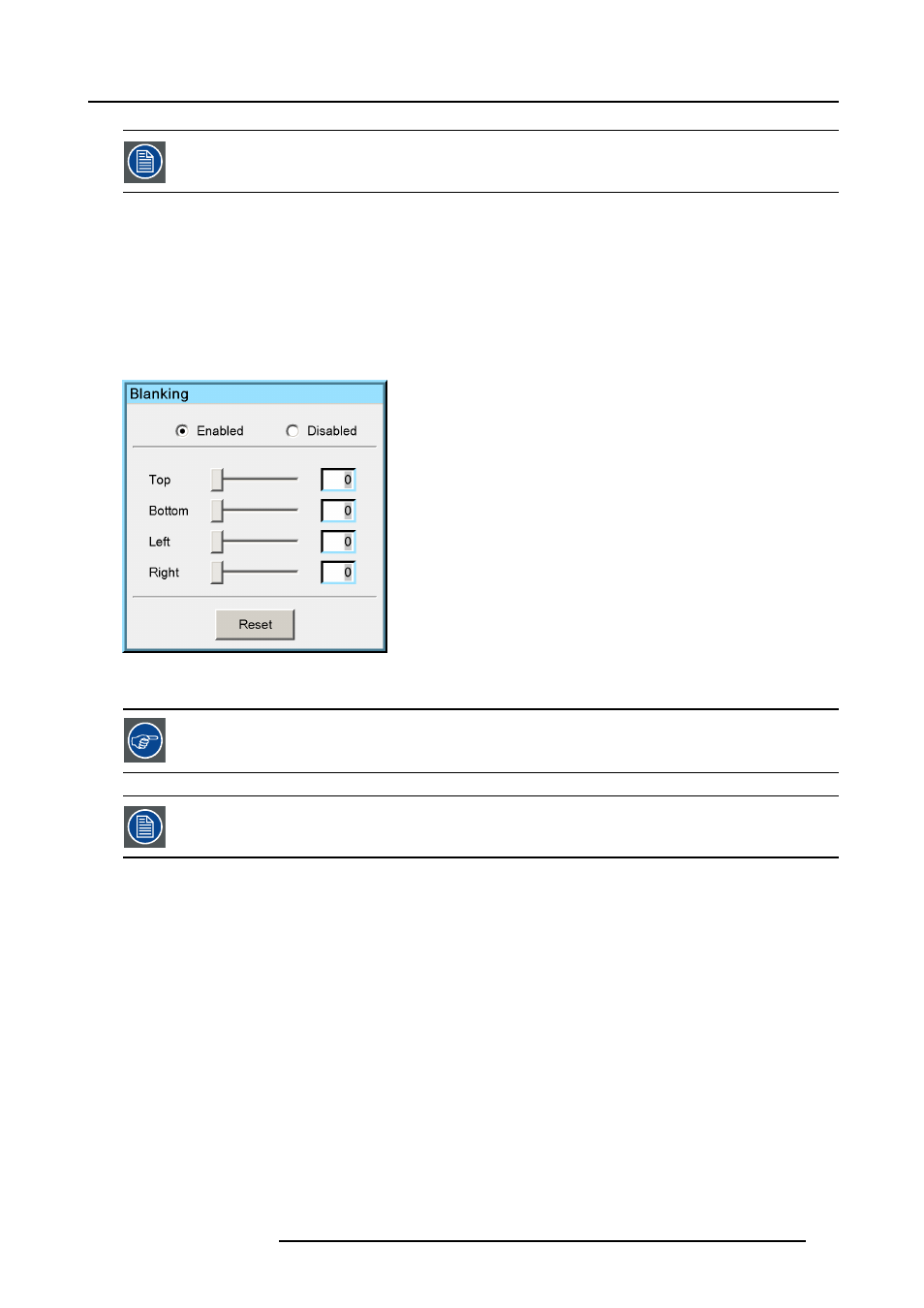

Image 6-113
6. Use ←or →, the numeric keys on the remote, or the keypad to change the blanking.
Use the checkboxes to enable/disable the blanking
Use the Reset key to reset the blanking values.
The logo is also affected by the blanking
6.9.10 Soft Edge
Overview
• Introduction
• Soft Edge overlap zone (horizontal Soft Edge)
• Soft Edge border adjustment
• Black level of the images
6.9.10.1 Introduction
Why Soft Edge?
When working in a multichannel setup the projector and its Soft Edge possibilities allow an image blending that gives the appearance
of a single view.
