6. Advanced

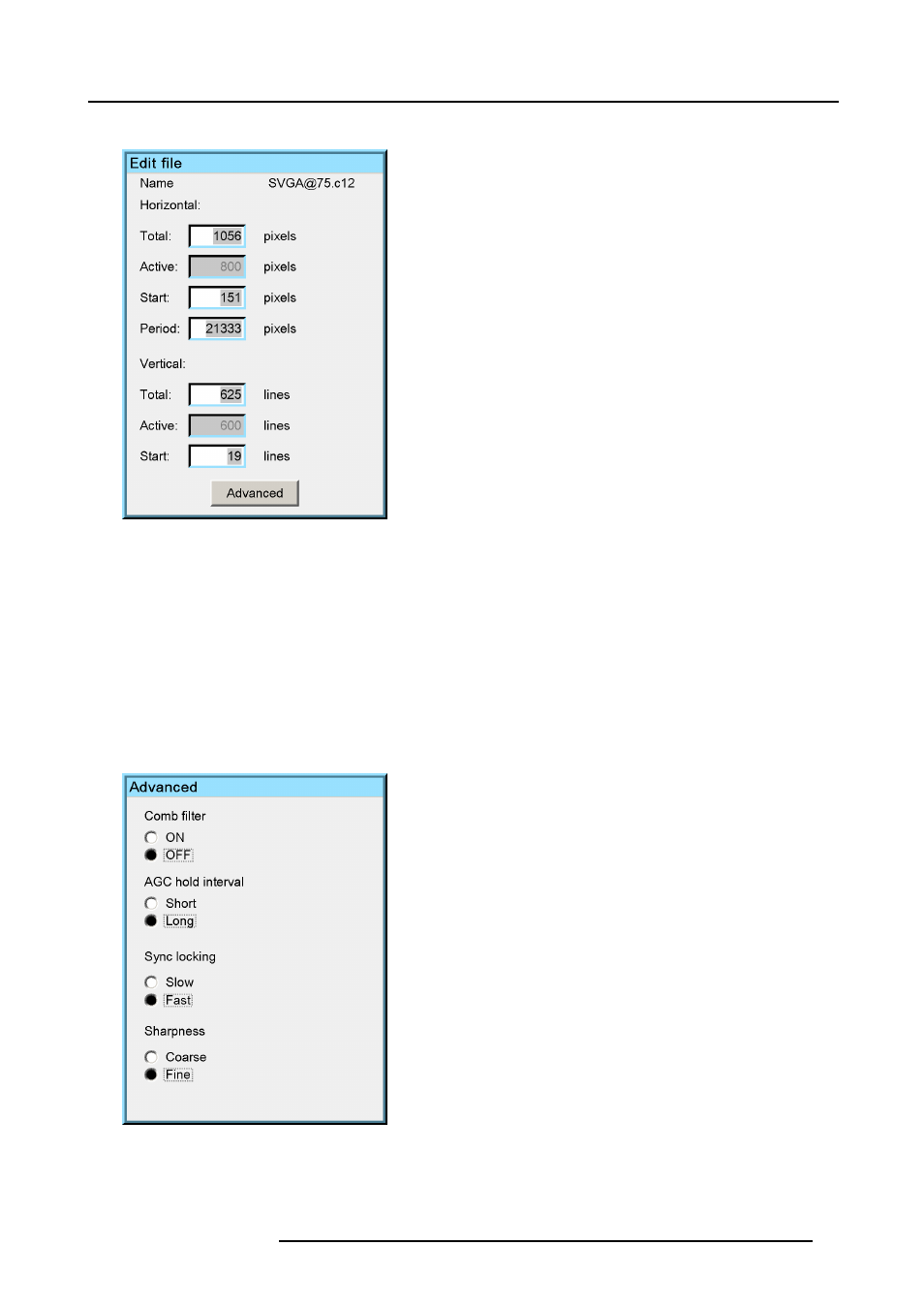

A dialog box is displayed
Image 6-92
9. Use ←or →, the numeric keys on the remote, or the keypad to edit and change the values, confirm with ENTER
Note: greyed out fields can not be updated (total pixels)
Which items can be adjusted ?
The following items can be adjusted :
• Active horizontal pixels
• Horizontal start in pixels
• Horizontal period in ns
• Active vertical lines
• Vertical start in lines
Advanced video settings
Image 6-93
The advanced button enables the advanced settings for a video source.
R59770134 ID LR-6 27/05/2011 91
