6. Advanced
How to adjust
1. Press MENU to activate the menu bar.
2. Press → to select the Display setup item.

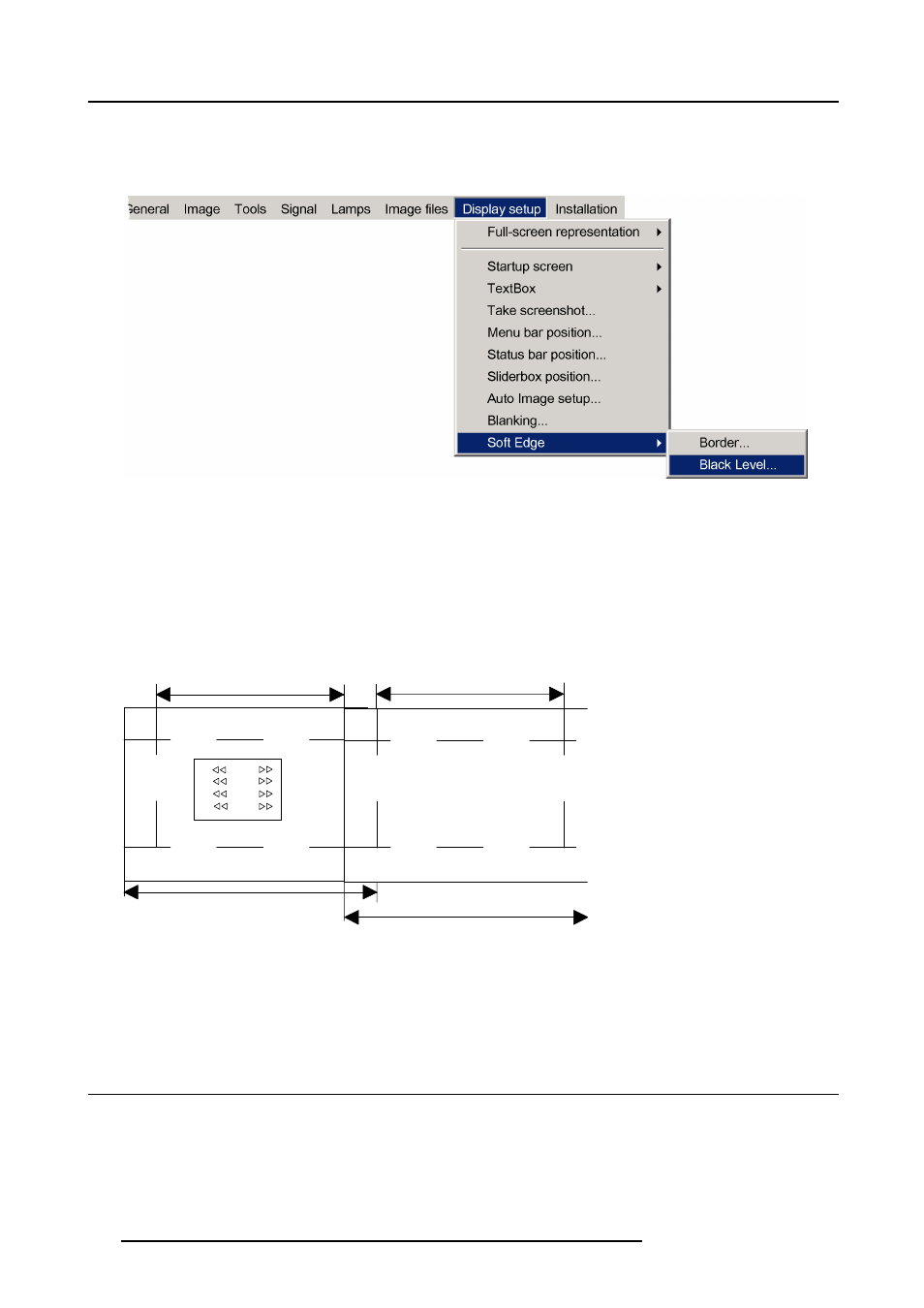

Image 6-121
3. Press ↓ to pull down the Display setup menu.
4. Use ↑ or ↓ to select Soft Edge.
5. Press → to select the Soft Edge item.
6. Use ↑ or ↓ to select Black level.
7. Press ENTER to select.
A dialog box will be displayed on a black level background.
Adjust the black level of area A until the black level of area A, B and C or equal (area C should be adjusted on the second
projector).
A C B
12
13
11
R
G
B
RGB
Image 1 Image 2
Image 6-122
Black level adjustment
Use the up or down arrow key to select the adjustment (All, Red, Green or Blue)
Use the left or right arrow key to select the adjustment direction and speed.
Press ENTER to increment or decrement the value.
6.10 Installation
Overview
• Lens adjustments
• Security
• Change password
