6. Advanced
G1
G2
R1
R2
B1
W1
0
x
y
.1 .2 .3 .4 .5 .6 .7
.1
.2
.3
.4
.5
.6
.7
.8
B2
W2
Gc
Wc
Yc
Rc
Mc
Bc
Cc

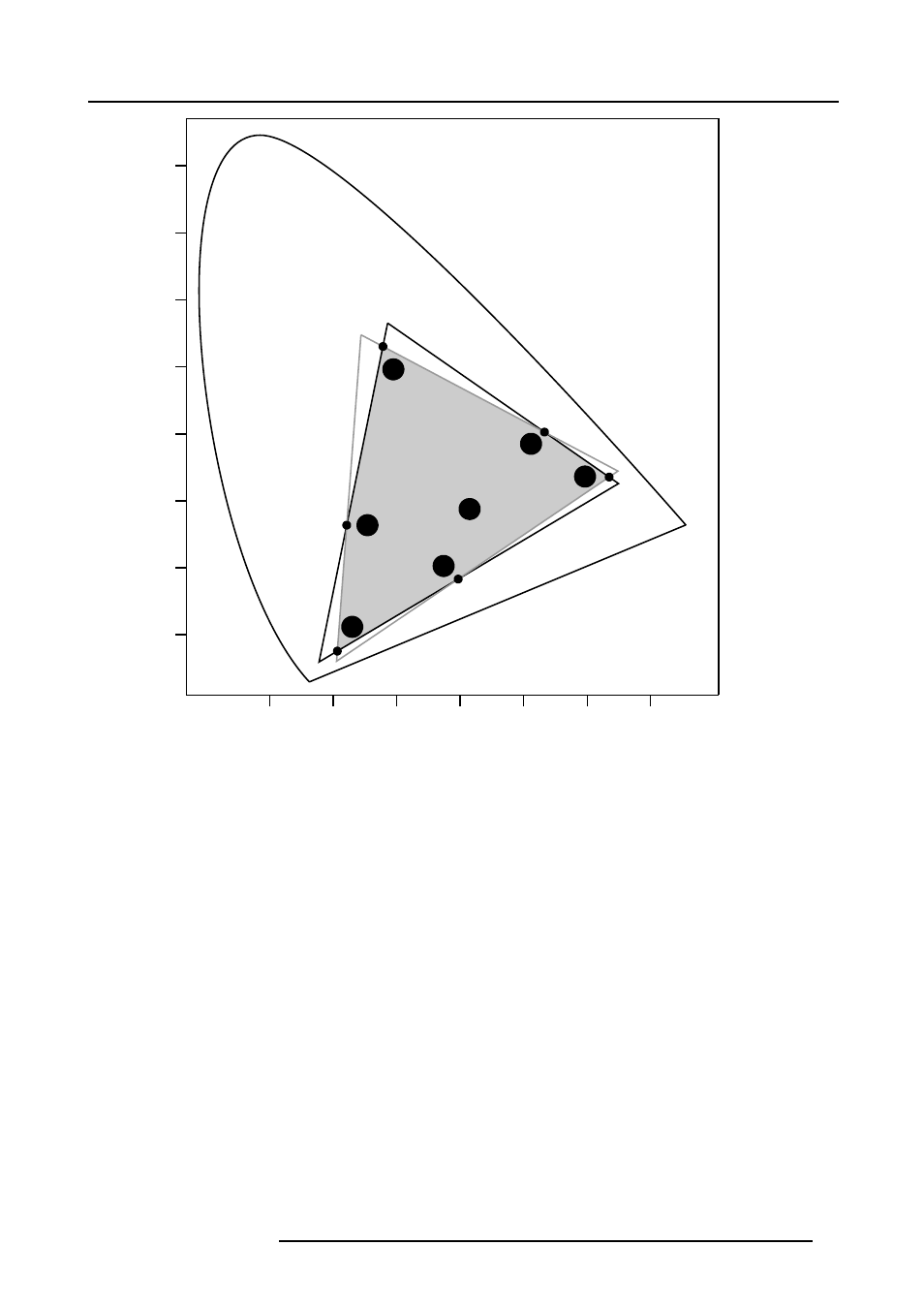

Image 6-44
The Common Color Gamut
R1 Red projector 1
R2 Red projector 2
G1 Green Projector 1
G2 Green Projector 2
B1
Blue Projector 1
B2 Blue Projector 2
W1 White Projector 1
W2 White Projector 2
Rc
Red Common Color Gamut
Gc Green Common Color Gamut
Bc
Blue Common Color Gamut
Cc Cyan Common Color Gamut
Mc Magenta Common Color Gamut
Yc
Yellow Common Color Gamut
Wc White Common Color Gamut
The following parameters can be adjusted within DynaColor™:
•
the x, y coordinates and g(Light Output) of the 6 Common Color Gamut perimeter points.
• the x, y coordinates and g(Light Output) of the White point of the Common Color Gamut.
How to Start up Dynacolor™?
1. Press the MENU key to activate the Menu bar.
2. Push the cursor key ← or → to highlight Image in the menubar.
3. Push the ↓ key to pull down the Image menu.
4. Push the cursor key ↑ or ↓ to highlight Dynacolor and press ENTER to select.
