5. Getting started

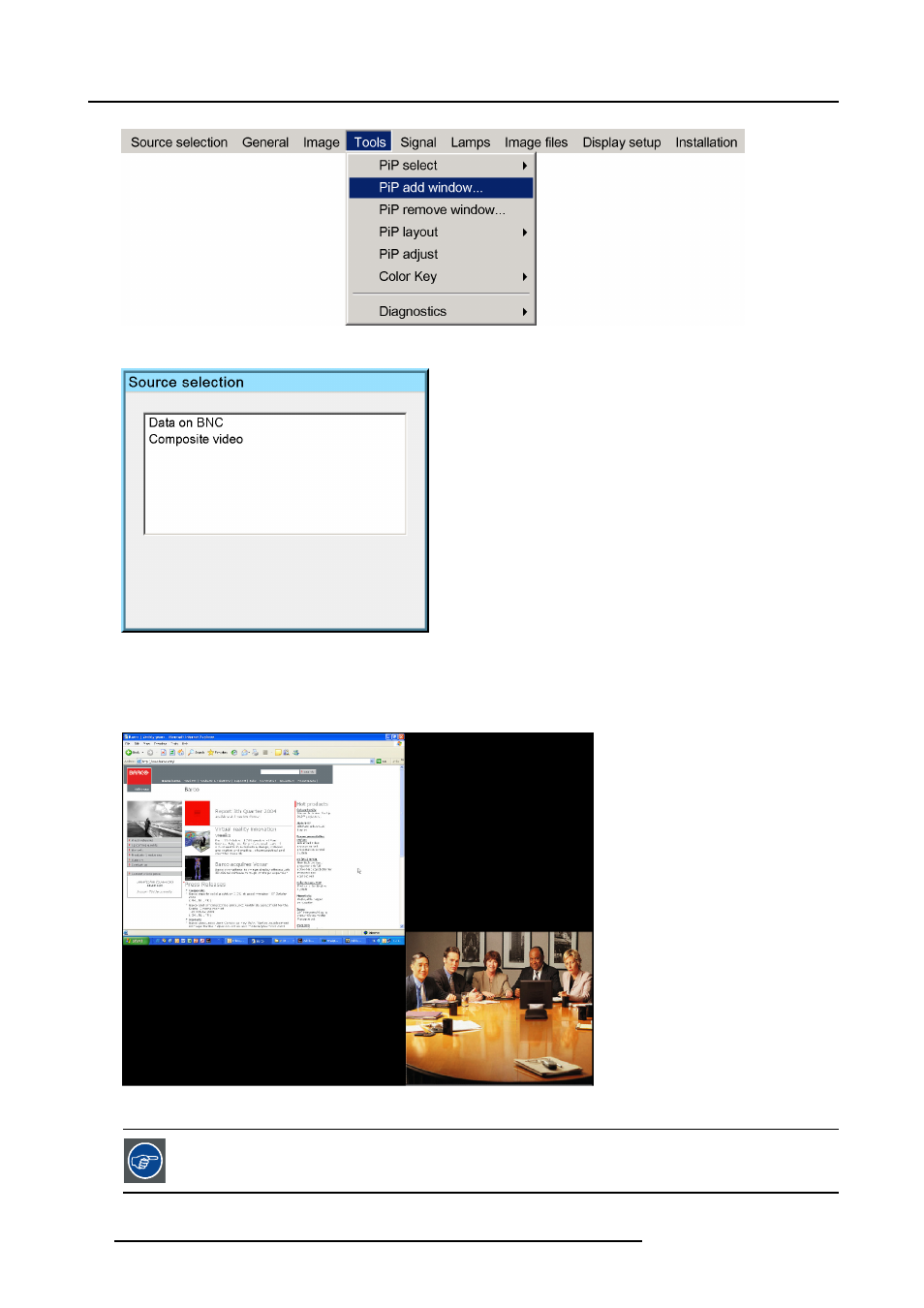

Image 5-3
Image 5-4
3. Follow the instruction wizard (size, position, order)
4. Repeat the previous steps to add the RGB source
5. Save the PiP layout in the PiP layout/Save as menu by typing a new name
Image 5-5
Video/Data PiP layout
The added source(s) should be displayed with the right settings thanks to AutoImage. If it’s not the case (in
case of some non standard source specifications) see Image files in the Advanced chapter.
38 R59770134 ID LR-6 27/05/2011
