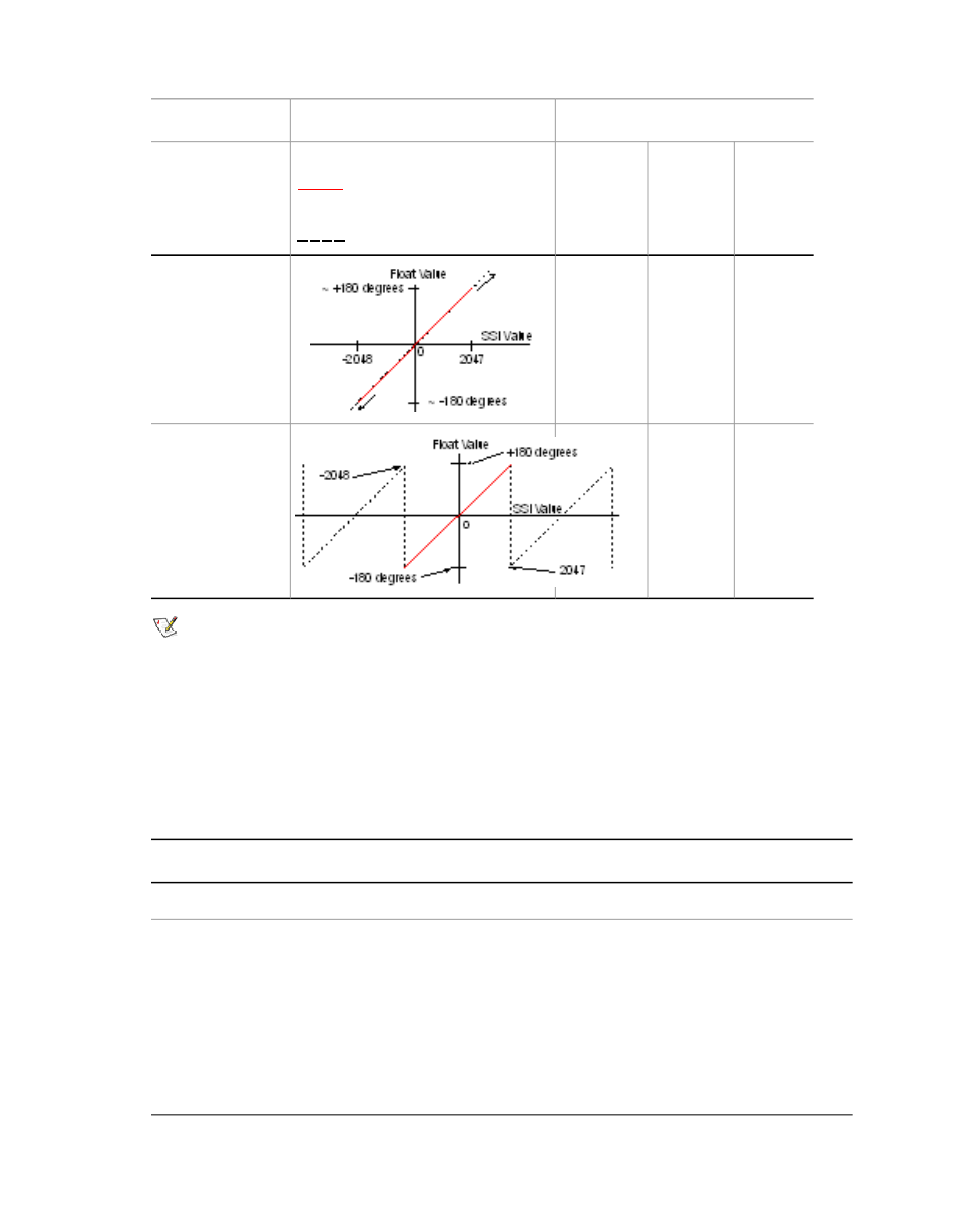

Encoder Settings Encoder Signal Range Application
Position
Filter Turns
Counting Type Power-up Signal range
Operating Signal range
Yes True Signed Position-Limited
Rotation
Power-up signal
range: -180 to
+180 degrees
See Note False Signed Unlimited Rotation
Operating-signal
range: -180 to
+180 degrees
Note:
Rotary SSI/Gurley devices with Turns Counting = False: filtering may be undesirable because
as the signal is filtered, the angle step that occurs every 360 degrees causes ringing due
to the high-frequency content of the step. Filtering occurs normally if the encoder is operated
in a range that does not include the angle step.
Model 494.55 4-Input Igel (Wheel Force Transducer) Card
You can configure this card to condition a 4-Input Igel Wheel Force Transducer.
Description Item
494.55 4-Input Igel icon
Debounce Filter: specifies the filtering applied to the input signal.
Debounce filtering is typically used to clean up the shape of the Encoder Properties
pulse in situations where there are long cable runs or signals with
long rise and fall times (for example, a proximity switch counting
gear teeth) with noise riding on the signal.
The default setting (40 ns) works for most applications. If the noise
results in extra counts, you may need a longer debounce time
setting. If the debounce setting is too long, the debounce filter will
filter out the encoder signal.
