Bridge Type Settings
Model 494.xx DUCs include settings that define the bridge type (full, half, quarter).
Shunt Settings
Model 494.xx DUCs include settings that define where the shunt calibration resistor is applied.
Analog Input Filter Settings
Mezzanine cards that include analog inputs (DUCs, A/D Converter, Encoder, and conditioners)
includes filter settings that you may want to change for custom applications.
Encoder Type Settings
Each Encoder card requires a number of hardware settings that you must configure before
attempting to use the system.
Hydraulic Interface Settings
Various HSM, HPU, and system boards have hydraulic interface settings that you must define
before attempting to run the system. These settings vary with each board and may include first
on/last off, proportional-on/off solenoid operation, and proportional rate settings.

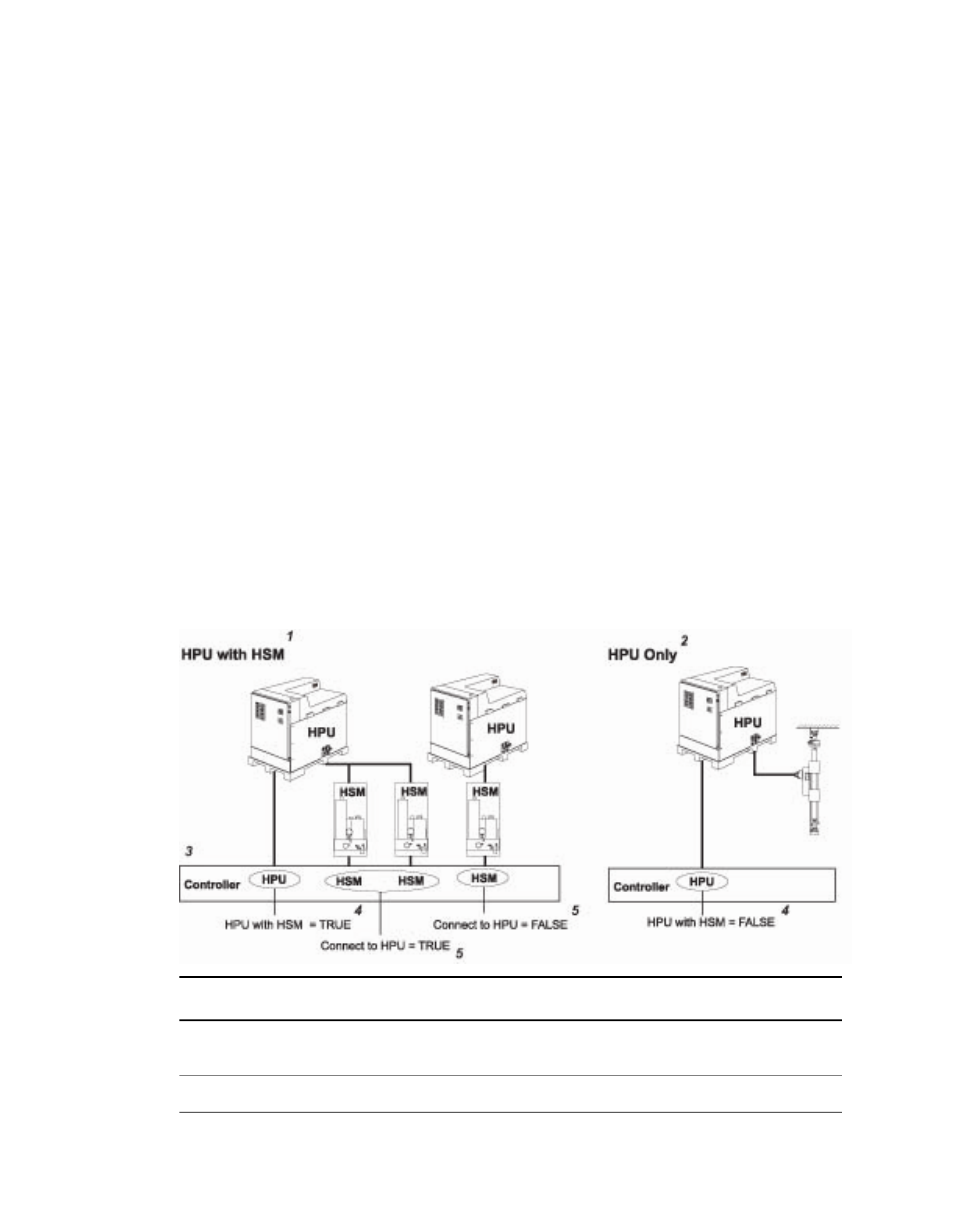

The drawing shows examples for the following hydraulic interface settings:
Description Number callout in graphic - Item
Hydraulic Power Unit (HPU) with Hydraulic Service
Manifold (HSM) 1 - HPU with HSM
Hydraulic Power Unit (HPU) only 2 - HPU Only
