10 9 8 7 6 5 4 3 2 1 Slot
Number
C2E C2C C2A C28 C26 C24 C22 C20 PPC Address

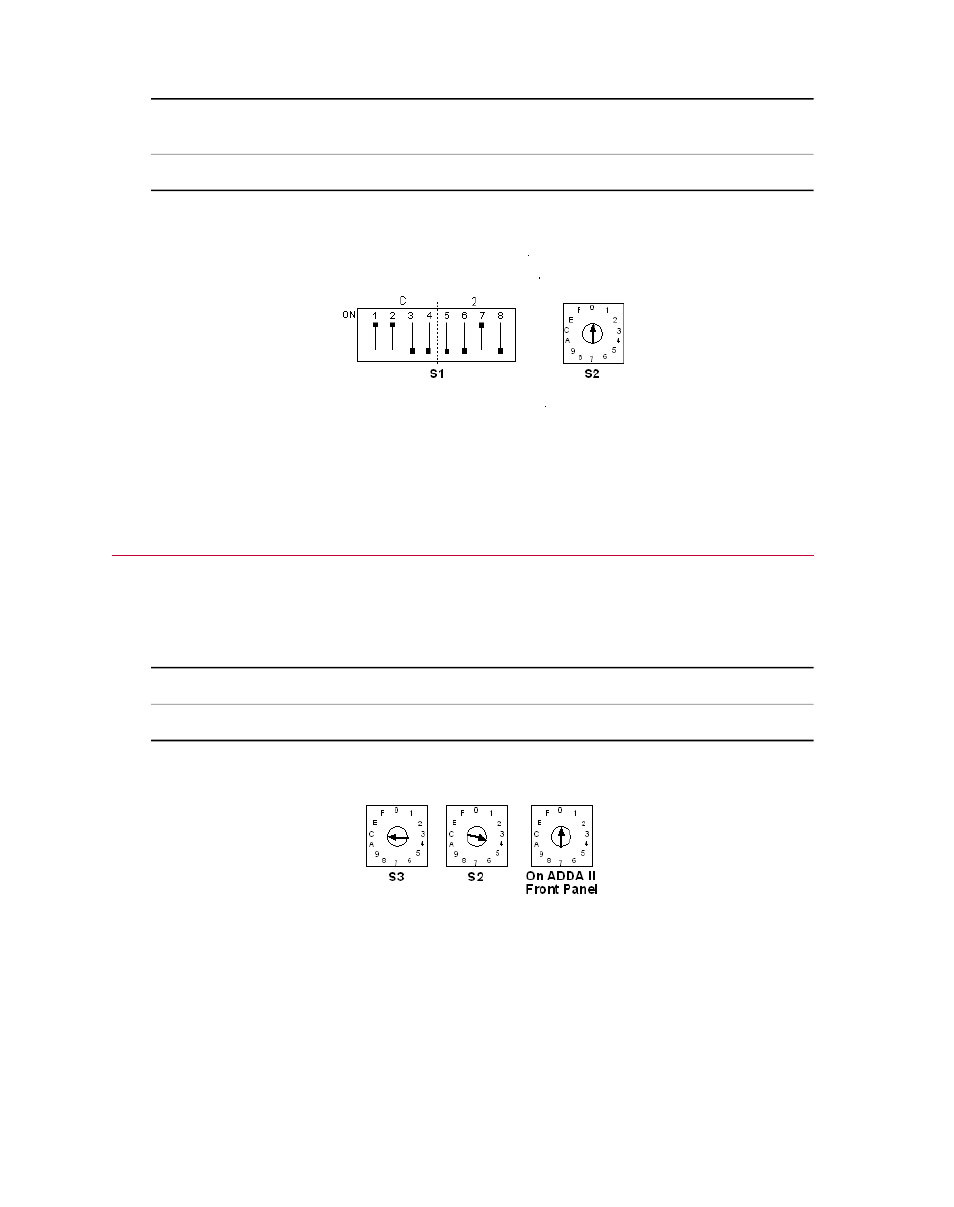

The DIP switch settings for address C20 is shown below. Set the rotary DIP switch to complete
I/O Carrier board addressing
How to Set ADDA II Board Address (FlexTest
GT, TestStar IIm, FlexTest IIm)
Set the board’s rotary DIP switches (S3, S2) and the front-panel rotary DIP switch on each ADDA
II board to the address that matches the chassis slot number where the board is installed (see
below).
10 9 8 7 6 5 4 3 2 1 Slot Number
C4C C4A C44 C43 C42 C41 C40 PPC PPC Address
The DIP switch settings for address C40 are shown below. Set the front-panel DIP switch to
complete ADDA II board addressing.
88 MTS Series 793 Utility Software
HWI Hardware Settings
