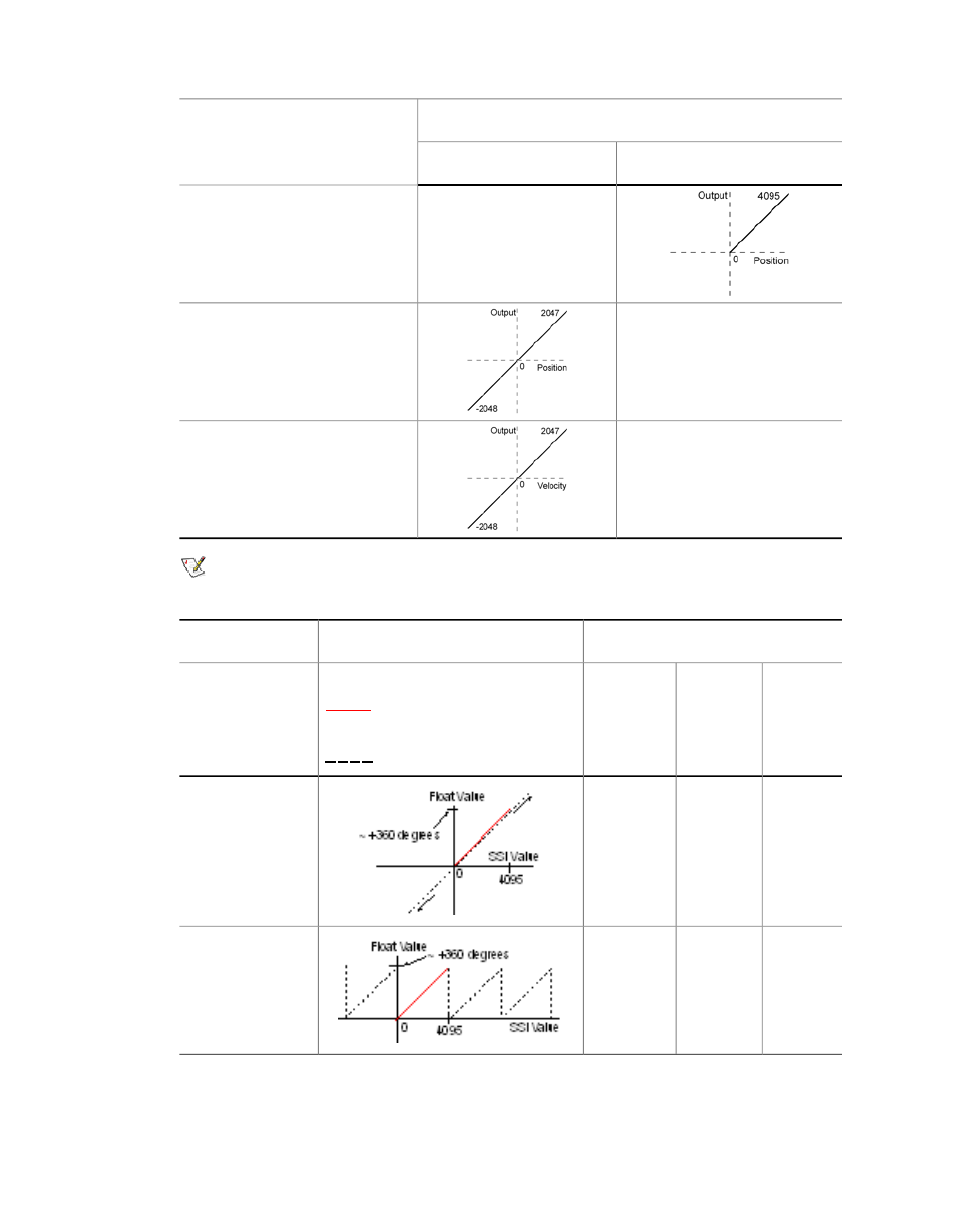

Encoder Settings Application
Type = Unsigned Type = Signed
N/A Physical Zero Position at Mid
Stroke (device dependent)
N/A Velocity from Device
(Temposonics R option)
Note:
The graphs shown above represent a 12-bit linear device.
Encoder Settings Encoder Signal Range Application
Position
Filter Turns
Counting Type Power-up Signal range
Operating Signal range
Yes True Unsigned Position-Limited
Rotation
Power-up signal
range: 0 to 360
degrees
See Note False Unsigned Unlimited Rotation
Operating-signal
range: 0 to 360
degrees
