Connecting function blocks
3−8
l
EDSVS9332P−EXT DE 2.0
3.1.3
Connecting function blocks
General rules
l
Assign a signal source to an input.
l
One input can have only one signal source.
l
Inputs of different function blocks can have the same signal source.
l
Only signals of the same type can be connected.
(
Stop!
Existing connections which are not required must be removed by reconfiguration.
Otherwise the drive cannot perform the desired function.
AND1
&
AND1−IN1
AND1−IN2
AND1−IN3
AND1−OUT
C0821/1
C0821/2
C0821/3
C0820/1
C0820/2
C0820/3
OR1
|1
OR1−IN1
OR1−IN2
OR1−IN3
OR1−OUT
C0831/1
C0831/2
C0831/3
C0830/1
C0830/2
C0830/3
NOT1
1
NOT1−OUT
NOT1−IN
C0841
NOT2
1
NOT2−OUT
NOT2−IN
C0843
C0840
C0842
t
0
DIGDEL1−IN
C0724
DIGDEL1−OUT
DIGDEL1
C0721
C0720
C0723
Connection not possible
Connection is possible
X

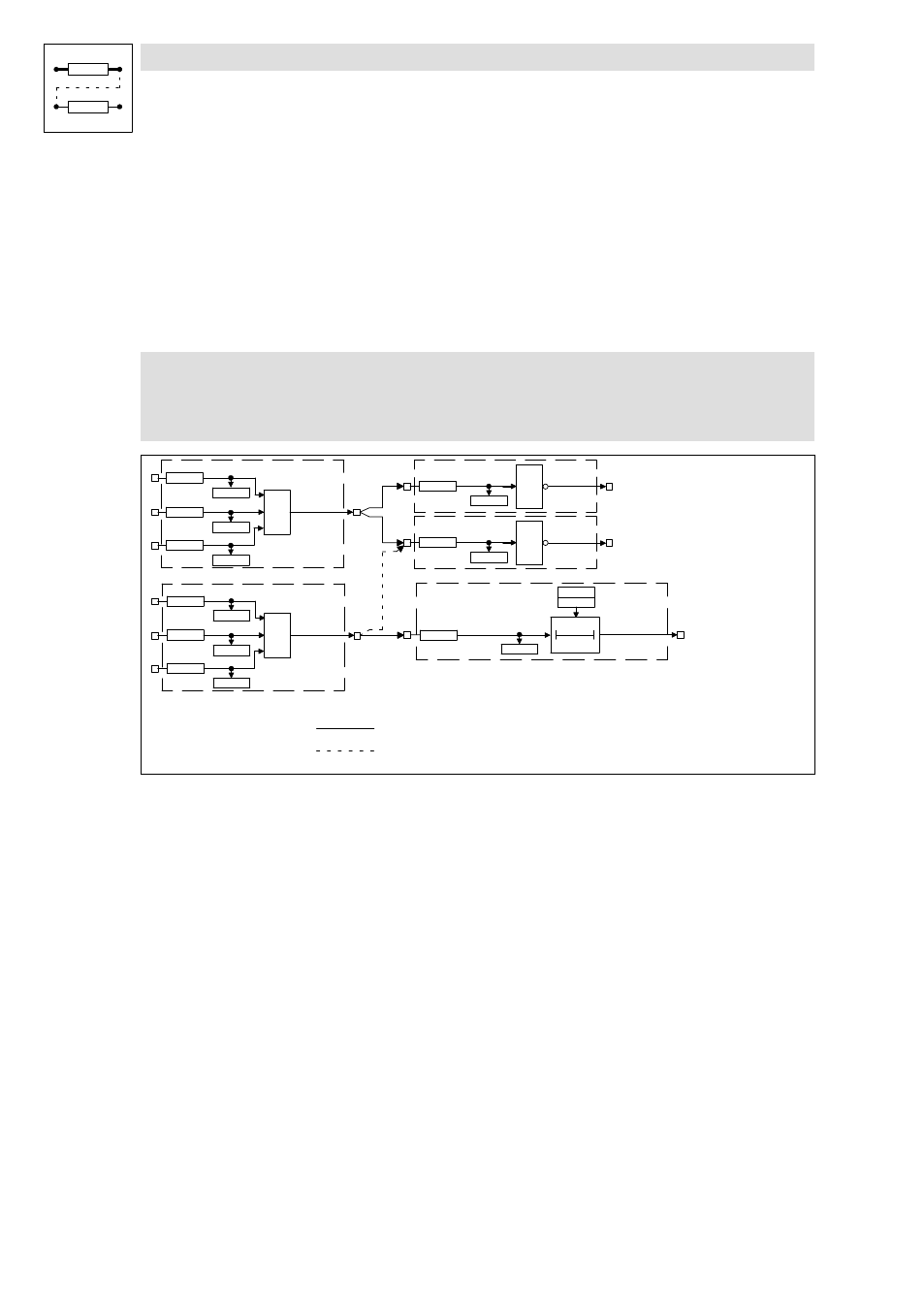

Fig. 3−2
Correct connection of function blocks
