Page 269: Function blocks

Function library
Function blocks
3.5.53
Phase integrator (PHINT)
3−241
l
EDSVS9332P−EXT DE 2.0
3.5.53
Phase integrator (PHINT)
Purpose
Integrates a speed or a velocity to a phase (distance). The integrator can maximally accept ±32000
encoder revolutions.
PHINT3 can recognise a relative distance.
C 0 9 9 2
P H I N T 1
P H I N T 1 - O U T
P H I N T 1 - I N
C 0 9 9 3
P H I N T 1 - R E S E T
C 0 9 9 0
C 0 9 9 1
± 3 2 0 0 0
R e v o l u t i o n
P H I N T 1 - F A I L

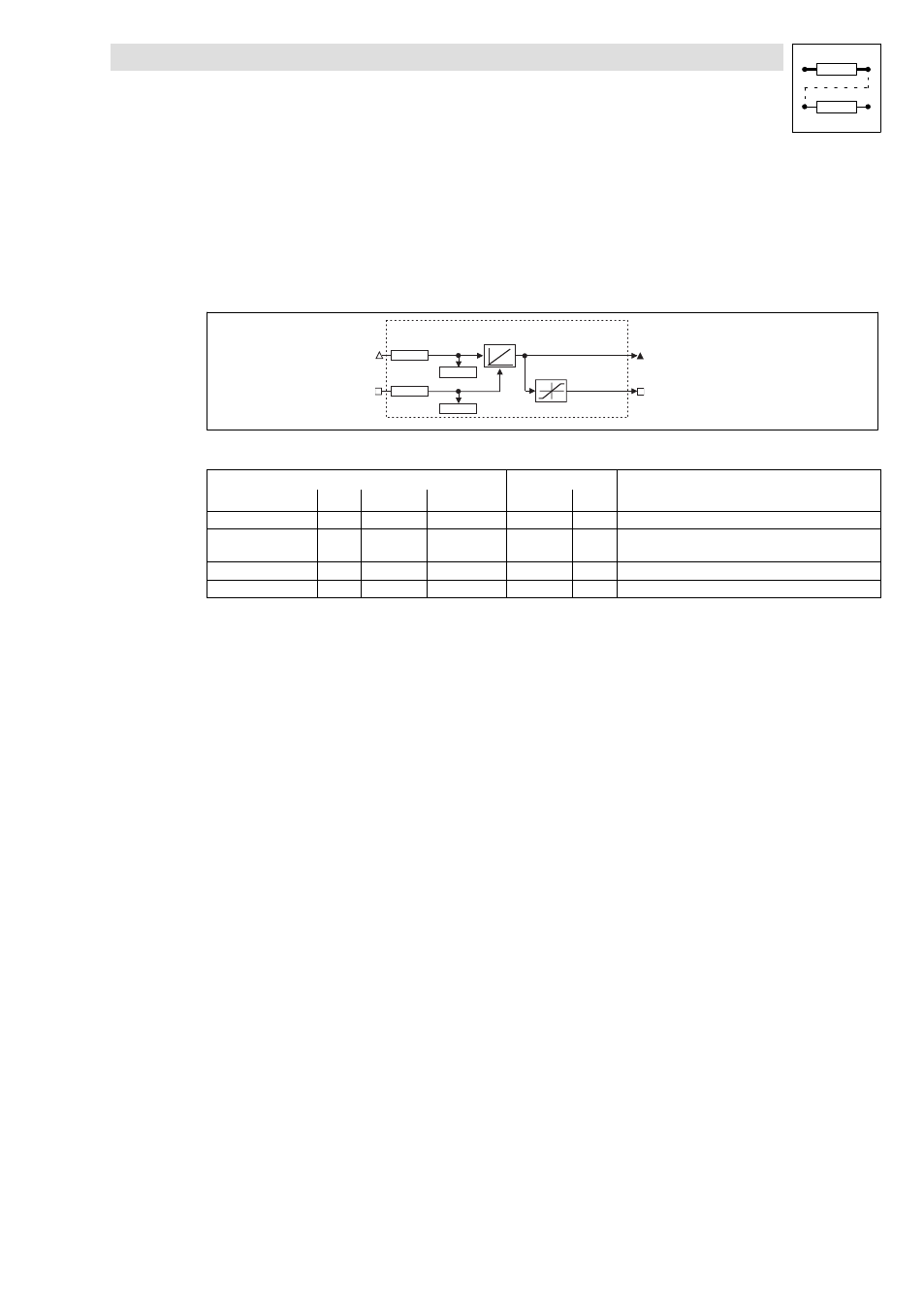

Fig. 3−189
Phase integrator (PHINT1)
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
PHINT1−IN
phd
C0992
dec [rpm]
C0990
4
1 revolution = 65536 increments
PHINT1−RESET
d
C0993
bin
C0091
2
HIGH = sets the phase integrator to 0 and PHINT1−FAIL
= LOW
PHINT1−OUT
ph
−
−
−
−
65536 inc = 1 encoder revolution, overflow is possible
PHINT1−FAIL
d
−
−
−
−
HIGH = overflow
Function
l
constant input value
l
Scaling of PHINTx−OUT
