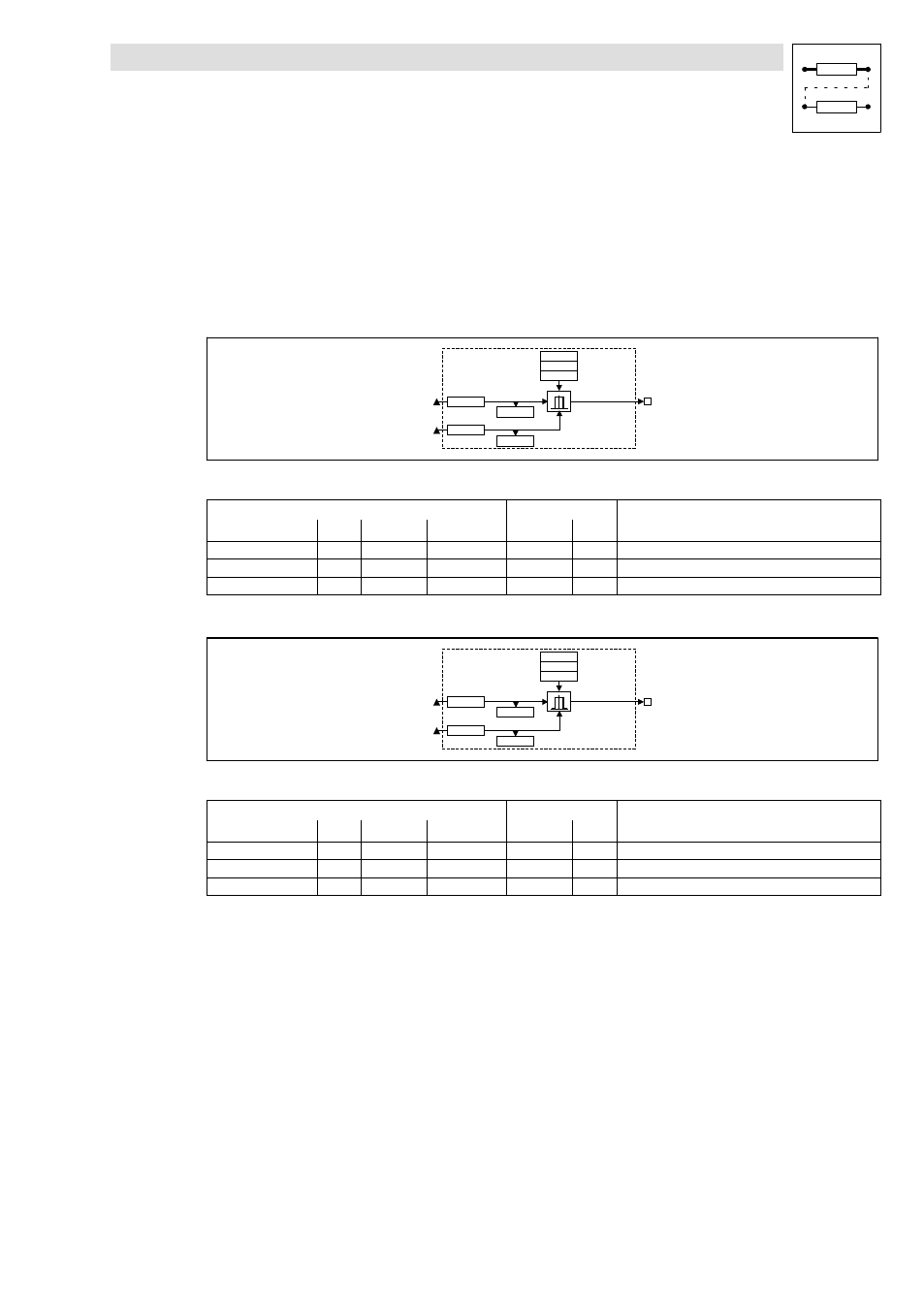

Function library
Function blocks
3.5.17 Long comparator (CMPPH)
3−139
l
EDSVS9332P−EXT DE 2.0
3.5.17 Long comparator (CMPPH)
Three FBs are available (CMPPH1 ... CMPPH3).
Purpose
Comparison of two phase signals or their absolute values to achieve triggers.
CMPPH1
C1672
C1670
C1674/1
CMPPH1
CMPPH1-OUT CMPPH1-IN1
C1674/2
CMPPH1-IN2
C1673/1
C1673/2
C1671
Fig. 3−89 Function block CMPPH1
Signal Source Note
Name Type DIS DIS format CFG List
CMPPH1−IN1 ph C1674/1 dec [inc] C1673/1 3 −
CMPPH1−IN2 ph C1674/2 dec [inc] C1673/2 3 −
CMPPH1−OUT d − − − − −
CMPPH2
C1677
C1675
C1679/1
CMPPH2
CMPPH2-OUT CMPPH2-IN1
C1679/2
CMPPH2-IN2
C1678/1
C1678/2
C1676
Fig. 3−90 Function block CMPPH2
Signal Source Note
Name Type DIS DIS format CFG List
CMPPH2−IN1 ph C1679/1 dec [inc] C1678/1 1 −
CMPPH2−IN2 ph C1679/2 dec [inc] C1678/2 1 −
CMPPH2−OUT d − − − − −
