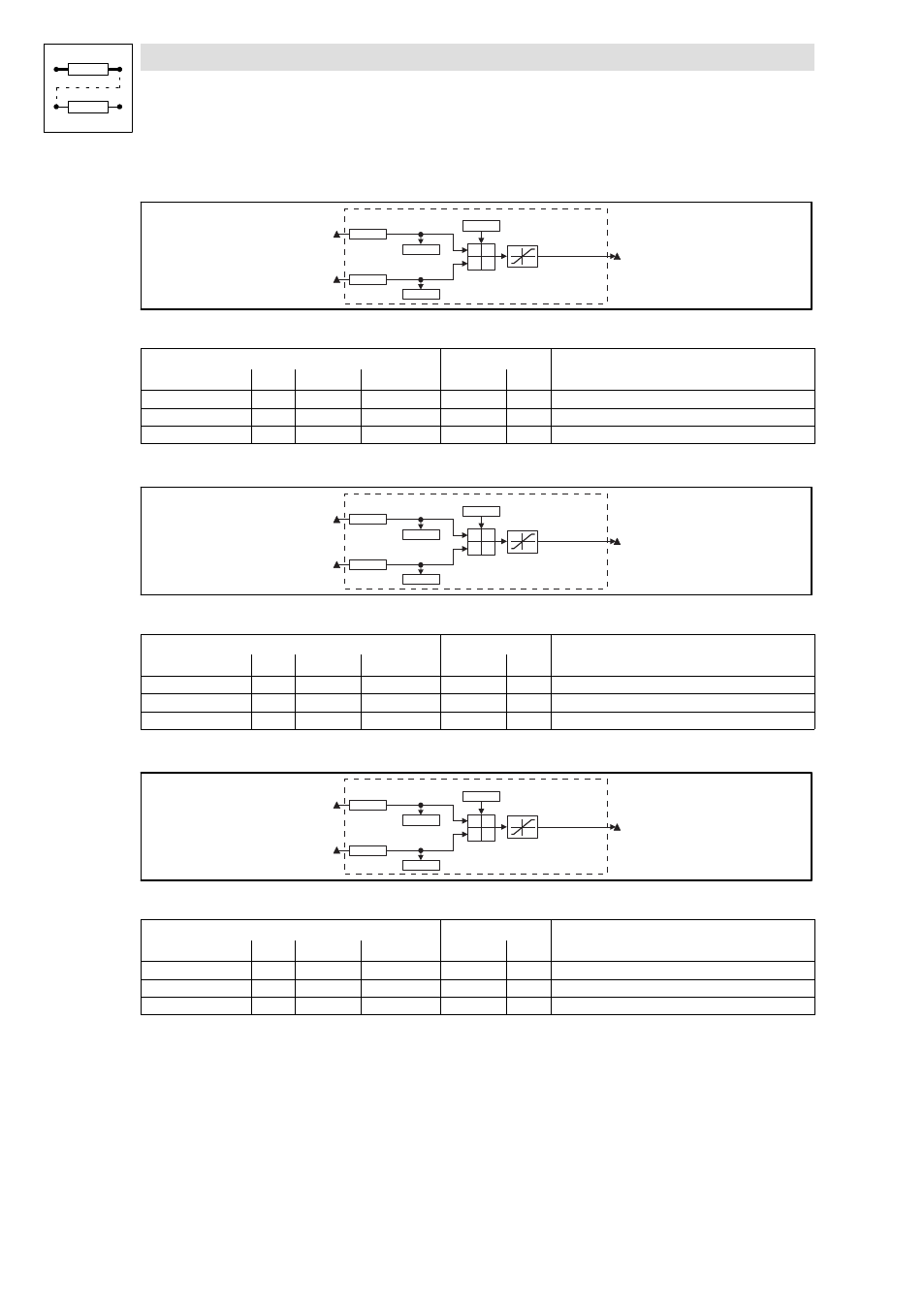

Page 140: Aritph4, Aritph5, Aritph6
Function library
Function blocks
3.5.10
Arithmetic block (ARITPH)
3−112
l
EDSVS9332P−EXT DE 2.0
ARITPH4
+
-
*
/
C1550
x
y
ARITPH4
ARITPH4-OUT
C1552/1
±2 -1
30
C1552/2
ARITPH4-IN1
Mode
ARITPH4-IN2
C1551/1
C1551/2
Fig. 3−66
Function block ARITPH4
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
ARITPH4−IN1
ph
C1552/1
dec [inc]
C1551/1
3
−
ARITPH4−IN2
ph
C1552/2
dec [inc]
C1551/2
3
−
ARITPH4−OUT
ph
−
−
−
−
ARITPH5
+
-
*
/
C1555
x
y
ARITPH5
ARITPH5-OUT
C1557/1
±2 -1
30
C1557/2
ARITPH5-IN1
Mode
ARITPH5-IN2
C1556/1
C1556/2
Fig. 3−67
Function block ARITPH5
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
ARITPH5−IN1
ph
C1557/1
dec [inc]
C1556/1
3
−
ARITPH5−IN2
ph
C1557/2
dec [inc]
C1556/2
3
−
ARITPH5−OUT
ph
−
−
−
−
ARITPH6
+
-
*
/
C1560
x
y
ARITPH6
ARITPH6-OUT
C1562/1
±2 -1
30
C1562/2
ARITPH6-IN1
Mode
ARITPH6-IN2
C1561/1
C1561/2
Fig. 3−68
Function block ARITPH6
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
ARITPH6−IN1
ph
C1562/1
dec [inc]
C1561/1
3
−
ARITPH6−IN2
ph
C1562/2
dec [inc]
C1561/2
3
−
ARITPH6−OUT
ph
−
−
−
−
