3.4.16 POS−PFO (Program Function Outputs)
Purpose
l Output of digital signals for controlling machine functions and operating status displays, e. g.
start slave drive or activate spray jet.
POS-PFO1
POS-PFO2
POS-PFO3
POS-PFO4
POS-PFO5
POS-PFO6
POS-PFO7
POS-PFO8
POS-PFO9
POS-PFO10
POS-PFO11
POS-PFO12
POS-PFO13
POS-PFO14
POS-PFO15
POS-PFO16
POS-PFO17
POS-PFO18
POS-PFO19
POS-PFO20
POS-PFO21
POS-PFO22
POS-PFO23
POS-PFO24
POS-PFO25
POS-PFO26
POS-PFO27
POS-PFO28
POS-PFO29
POS-PFO30
POS-PFO31
POS-PFO32
C1372/1
C1372/2
POS-PFO
LOW-
WORD
HIGH-
WORD
9300pos019

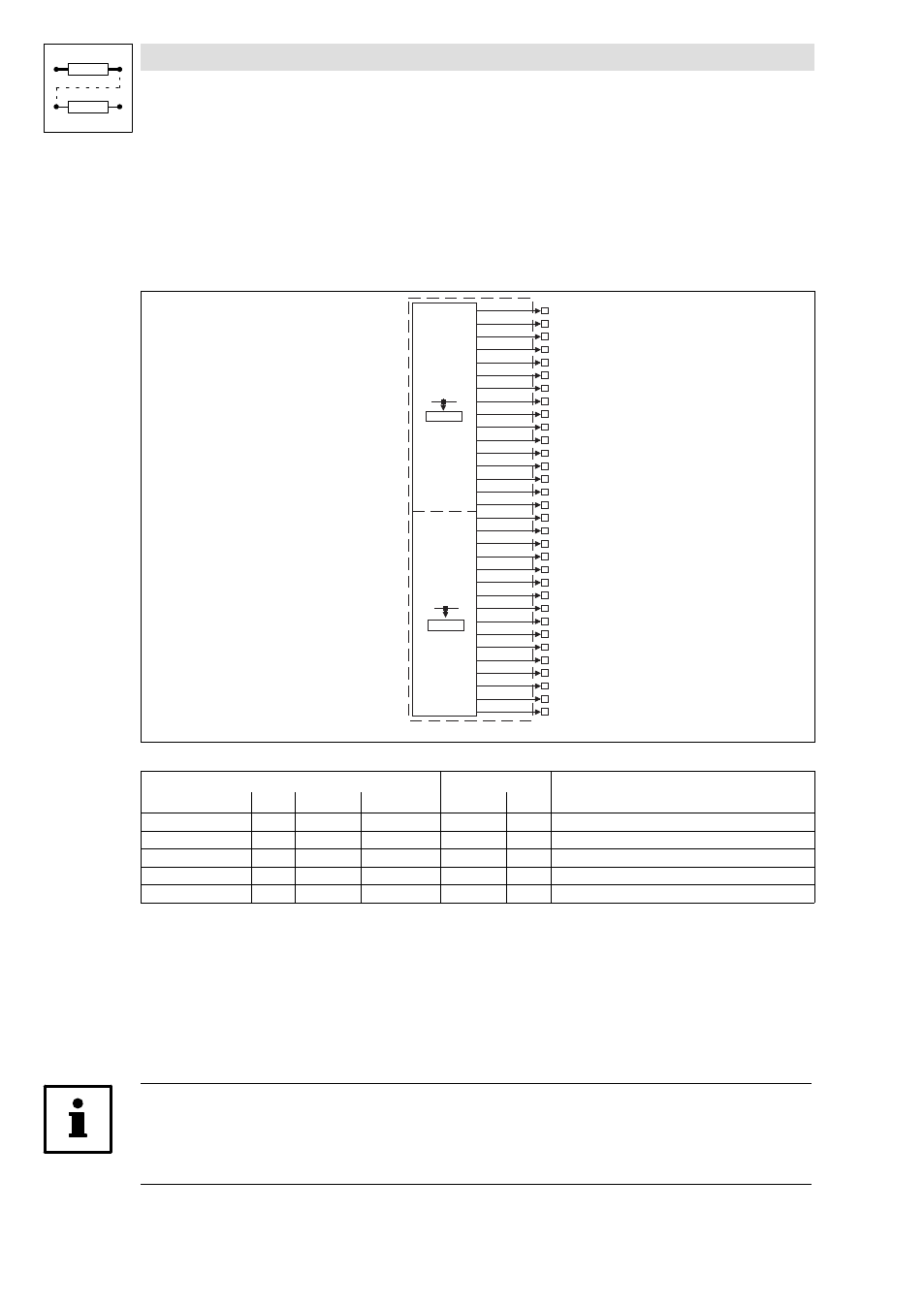

Fig. 3−42 POS−PFO, Program Function Outputs
Signal Source Note
Name Type DIS DIS format CFG List
POS−PFO1 d − − − − −
... d − − − − −
POS−PFO32 d − − − − −
LOW−WORD − C1372/1 hex − − −
HIGH−WORD − C1372/2 hex − − −
Function
l The PFO are switched during PS processing through the following program functions:
Switch output before positioning",
Switch output after positioning".
l PFO can be used as single PFOs, altogether or in groups of 8 PFOs.
l PFOs are available as digital signal sources. They can be output via digital output terminals
(DIGOUT) (function block interconnection).
Tip!
The function block POS−PFO is part of POS. Therefore it is not necessary to explicitly transfer it to
the processing.
