Function library
Function blocks
3.5.39 Freely assignable input variables (FEVAN)
3−196
l
EDSVS9332P−EXT DE 2.0
Signal Source Note
Name Type DIS DIS format CFG List
FEVAN2−IN a C1508 dec C1506 1 Input value
FEVAN2−LOAD d C1509/1 bin C1507/1 2 A LOW−HIGH edge transmits the converted signal to the
target code.
FEVAN2−BUSY−IN d C1509/2 bin C1507/2 2 HIGH = transmitting
FEVAN2−FAIL−IN d C1509/3 bin C1507/3 2 HIGH = transmission failed
FEVAN2−BUSY d − − − − HIGH = transmitting
FEVAN2−FAIL d − − − − HIGH = transmission failed
A LOW−HIGH edge at FEFAN2−LOAD switches
FEFAN2−FAIL = LOW.
− − C1500 − − − Display of the converted signal
FEVAN3-IN
C1518
C1516
C1513
C1514
CTRL
+
+
C1515
S&H
C1519/1
FEVAN3-LOAD
C1517/1
C1510
Code/Subcode
(Cxxxx/yy)
C1512
C1511
FEVAN3-BUSY
FEVAN3
1
C1519/2
FEVAN3-BUSY-IN
C1517/2
1
C1519/3
FEVAN3-FAIL-IN
C1517/3
FEVAN3-FAIL

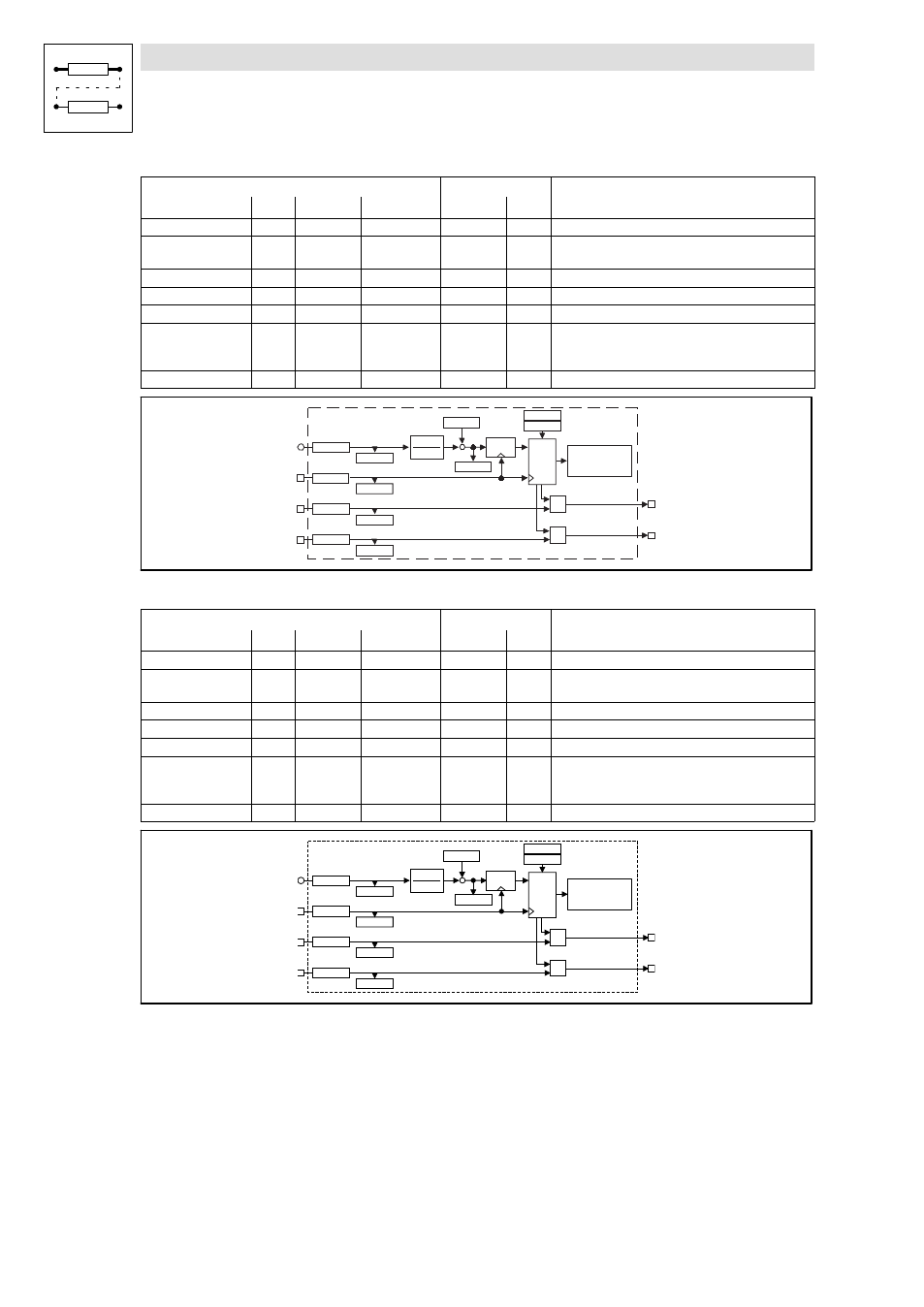

Fig. 3−147 Freely assignable input variables (FEVAN3)
Signal Source Note
Name Type DIS DIS format CFG List
FEVAN3−IN a C1518 dec C1516 1 Input value
FEVAN3−LOAD d C1519/1 bin C1517/1 2 A LOW−HIGH edge transmits the converted signal to the
target code.
FEVAN3−BUSY−IN d C1519/2 bin C1517/2 2 HIGH = transmitting
FEVAN3−FAIL−IN d C1519/3 bin C1517/3 2 High = transmission failed
FEVAN3−BUSY d − − − − HIGH = transmitting
FEVAN3−FAIL d − − − − HIGH = transmission failed
A LOW−HIGH edge at FEFAN3−LOAD sets FEFAN3−FAIL
= LOW.
− − C1510 − − − Display of the converted signal
FEVAN4-IN
C1528
C1526
C1523
C1524
CTRL
+
+
C1525
S&H
C1529/1
FEVAN4-LOAD
C1527/1
C1520
Code/Subcode
(Cxxxx/yy)
C1522
C1521
FEVAN4-BUSY
FEVAN4
³1
C1529/2
FEVAN4-BUSY-IN
C1527/2
³1
C1529/3
FEVAN4-FAIL-IN
C1527/3
FEVAN4-FAIL
Fig. 3−148 Freely assignable input variables (FEVAN4)
