Function library
Function blocks
3.5.66 Variable table Piece number (VTPCS)
3−275
l
EDSVS9332P−EXT DE 2.0
3.5.66 Variable table Piece number (VTPCS)
One function block FB (VTPCS) is available.
Purpose
Stores setpoint piece numbers. They are used as comparison values for the piece number function
in the program processing.
VTPCS-IN1
VTPCS
C1356/1
C1357/1
VTPCS-IN2
C1356/2
C1357/2
VTPCS-IN3
C1356/3
C1357/3
VTPCS-IN4
C1356/4
C1357/4
C1304/1
VTPCS-OUT1
C1304/2
VTPCS-OUT2
C1304/3
VTPCS-OUT3
C1304/4
VTPCS-OUT4
C1304/5
...
C1304/30
VTPCS-No 1
VTPCS-No 2
VTPCS-No 3
VTPCS-No 4
VTPCS-No 5
VTPCS-No 30
VTPCS-No 31
VTPCS-No 32
VTPCS-No 33
VTPCS-No 34
C1386/x
...

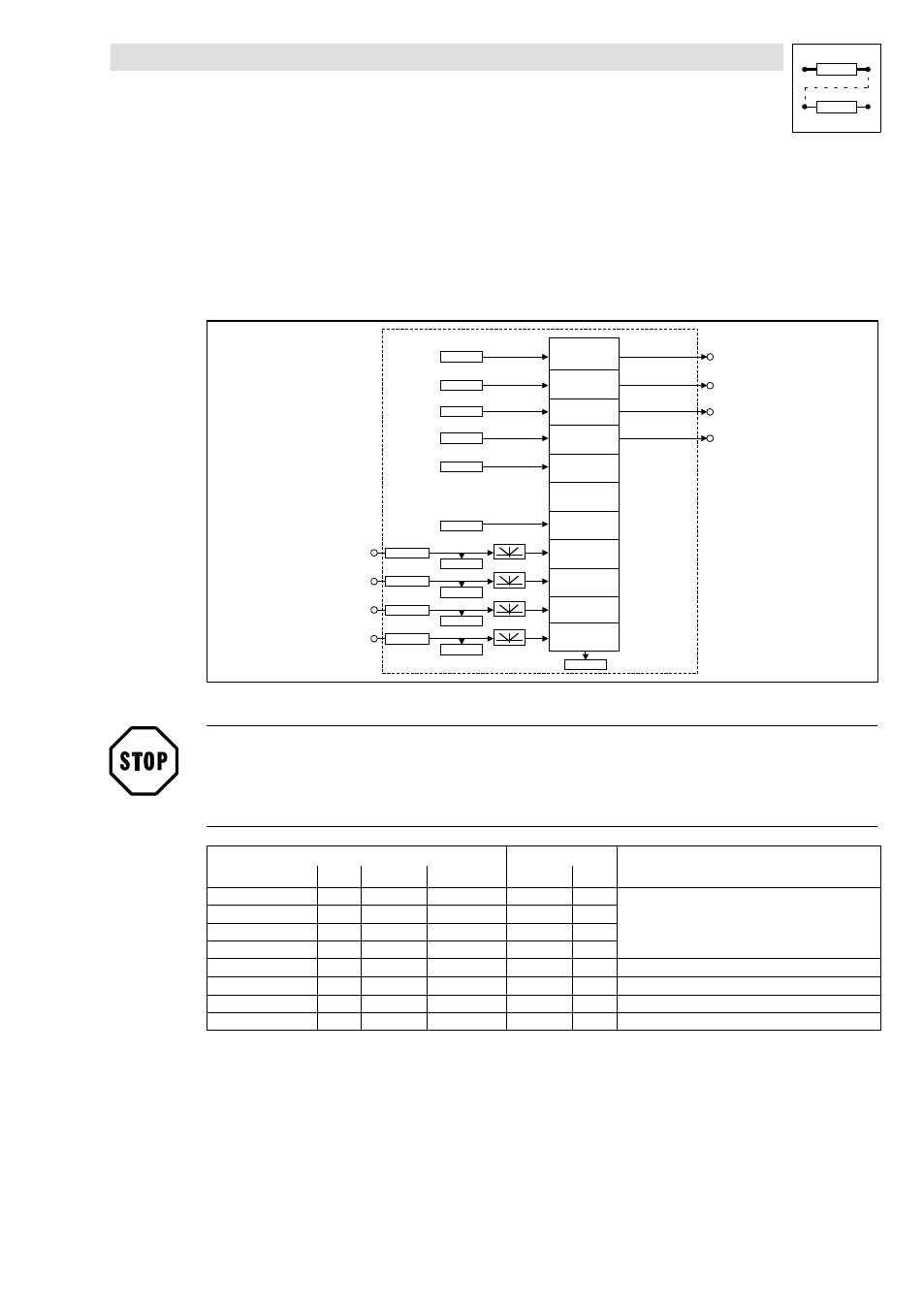

Fig. 3−219 Function block VTPCS
Stop!
If piece numbers >32767 are entered under C1304/1 to C1304/4, the outputs VTPCS−OUT1 ...
VTPCS−OUT4 must no longer be used.
Signal Source Note
Name Type DIS DIS format CFG List
VTPCS−IN1 a C1357/1 dec [inc] C1356/1 1
·
Generates the absolute value for negative values.
·
Limits the value to 32767.
VTPCS−IN2 a C1357/2 dec [inc] C1356/2 1
VTPCS−IN3 a C1357/3 dec [inc] C1356/3 1
VTPCS−IN4 a C1357/4 dec [inc] C1356/4 1
VTPCS−OUT1 a − − − − −
VTPCS−OUT2 a − − − − −
VTPCS−OUT3 a − − − − −
VTPCS−OUT4 a − − − − −
