Application examples
4.1 Example 1: Dosing system
4−3
l
EDSVS9332P−EXT DE 2.0
4.1 Example 1: Dosing system
The "Dosing system" application example describes different filling stations of a packaging machine.
The containers of these machine parts are to be filled using the least amount of space or the shortest
possible time. It is also important that the exact amount is supplied via the feed screw. Two 9300
servo position controllers with power−optimised servo motors are used as drive components.
The 9300 servo position controller contains functions which could previously only be offered by a
higher−level control (e.g. PLC). Positioning tasks which are similar to this example can easily be
achieved at minimum expense using this controller.
93XX
L2 L1 L3 -UG +UG U V W X7
X4 X5
HI LO GND 28 E1 E2 E3 E4 E5 39 A1 A2 A3 A4 59
\
B
S4
CINH
93XX
L2 L1 L3 -UG +UG U V W X7
X4 X5
HI LO GND 28 E1 E2 E3 E4 E5 39 A1 A2 A3 A4 59

‚
ƒ
„
=
9
3
9
3
A
9300std111

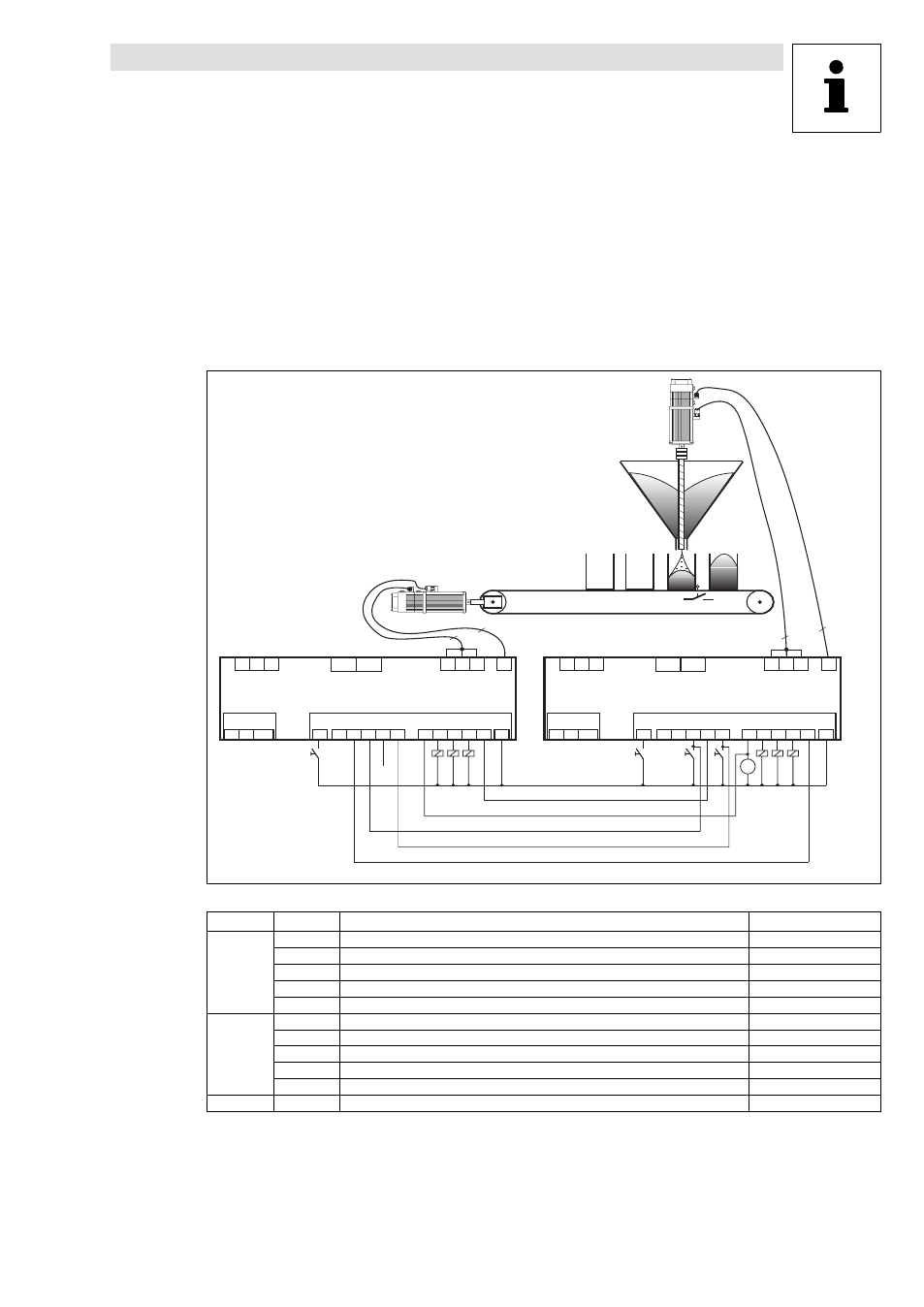

Fig. 4−1 Example of a relative positioning
Drive Input Function Connection cable
A E1 Not assigned
E2 Handshake: start feed
E3 Start program ƒ
E4 Touch probe initiator (S4) for the detection of the container position
E5 Changeover of manual / program mode
B E1 Not used
E2 Not used
E3 Start program ƒ
E4 Handshake: start dosing 
E5 Changeover of manual / program mode „
39 Reference potential ‚
