3.5.56 Ramp function generator (RFG)
Purpose
The ramp function generator limits the rise of signals.
C0671
C0672
C0676/1
RFG1
RFG1-OUT RFG1-IN
C0676/2
1
0
RFG1-SET
C0677
RFG1-LOAD
C0673
C0674
C0675

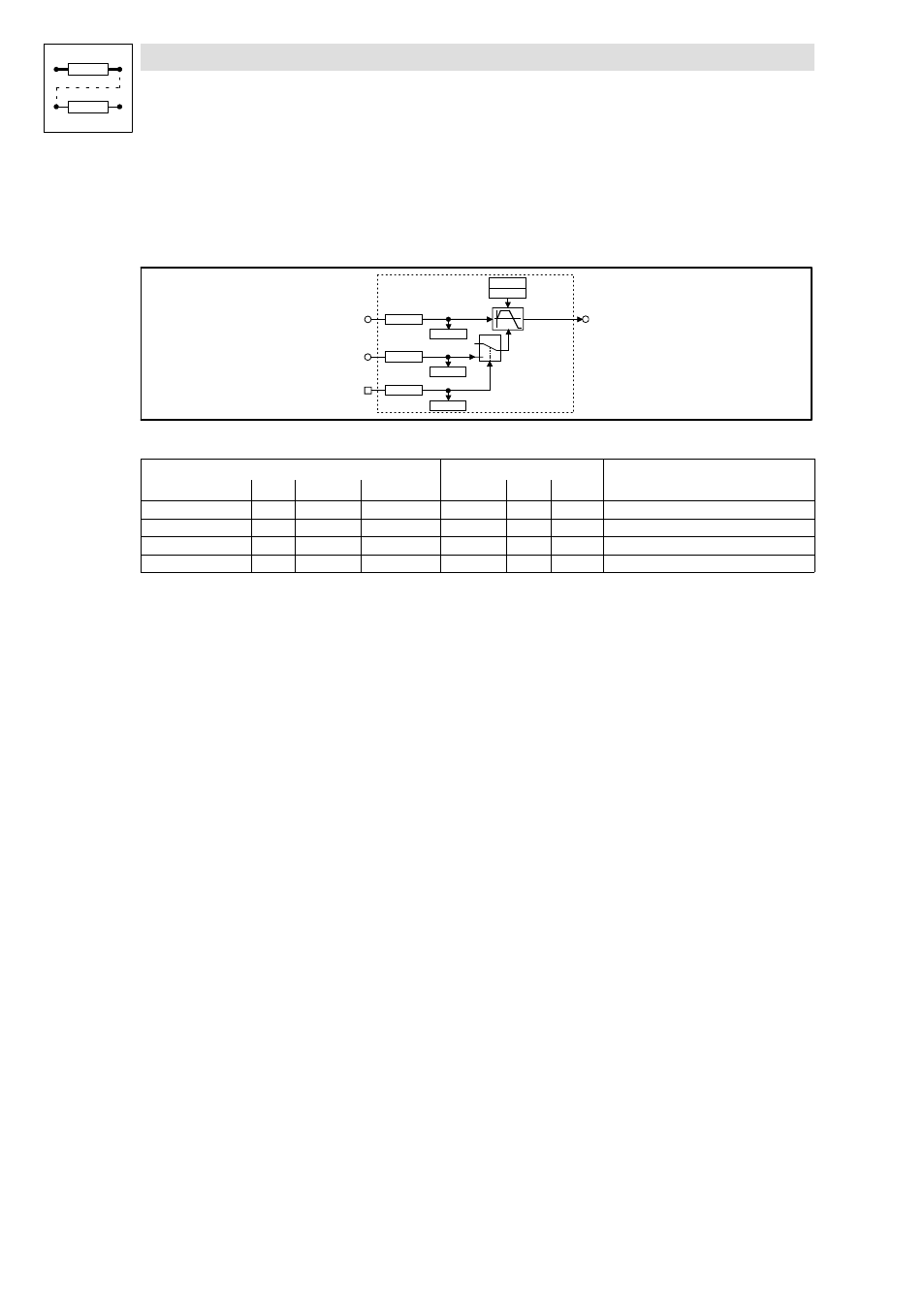

Fig. 3−194 Ramp function generator (RFG1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
RFG1−IN a C0676/1 dec [%] C0673 1 1000 −
RFG1−SET a C0676/2 dec [%] C0674 1 1000 −
RFG1−LOAD d C0677 − C0675 2 1000 −
RFG1−OUT a − − − − − −
Function
l Calculation and setting of the times T
ir
and T
if
l Loading of the ramp function generator
