Function library
Positioning control
3.4.13 Program sets (PS)
3−86
l
EDSVS9332P−EXT DE 2.0
3.4.13.8 Prg. fct. Switch output before positioning"
Purpose
Setting or resetting a digital output signal (POS−PFO), for instance, to control a machine function
before positioning starts.
9300pos014

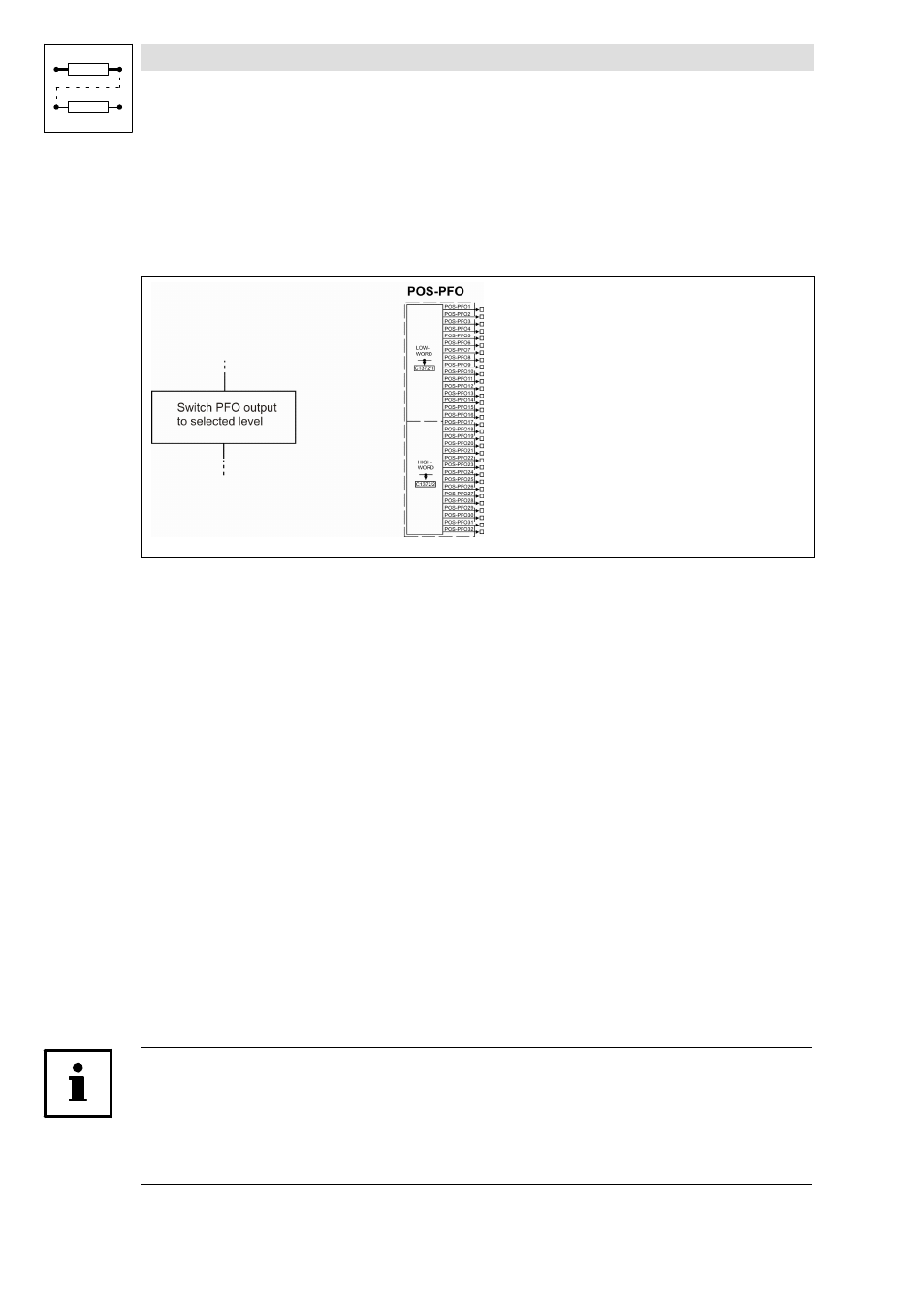

Fig. 3−35 Diagram − Switch output
Function
l Selection of any PFO under C1320/x. It is also possible to switch all PFO at the same time or
in groups of 8.
l Selection of the signal level (setting or resetting) under C1321/x.
l 32 PFO are available (see POS−PFO).
l GDC input: Programming" dialog
l Default setting: not active
3.4.13.9 Prg. fct. Switch output after positioning"
Purpose
Like Switch output before positioning".
Function
l Selection of any PFO under C1322/x. It is also possible to switch all PFO at the same time or
in groups of 8.
l Selection of the signal level (setting or resetting) under C1323/x.
l 32 PFO are available (see POS−PFO).
l GDC input: Programming" dialog
l Default setting: not active
Tip!
If an output is to be set and reset before a positioning process, the output will not be switched if no
positioning has taken place or the target position has been reached in the same cycle. As a remedy
the output can be reset in one of the following PS. The output will then be switched for at least one
cycle.
