Function library
Positioning control
3.4.13 Program sets (PS)
3−81
l
EDSVS9332P−EXT DE 2.0
3.4.13.5 Stand−by operation
Purpose
l Implementation of a Flying saw", with additional function block interconnection (on request).
l Enables the changeover between positioning and another setpoint source, e.g. master
frequency of a main drive.
DFSET
DFSET-NOUT
+
-
DFSET-PSET
DFSET-POUT
+
+
C0253
DFSET-PSET2
C0105
C0908
MCTRL-PHI-SET
MCTRL-N-SET
MCTRL
C0906/1
MCTRL-N/M-SWT
MCTRL-HI-M-LIM
MCTRL-LO-M-LIM
MCTRL-I-SET
MCTRL-I-LOAD
MCTRL-QSP
C0893
C0892
C0899
C0900
C0902
C0901
C0890
C0894
MCTRL-P-ADAPT
C0906/9
C0903
POS-NOUT
POS-N-IN
C1362/4
C1363/4
POS-P-IN
C1364/3 C1365/3
0
1
0
1
POS-POUT
POS-MOUT
0
1 POS-M-IN
C1362/6
C1363/6
Lsoll
Nsoll
POS
POS-STDBY-ACT
9300pos010

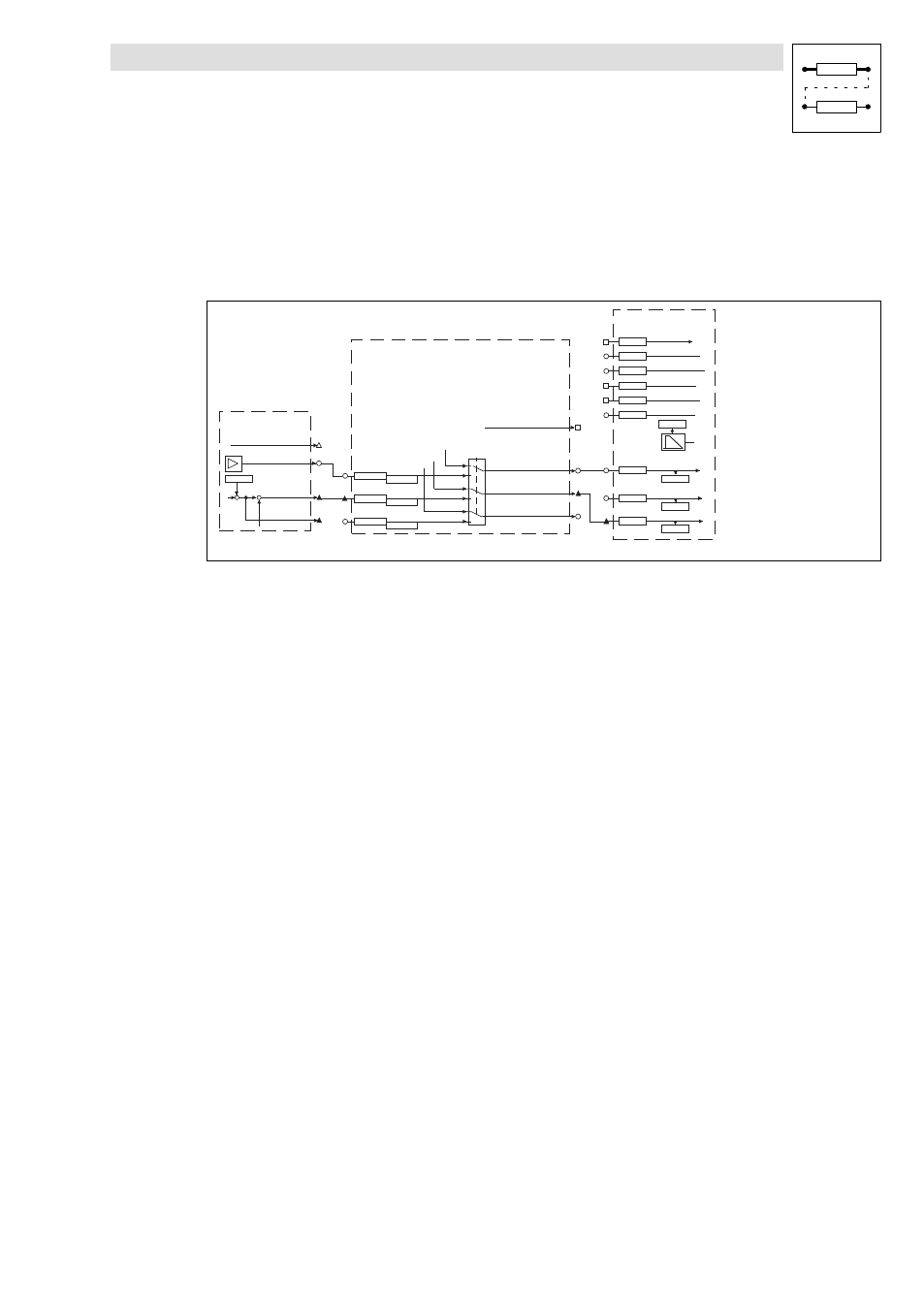

Fig. 3−32 Stand−by operation with selection via digital frequency
Function
l Stand−by operation is only possible during program operation.
l PS mode (C1311): Select 30...34 (stand−by operation and signal source for abort).
l In PS, stand−by operation is executed instead of positioning. As long as stand−by operation is
active, "positioning or special function" in the PS is not completed. The following PS functions
are only processed when stand−by operation is terminated (see diagrams).
l After having started stand−by operation, the drive is accelerated or decelerated to the external
speed setpoint at POS−N−N due to positioning. The profile parameters of the PS apply.
When reaching the speed, the external setpoint inputs (POS−N−IN, POS−P−IN) are used. From
now on, the position setpoint (POS−SETPOS) equals the actual position value (POS−ACTPOS):
W POS−STDBY−ACT = HIGH
