Diagnostics
LED status displays
l
89
EDSMF2178IB EN 3.0
12.2
LED status displays
The LEDs on the front are provided to the communication module for the purpose of fault
diagnostics.

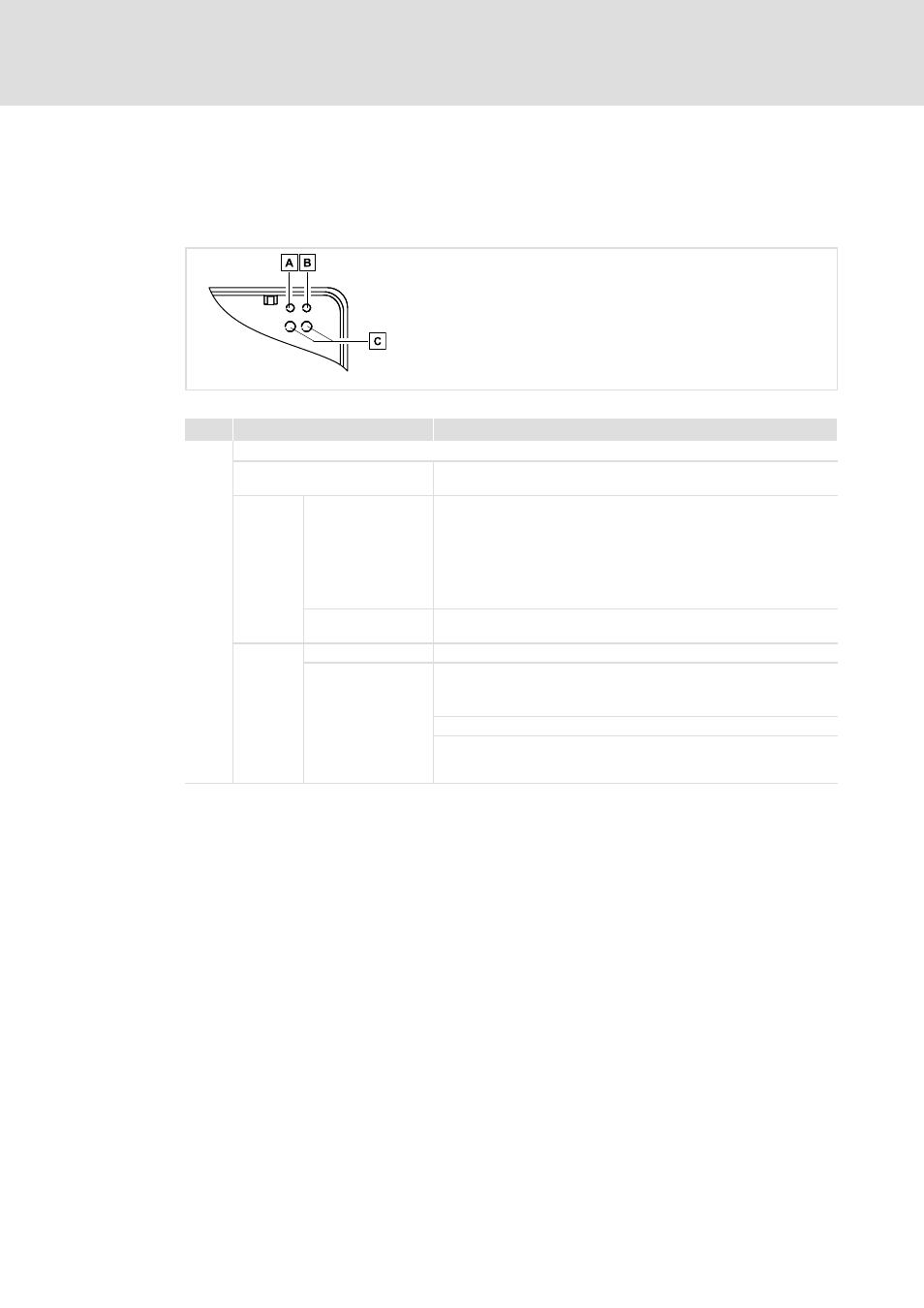

2172CAN000D
Fig. 12−1
LEDs of the communication module
Pos.
Status display (LED)
Description
0
Connection status to standard device, two−colour LED (green/red)
OFF
l
The communication module is not supplied with voltage.
l
The external voltage supply is switched off.
GREEN
Blinking
The communication module is supplied with voltage, but has no
connection to the standard device.
Cause:
The standard device is ...
l
switched off;
l
in the initialisation phase;
l
not available.
Constantly ON
The communication module is supplied with voltage and is
connected to the standard device.
RED
Constantly ON
CANopen operation impossible.
Blinking
Permanently:
l
Parameters are reset to Lenze setting.
l
CANopen operation possible.
1 x blinking:
l
An error occurred while saving a value.
2 x blinking:
l
CANopen operation possible.
l
The node address/baud rate from C1850/C2350 or C1851/C2351
could not be accepted .
