Wax Chamber Icons

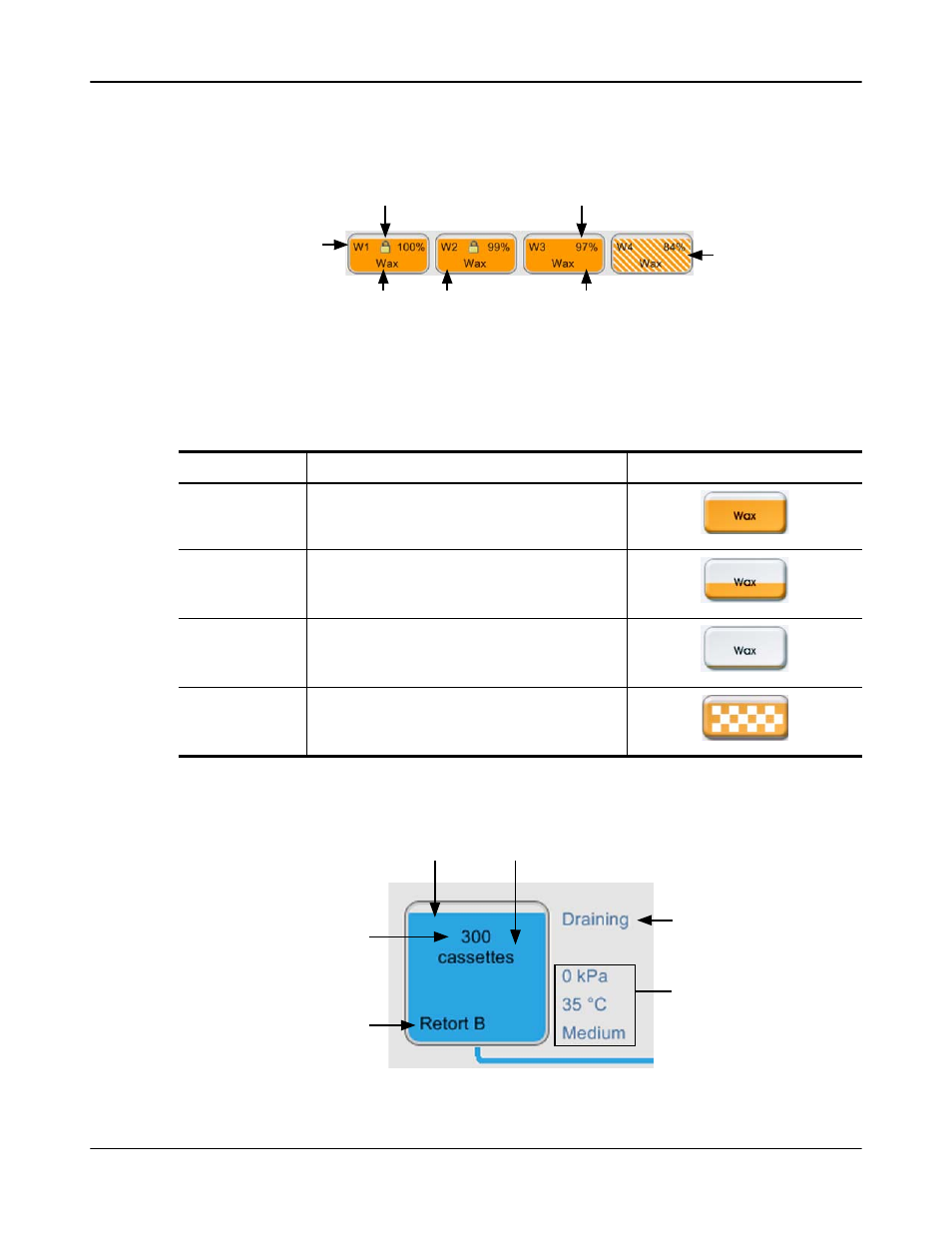

Figure 27. Wax chamber icons on the Status screen
Wax chambers have four possible station states:
Retort Icons
Figure 28. Retort icon on the Status screen
Means
Icon
Full
The chamber has enough wax to fill a retort
to the specified basket level.
Part full
A wax transfer is in progress or has been
abandoned. The wax level is between full and
empty.
Empty
The chamber has been drained to fill a retort.
There is still wax in the chamber.
Not molten
The wax in the chamber has not melted and
is unavailable.
Wax chamber number
Reagent type
(i.e. type of wax)
Color-code orange for
reagent group “Wax”
Hatched coloring
shows wax is out of
threshold
Padlock symbol shows
there is a vacuum in
the chamber
Wax concentration
(may not be visible,
see
Color or other pattern
shows station state
(see below)
The number of cassettes in
the retort
Retort name
Color-coded for reagent group
currently in the retort
Color or other pattern shows
retort state (see below)
Current retort operation (see
below)
Retort pressure, temperature,
and stirrer speed (supervisors
only)
