3.3.1 Status Area
The status area provides a visual guide to the status of the bottles, wax chambers and retorts, as
shown below.
Bottle Icons

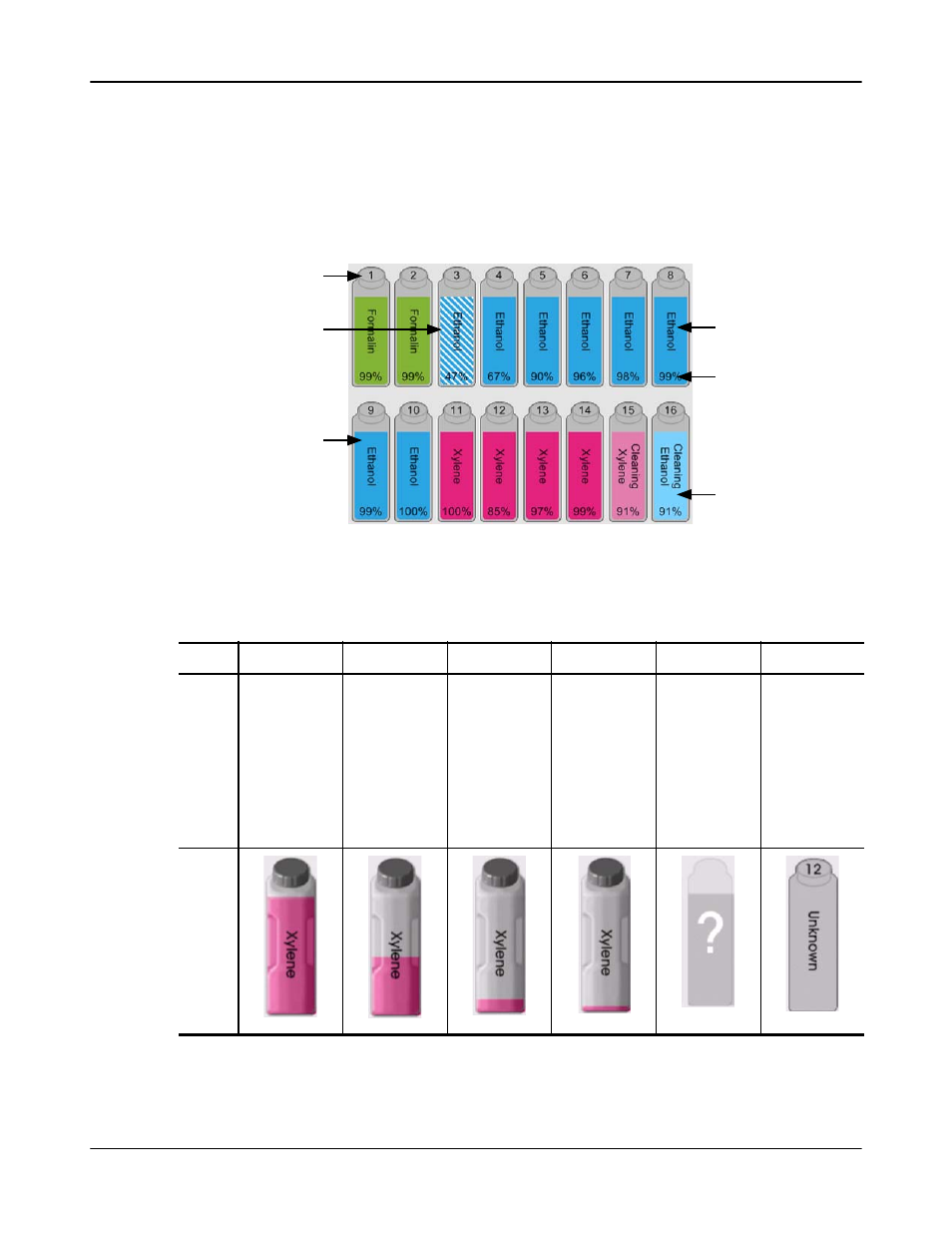

Figure 26. Bottle icons on the Status screen
Bottles have six possible station states:
Full
In use
Empty
Dry
No bottle
Unknown
Means
The bottle
holds suffi-
cient reagent
to fill a retort
at the speci-
fied basket
level.
A reagent
transfer is in
progress or
was aban-
doned. The
reagent level
is between
full and
empty.
The bottle has
been used to
fill a retort.
There is still
reagent in the
bottle.
The bottle has
been com-
pletely
drained leav-
ing only a
small amount
of residue.
The bottle has
been
removed.
A previously
missing bot-
tle has been
replaced.
Enter reagent
and state
details before
using this sta-
tion.
Icon
Bottle number
Reagent type
Color-coded for
reagent group (see
and Stations for color
codes)
Reagent concentration
(may not be visible,
see
Hatched coloring
shows reagent is out of
threshold
Color or other pattern
shows station state
(see below)
