TM
Model 3200 M0241-01
6/11 6-9
KPM II Monitor Operation

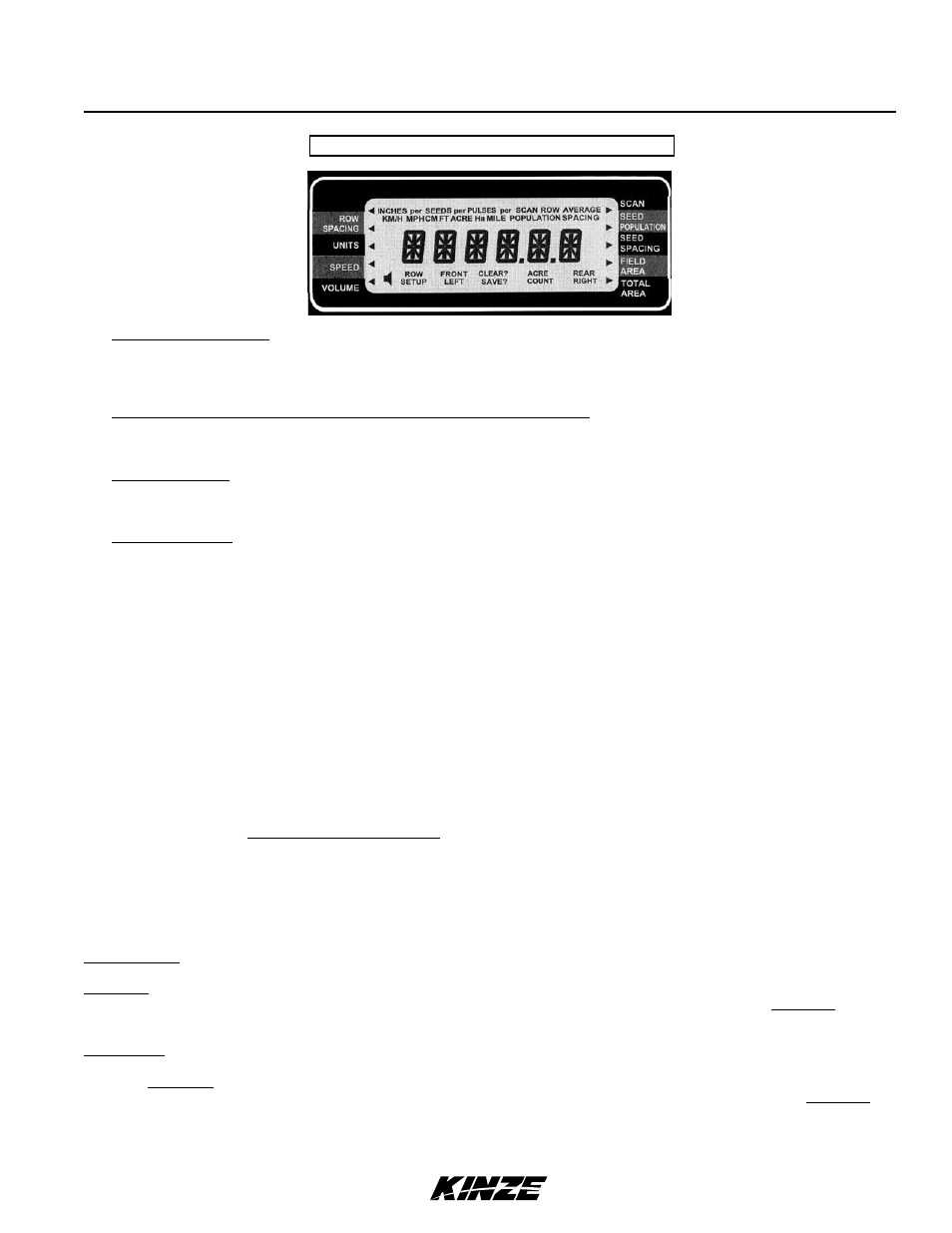

LOWER LCD FUNCTIONS
• UP and DOWN arrow keys sequentially change what is displayed on lower LCD. Pressing UP or DOWN arrow keys move arrow head
icon (on left and right hand side of display) to another item. For example, if arrow icon is pointing to SPEED, ground speed is displayed
on LCD. Pressing UP arrow key moves icon to UNITS. The display changes to display all icons used to represent current (English or
Metric) measurement system.
• Shortcut keys SPEED, SEED POPULATION/SPACING and AREA FIELD/TOTAL allow direct access to their respective displays. For
example, no matter what is currently being displayed on lower LCD, pressing SPEED key will change display to current speed. Pressing
SEED POPULATION/SPACING or AREA FIELD/TOTAL keys will alternate between the two functions assigned to those keys.
• Pressing SCAN key while displaying seed spacing or population causes a sequential display of each individual row. Pressing SCAN
key a second time freezes display on currently displayed row. UP or DOWN arrow keys can be used to change currently displayed row.
Pressing SCAN key restarts automatic advancing of scan function.
• Pressing SCAN key while displaying speed causes a sequential display of speed, average planter population, and average seed
spacing. Pressing SCAN key a second time freezes display on currently displayed reading.
ROW SPACING
Press arrow keys to ROW SPACING to display current spacing between rows in inches or centimeters. ROW SPACING icons turn on,
displaying a 3 digit, one decimal place format. In area count mode, this function displays implement width in feet or meters, using a 3 digit,
no decimal places format.
UNITS
Press arrow keys to UNITS to display all icons from the currently selected English or Metric measurement system. For the English system,
icons are: INCH, MPH, FT, ACRE and MILE. For Metric system, icons are: CM, KM/H and Ha.
SPEED
Press SPEED key to display current speed in MPH or KM/H, using a 3 digit, one decimal place format.
VOLUME
Press arrow keys to VOLUME to display the presently selected audible alarm volume. The SPEAKER icon turns on.
SCAN
Press SCAN key to display seed spacing or seed population (see Steps 1-3 following) of each individual row. (1)Pressing SCAN key while
displaying any other function will cause monitor to sequentially display speed, average seed population and average seed spacing. (2)
Pressing SCAN key a second time will freeze display. (3)Pressing SCAN key a third time restarts sequential display. UP and DOWN arrow
keys can be used to change current display.
SEED POPULATION/SEED SPACING
Each SEED POP/SPACING key press alternates between seed population and seed spacing.
Seed population displays average number of seeds or the row average number of seeds per acre or seeds per hectare for all the active rows.
The average is displayed using a 6 digits, no decimal places format. The AVERAGE POPULATION icon will turn on. When in scan mode, the
scan arrow and SCAN ROW POPULATION will appear. The ROW number icon and current row will be displayed on left and population will
be displayed on right in 1000’s using 3 digits, one decimal place (e.g. 32.9 means 32,900). When in scan freeze mode, scan arrow and ROW
POPULATION will turn on (scan arrow may be flashing). The UP and DOWN keys may be used to lock on desired row.
Seed spacing displays average distance or the row average distance between seeds for all active rows in inches per seed or centimeters
per seed using a 3 digit, one decimal place format. When average is displayed the AVERAGE SPACING icons are turned on. When in scan
mode, the scan arrow and SCAN ROW SPACING icons will appear. The ROW number icon and current row will be displayed on left and
spacing will be displayed on right. The display will sequence to the next row every 5 seconds. When in scan freeze mode, the scan arrow and
SPACING will turn on (scan arrow may be flashing). The UP and DOWN keys may be used to lock on desired row.
