KPM II Monitor Operation

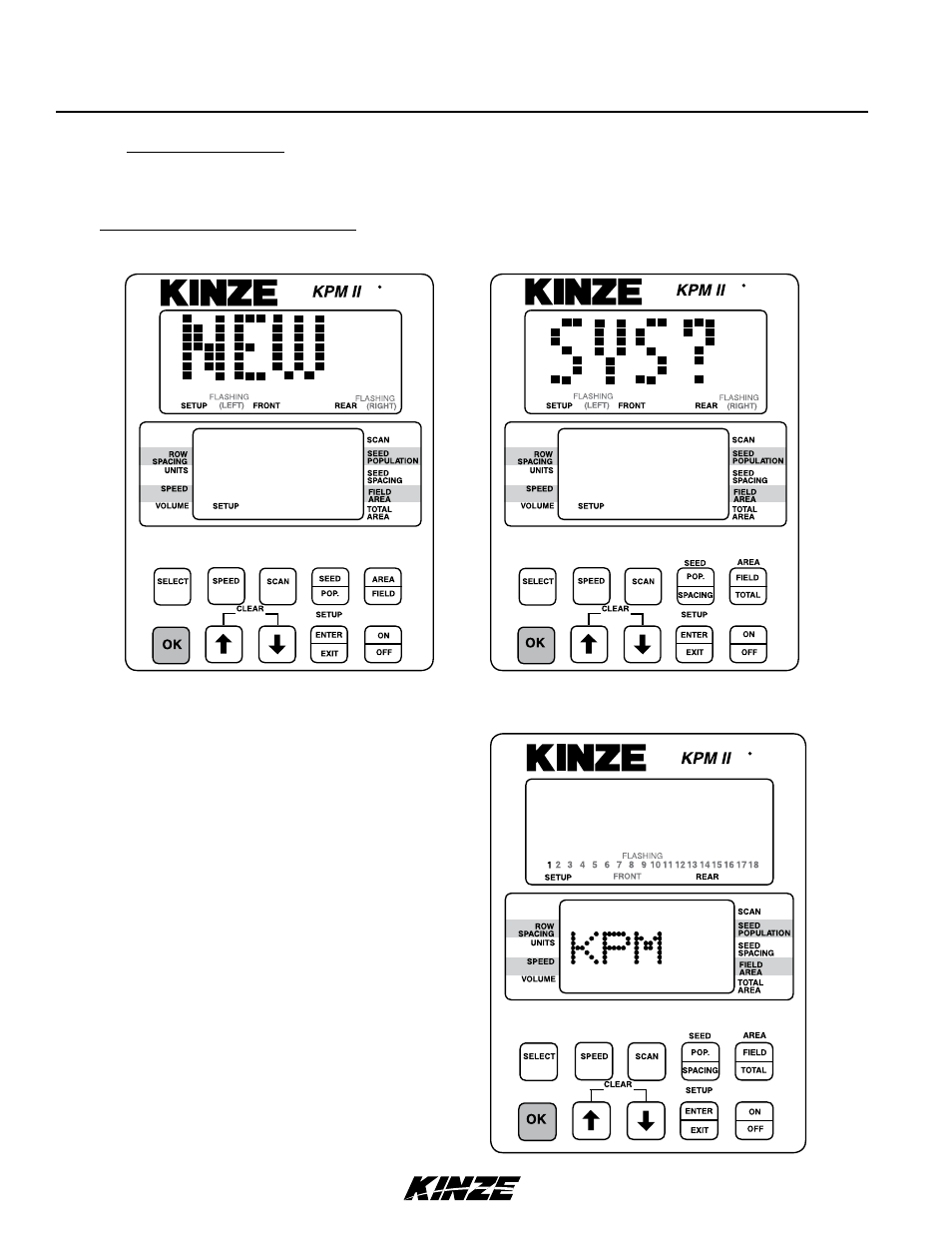

STEP 4 Press and hold the OK key to confirm selection. The upper display will alternate between “NEW” and “SYS?”.
The alarm will sound four short beeps followed by one long beep. At this point your selection has been saved and row numbers
will appear flashing on the upper display of the KPM II.
NOTE: Illustrated using rear/front configuration. The KPM II Stack-Mode console shows LEFT in the left/right configuration, REAR
in the rear/front configuration and FRONT LEFT/REAR LEFT in the four sections configuration.
® ®
STEP 5 (If Applicable) Connect SMM console into junction
Y-harness which was installed between the KPM II
Stack-Mode console and the primary harness. The
SMM console will show a lighted screen and KPM
will show on the lower LCD.
®
